ACM121 AC Motor Peristaltic Pump Large Flow Rate

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

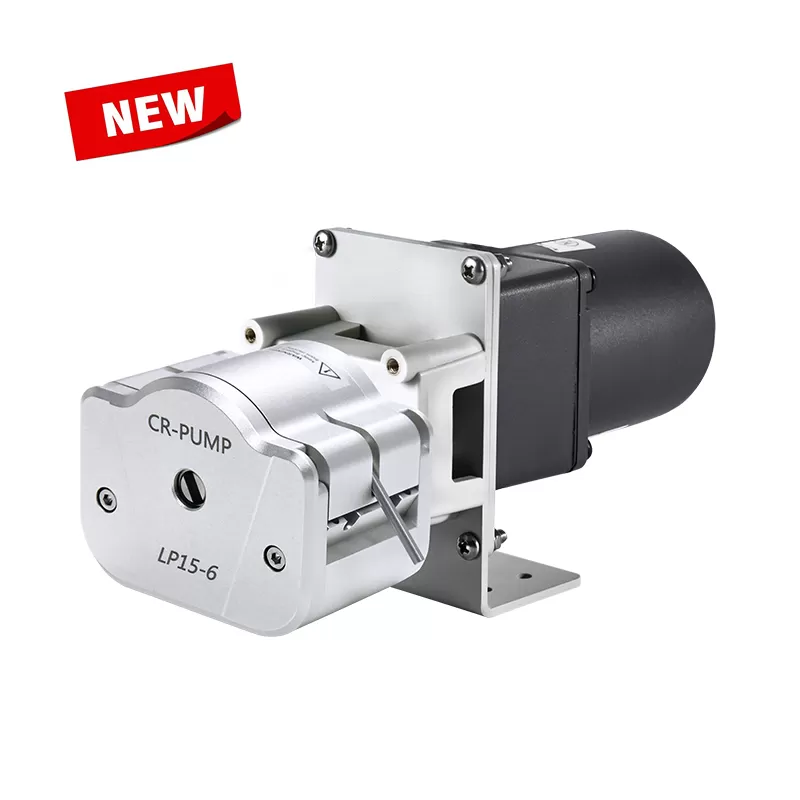

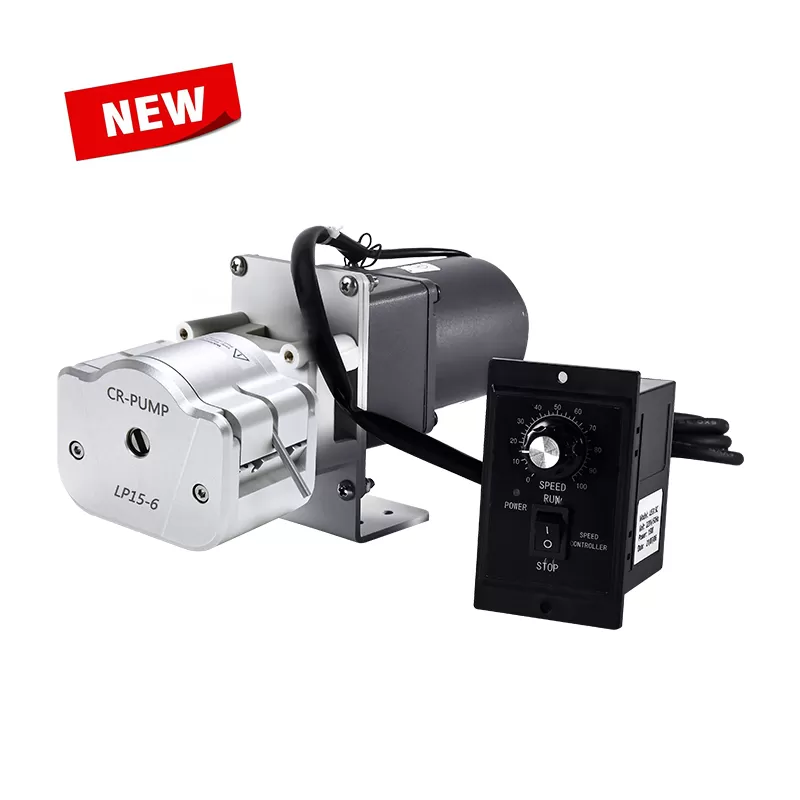

LP15-6 series provides large flow packaging. The shell is made of aluminum alloy, which is high in strength and corrosion-resistant. It adopts a multi-roller design and can be equipped with a "Y" type hose to effectively reduce pulsation, make the transmission more stable, and adapt to hoses of different wall thicknesses. It has a wide flow range and is more practical.

Pump head	LP15-6
Channels	2
Rollers	6
Tube	13#、14#、19#、16#、25#、17#、18#
Max flow	3420mL/min
Max speed	450rpm
Matching motor	60AC motor
Motor Power	15W
Motor voltage	AC220V
Motor current	0.18A

Pump head	Tube	ID*wall thickness(mm)	Max flow(mL/min)	Max speed(rpm)
LP15-6	13#	0.8*1.6	63	450
	14#	1.6*1.6	243	450
	19#	2.4*1.6	459	450
	16#	3.1*1.6	738	450
	25#	4.8*1.6	1530	450
	17#	6.4*1.6	2610	450
	18#	7.9*1.6	3420	450

Test Conditions：

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not greater than 80%, altitude is not greater than 1500 metres above sea level

2. The test is measured using a straight-through pipe with a suction range of 0.5 m, a head of no more than 0.5 m, and a total pipe length of no more than 1.5 m (inlet end + outlet end + test end)

The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water.The data is for reference only, please refer to the actual situation.
