OEM Small Peristaltic Pump Integrated Into Bottle Filling Machine

Nowadays, with the development of industrial technology, automation has become more and more important in the manufacturing industry. Fully automatic quantitative liquid filling machines have made the batch production of liquid products extremely efficient, and the production efficiency has increased significantly.

Liquid filling machines can accurately fill liquid products into containers, such as vials, reagent bottles and other containers. Its key components mainly include liquid supply system, metering system, filling system and control system.

The requirements for general liquid filling equipment are as follows:

1. During the transmission process of the drug, it is necessary to ensure that there is no pollution throughout the process, and strict requirements on sealing.

2. High accuracy liquid filling volume is required to ensure that batch filling can be carried out for a long time.

3. High cost performance, small-scale batch filling, more cautious consideration of cost.

4. Simple and convenient maintenance, minimizes the impact on production efficiency.

OEM peristaltic pumps are the best support for liquid filling machines, which are composed of high-precision stepper motors DC motors 12v 24v. Small peristaltic pumps are integrated into liquid bottle filling machines to achieve reliable performance on middle or micro liquid volumes. One-touch installation and small footprint make them very popular as compact space-saving instruments.

The Advantages of OEM Peristaltic pump Integrated Into Bottle Filling Machine

1. Reduced Contamination Risk

When peristaltic pump works, the liquid will only contact the inner wall of the tube, ensuring that oral solutions, solvents and other products are free of pollution.

2. Precision and Accuracy & Gentle Handling of Fluids

The peristaltic pump is accurate in small-dose liquid transferring and offers a stable flow rate for a long time. Because of its low shear force transmission characteristics, the shear-sensitive liquid will not be affected.

3. Versatile Applications

OEM peristaltic pumps can handle a wide range of liquids, including corrosive, viscous, and particulate-laden substances. This versatility makes them suitable for various filling applications across different sectors.

4. Flexible Design

OEM pumps can be integrated into existing filling systems with relative ease. Their compact size and customizable configurations allow them to fit into a variety of machine designs. Good supporting performance. The peristaltic pump can be highly integrated into the equipment according to needs, and the equipment can control the peristaltic pump.

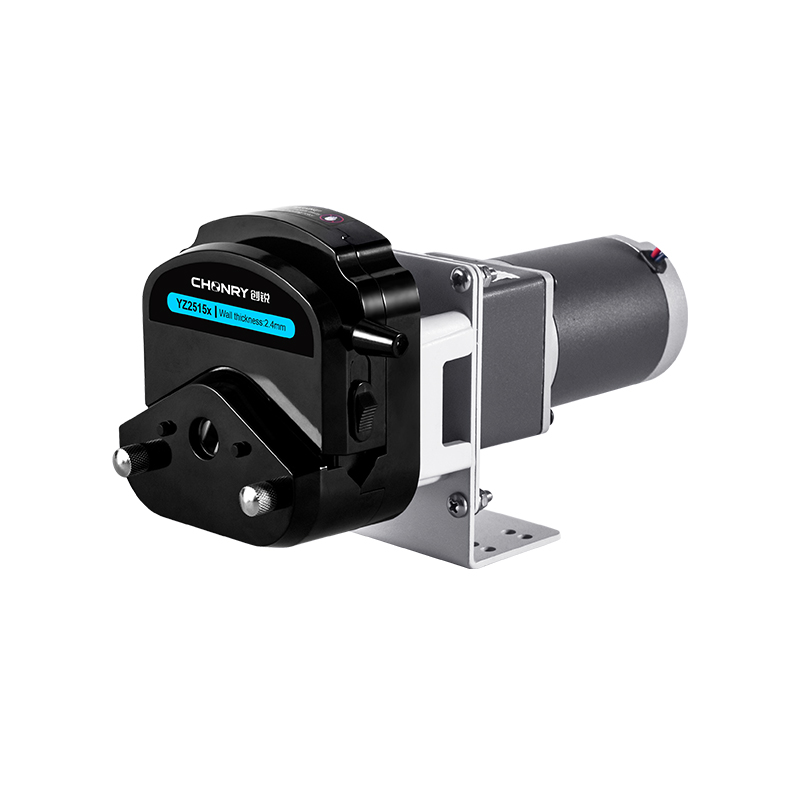

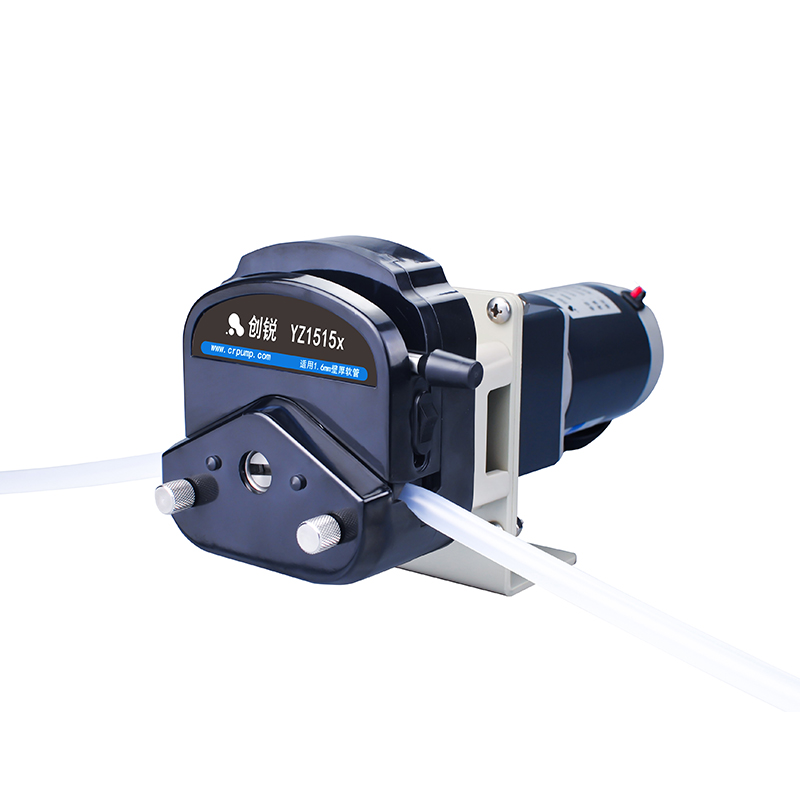

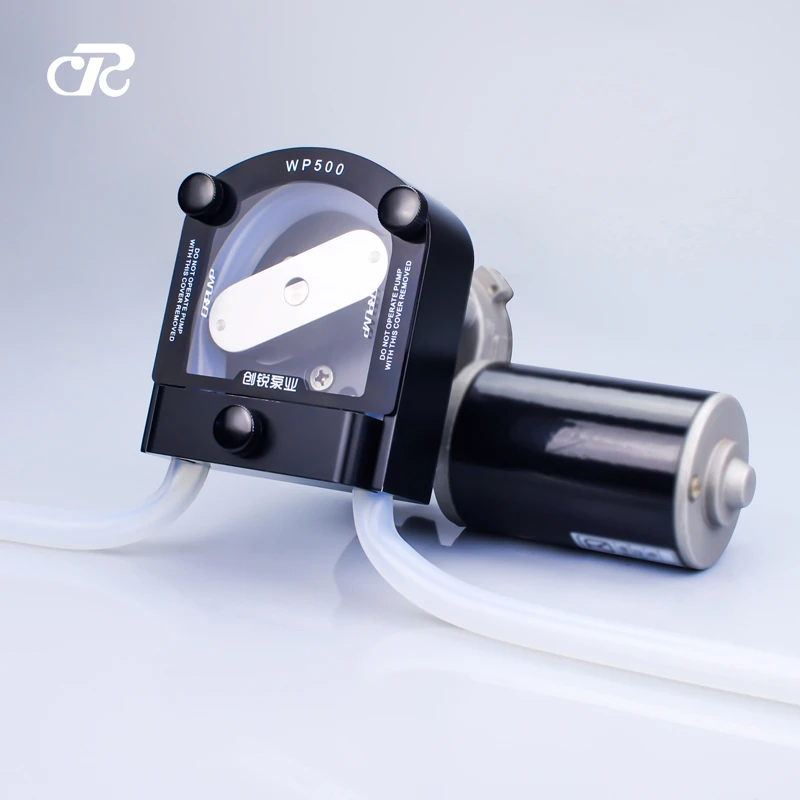

OEM201/YZ1515X Peristaltic Pump DC Motor 3 Rollers   Flow Rate: 2280ml/min Speed:30-600rpm The OEM201 peristaltic pump adopts the YZ1515X pump head. Support 12v 24v DC motor. Liquid bottle filling machine supporting pump, milk  filling machine, coffee machine.	OEM202/YZ2515X Small Peristaltic Dosing Pump 1L 12v 24v Dosing Pump Flow Rate: 1740ml/min Speed: 600rpm OEM202 small peristaltic pump is equipped with the YZ2515x pump head, which is simple to operate and easy to load and unload the hose. The small peristaltic pumps are compact design, easily integrated into machines, instruments or cabinets. Ideal for the liquid transfer and dispensing.	OEM210/WP500 Large Flow Small Peristaltic Pump 3.4L Liquid Filling Pump Flow Rate: 3400ml/min Speed: 265rpm - High Flow DC motor Pump - 12v 24v Peristaltic OEM Peristaltic Dosing - Used for Pump For Milk Vending, tomato sauce bottle filling machine, beer brewing .
