BG600FC-S Large Flow Intelligent Distribution Peristaltic Pump 12000ml/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

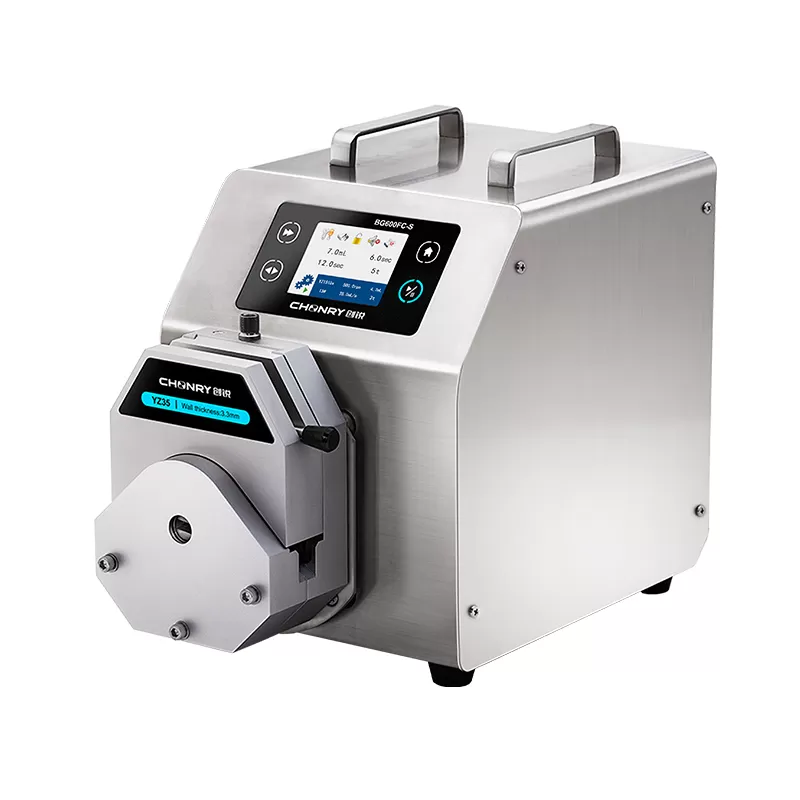

BG600FC-S is a large flow intelligently controlled distribution peristaltic pump. Adopting a 3.5-inch color LCD touch screen display. The operation is simple and intuitive. It has two working modes: transmission and distribution. It can be intelligently set according to different working needs. The motor has strong torque and is suitable for YZ35, YZ35-13L and YZ35LS pump heads. It can be used for data storage, supports multiple remote control modes such as RS485MODBUS.

Advantages:

Multiple modes

It has two working modes of transmission and distribution and can perform repeated timing and quantitative filling.

LCD touchscreen

3.5-inch color LCD, Chinese and English display, Touch screen control.

Adapt to multiple pump heads

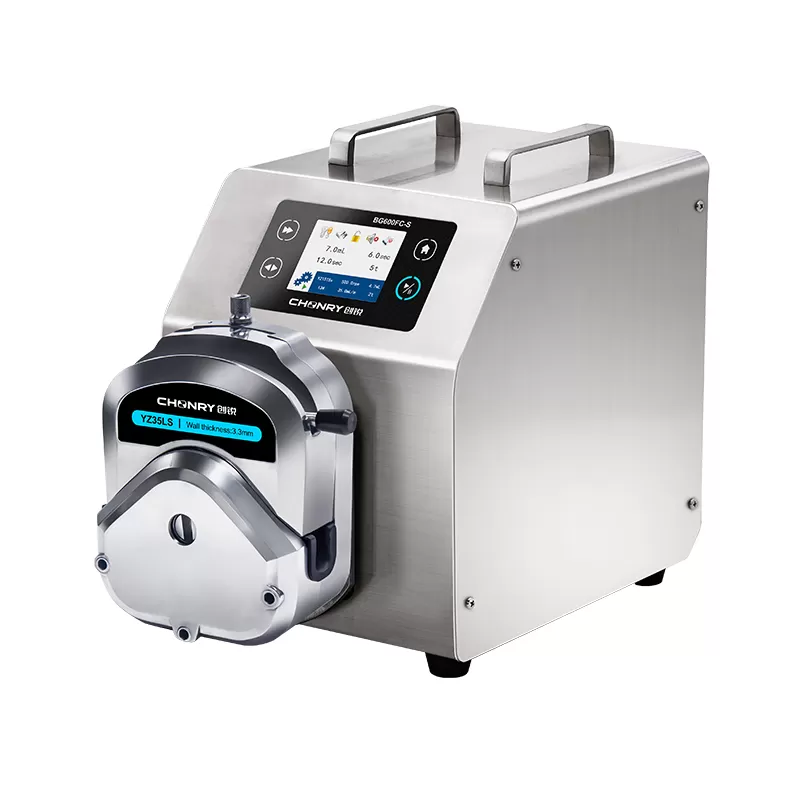

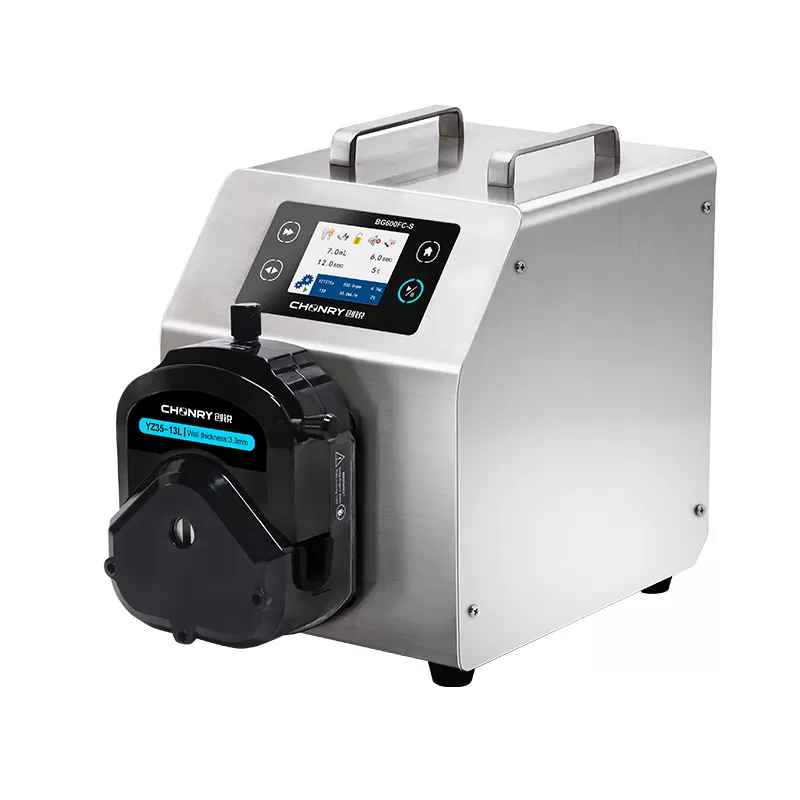

YZ35, YZ35-13L, and YZ35LS pump heads can be installed, and pump heads can be cascaded.

Suction function

The speed angle of reverse operation can be customized to prevent liquid dripping.

Data storage

8 sets of data can be stored for users

Support external control

Support RS485MODBUS communication protocol, analog control, foot switch control.

Applications:

BG600FC-S is a high-flow peristaltic pump used in mineral processing, photovoltaic, chemical environmental protection, pharmaceutical equipment, and admixture matching.

Technical Parameter
Drive model	BG600FC-S
Max speed	600rpm (reversible)
Speed resolution	0.1rpm
Max flow	12000mL/min
Speed mode	Touch screen adjustment
Display method	Color LCD display (Chinese and English optional)
Suction angle	10°-720° (0° means no back suction)
Suction speed	10-300rpm
Power supply	AC220±10% (standard) or AC110V±10% (optional)
Power	＜400W
External control interface	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.
Drive size	340X238X325.5 mm
Protection class	IP31 (indoor use, avoid prolonged exposure to UV rays)
Ambient temperature	0-40℃

Pump head/hose flow parameter table:

Pump Head	Hose	ID（mm）	Wall Thickness（mm）	Max Flow(ml/min)	Max Speed(rpm)
YZ35	73#	9.6	3.3	7400	600
YZ35	82#	12.7	3.3	12000
YZ35-13L	73#	9.6	3.3	7400
YZ35-13L	82#	12.7	3.3	12000
YZ35LS	73#	9.6	3.3	7400
YZ35LS	82#	12.7	3.3	12000

Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data test environment for normal temperature and pressure, the test fluid is water, the data is for reference only, please prevail in practice.

For specific needs, please consult Chonry Company.

BG600FC-S Peristaltic Pump Brochure

BG600FC-S Pump Head/Tube Flow Parameter Table
