SG600FC Intelligent Distribution Peristaltic Pump 12000mL/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

SG600FC is an intelligent distribution peristaltic pump. It adopts a 3.5-inch color LCD touchscreen display. The operation is simple and intuitive. It has two working modes of transmission and distribution. It can be intelligently set according to different work requirements. The motor torque is strong and is suitable for YZ35, YZ35-13L and YZ35LS pump heads. It can store data and support various remote control modes such as RS485/MODBUS. Accepted customized services.

Features：

Multiple modes： It has two working modes of transmission and distribution and can perform repeated timing and quantitative filling.

Suction function： The speed angle of reverse operation can be customized to prevent liquid from dripping.

LCD touch： 3.5-inch color LCD, Chinese and English display, touch screen control.

Data storage： 8 sets of data can be stored for users.

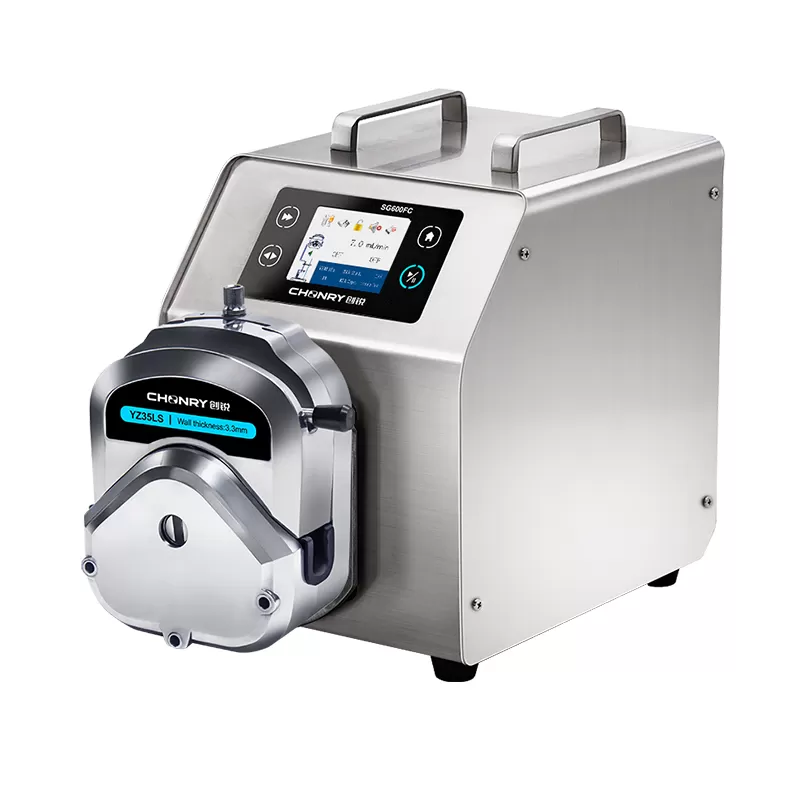

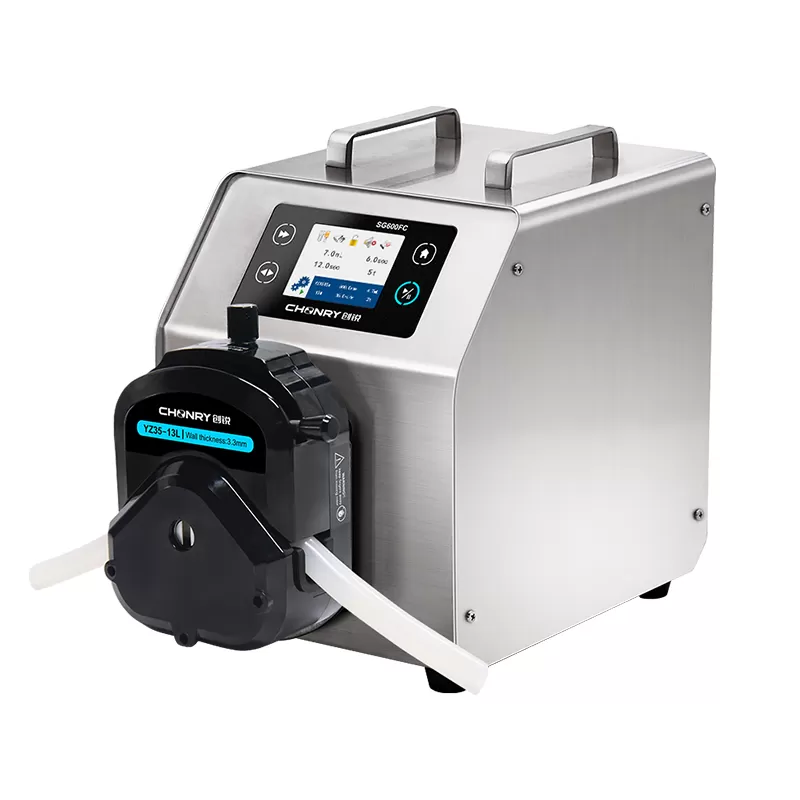

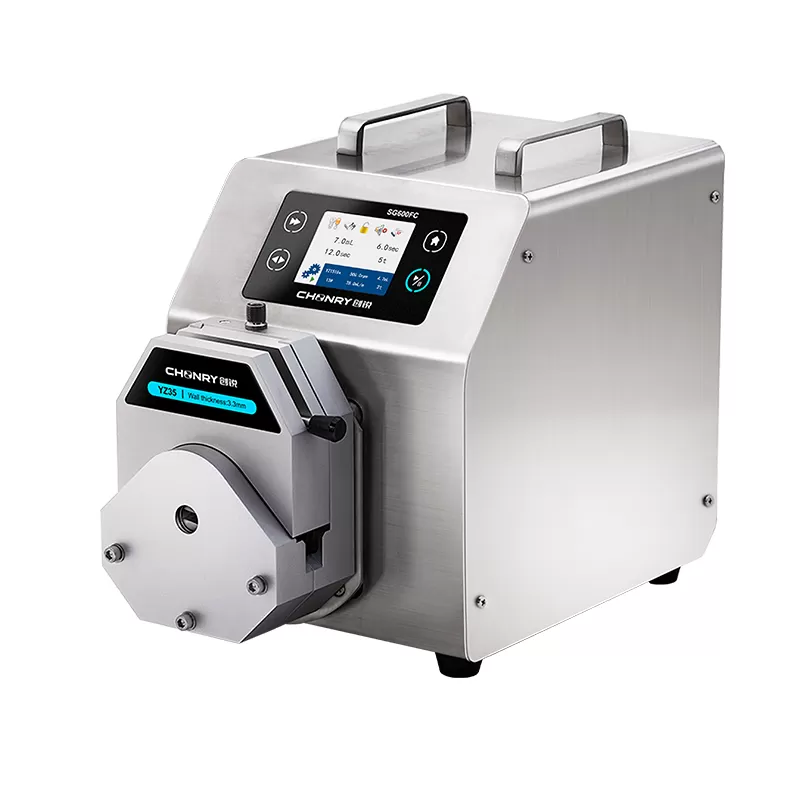

Adapt to multiple pump heads： YZ35, YZ35-13L and YZ35LS pump heads can be installed, and the pump heads can be cascaded.

Support external control： Support RS485/MODBUS communication protocol, analog control, foot switch control.

Drive model: SG600FC

Max Speed: 600rpm (reversible)

Speed resolution: 0.1rpm

Speed mode: Touch screen adjustment

Display method: Color LCD display (Chinese and English optional)

Suction angle: 10°-720° (0° means no back suction)

Suction speed: 10-300rpm

Max flow: 12000mL/min

Power supply:AC220V±10% (standard) or AC110V±10% (optional)

Power: ＜400W

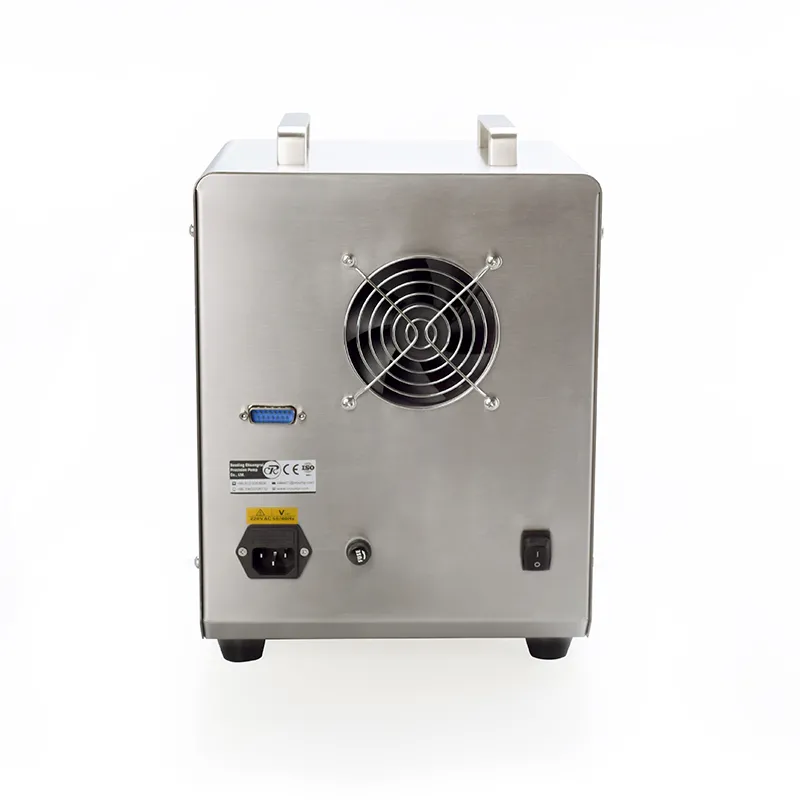

External control interface: DB-15

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive size: 233X325X427.5(mm)

Protection class: IP31 (indoor use, avoid prolonged exposure to UV rays)

Pump Head	Model	Hose	ID（mm）	Wall Thickness（mm）	Max Flow(ml/min)	Max Speed(rpm)
YZ35	SG600FC	73#	9.6	3.3	7400	600
YZ35	SG600FC	82#	12.7	3.3	12000	600
YZ35-13L	SG600FC	73#	9.6	3.3	7400	600
YZ35-13L	SG600FC	82#	12.7	3.3	12000	600
YZ35LS	SG600FC	73#	9.6	3.3	7400	600
YZ35LS	SG600FC	82#	12.7	3.3	12000	600

SG600FC Peristaltic Pump Brochure SG600FC is an intelligent distribution peristaltic pump. It adopts a 3.5-inch color LCD touch screen display. The operation is simple and intuitive.

SG600FC Pump Head/Tube Flow Parameter Table 3.5-inch color LCD, Chinese and English display, touch screen control

How can the flow rate of the peristaltic pump be adjusted using a foot pedal switch?
