SG600LC Multichannel Touchscreen Peristaltic Pump 12000mL/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

SG600LC is a high-flow multichannel peristaltic pump. It is controlled by a 3.5-inch color LCD touch screen, with a Chinese and English operation interface, with flow calibration function. Real-time display of various operating parameters on the screen, easy to use, and provides user data storage. Fast filling, to meet different work requirements, bidirectional high torque, install YZ35, YZ35-13L and YZ35LS pump heads. The SG600LC high flow peristaltic pumps can cascade multiple pump heads and perform liquid volume calibration. Support RS485/MODBUS communication protocol, provide a variety of external control methods.

Specification

3.5-inch color LCD, Chinese and English display, touch screen control. Simple display.

After setting the target flow, input the actual flow, and the system will automatically calibrate.

The speed angle of reverse operation can be customized to prevent liquid dripping.

Transmission mode, timing mode, quantitative mode, timing quantitative mode.

8 sets of data can be stored for users.

Support RS485/MODBUS communication protocol, analog control, foot switch control.

Application

Used in mining, metallurgy, environmental engineering, chemical industry, water treatment and other fields.

Drive model	SG600LC
Max Speed	600rpm (reversible)
Max flow	12000mL/min
Speed resolution	0.1rpm
Speed mode	Touch screen adjustment
Display method	Color LCD display (Chinese and English optional)
Suction angle	10°-720° (0° means no back suction)
Suction speed	10-300rpm
Power supply	AC220V±10% (standard) or AC110V±10% (optional)
Power	＜400W
External control interface	DB-15
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive size	233X325X427.5(mm)
Protection class	IP31 (indoor use, avoid prolonged exposure to UV rays)

Pump Head	Model	Hose	ID（mm）	Wall Thickness（mm）	Max Flow(ml/min)	Max Speed(rpm)

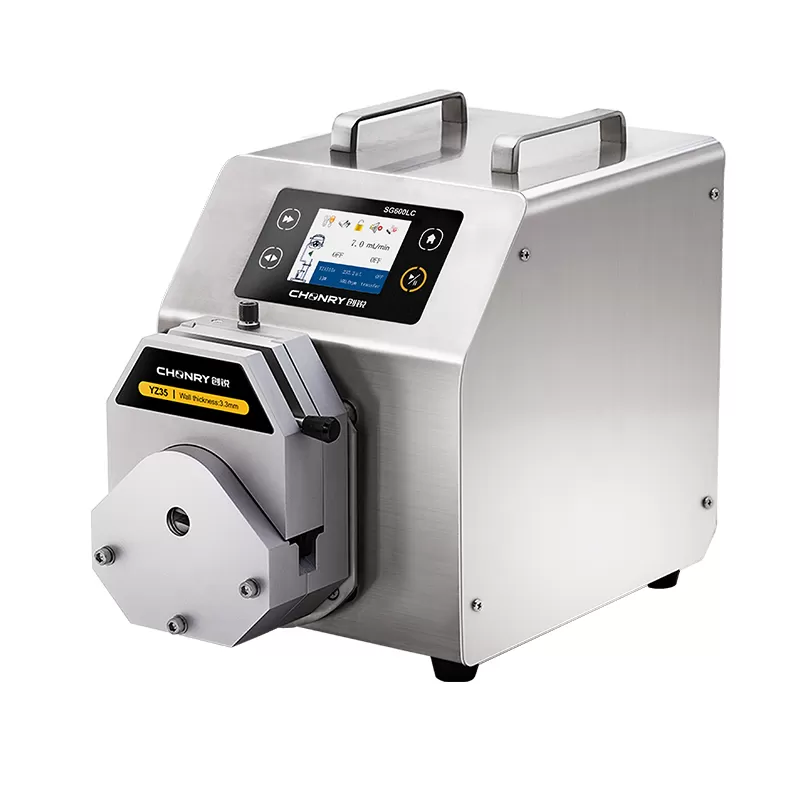

YZ35	SG600LC	73#	9.6	3.3	7400	600
YZ35	SG600LC	82#	12.7	3.3	12000	600

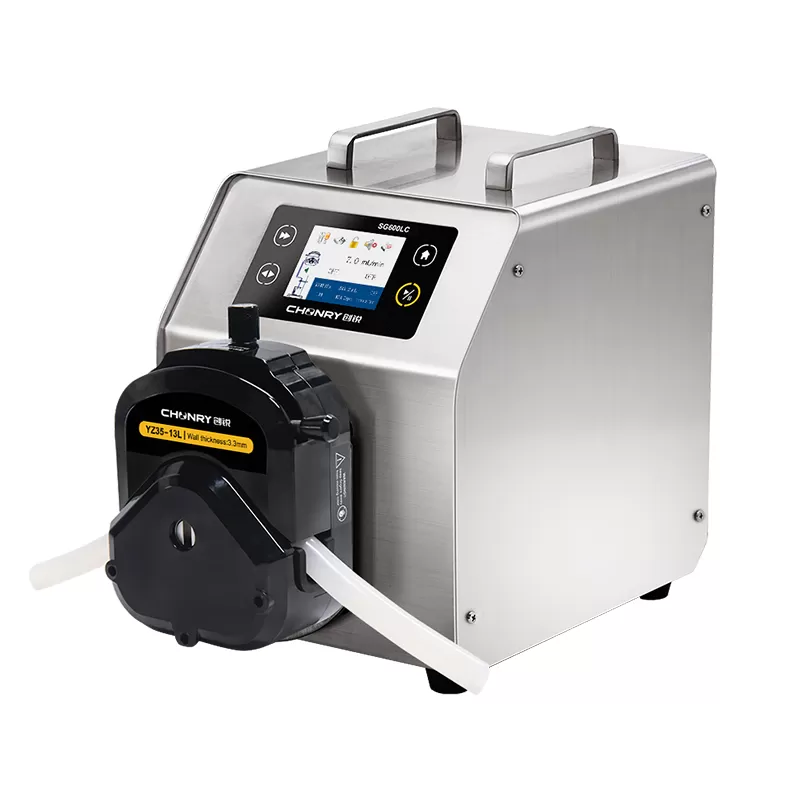

YZ35-13L	SG600LC	73#	9.6	3.3	7400	600
YZ35-13L	SG600LC	82#	12.7	3.3	12000	600

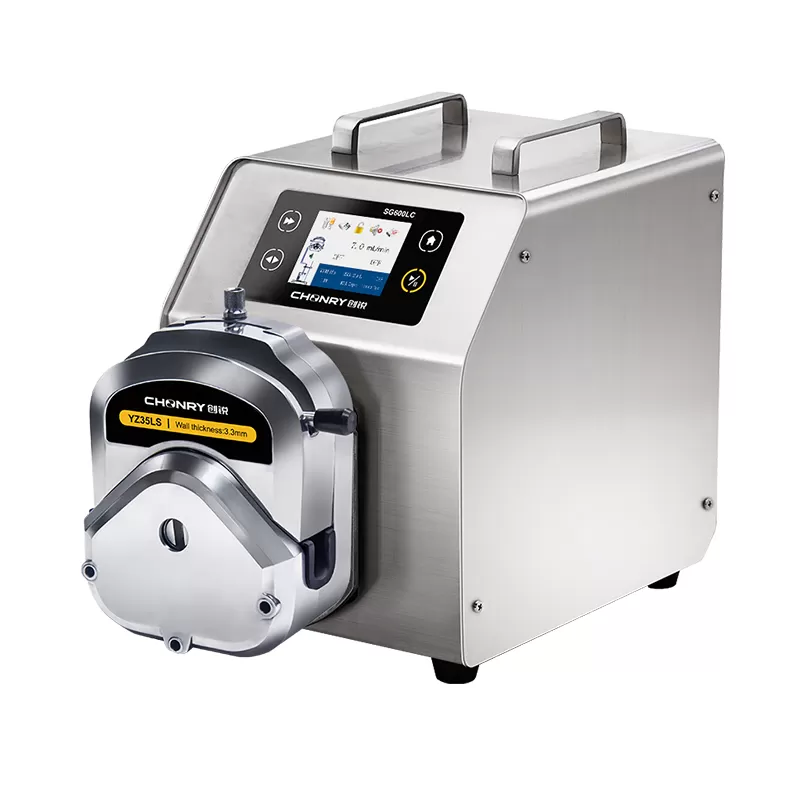

YZ35LS	SG600LC	73#	9.6	3.3	7400	600
YZ35LS	SG600LC	82#	12.7	3.3	12000	600

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

SG600LC Peristaltic Pump Brochure SG600LC is a high-flow intelligent flow peristaltic pump. It is controlled by a 3.5-inch color LCD touch screen, with a Chinese and English operation interface

SG600LC Pump Head/Tube Flow Parameter Table After setting the target flow, input the actual flow, and the system will automatically calibrate.
