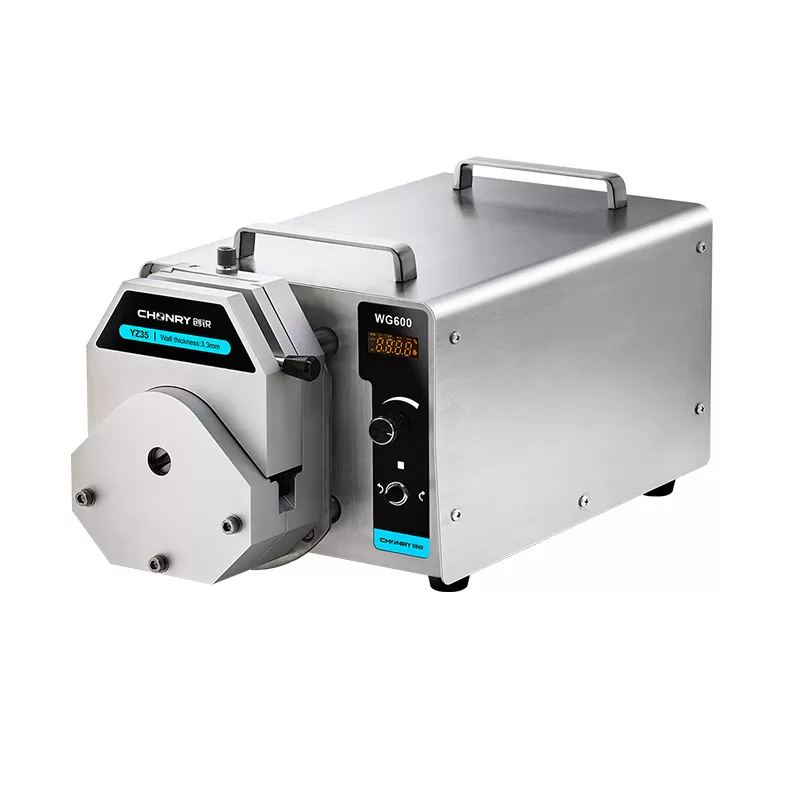

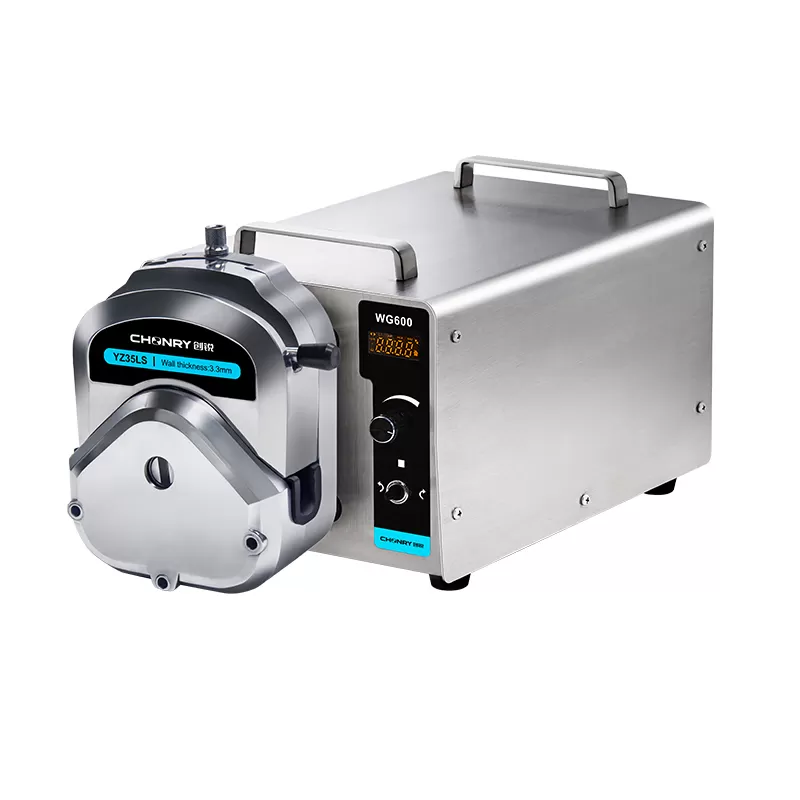

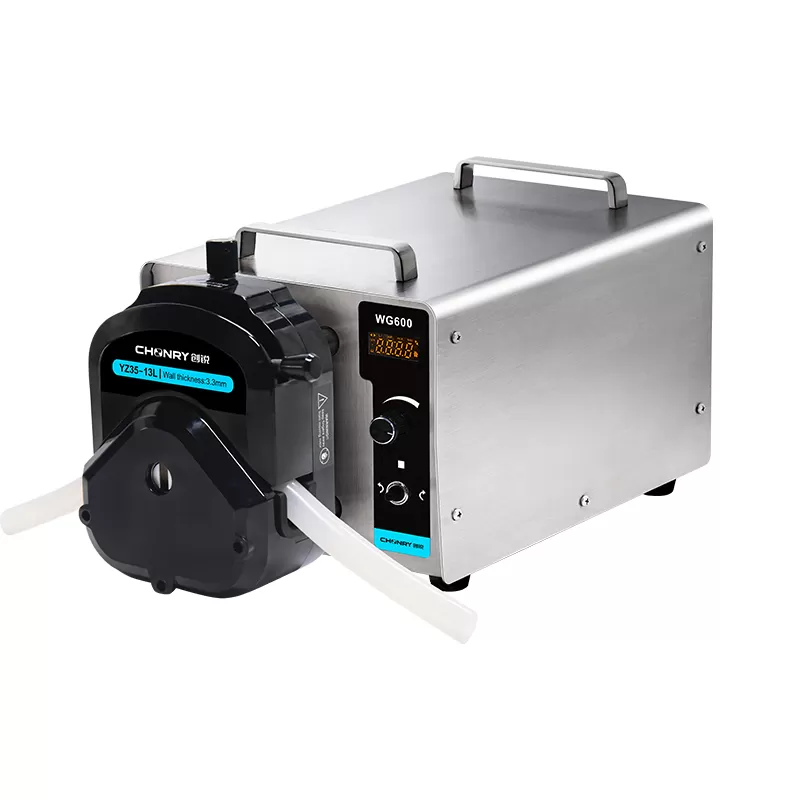

WG600 high flow peristaltic pump max flow rate 12L/min. Large flow industrial peristaltic pump. It uses a 4-digit LED to display the current flow and speed. And It adopts a digital knob adjustment flow rate. High torque in both directions. It can be installed with YZ35, YZ35-13L, and YZ35LS pump heads. WG600 peristaltic pump can perform liquid volume calibration and supports RS485MODBUS communication protocol. Simple and convenient to operate.

Advantages:

Easy to operate

Using a 4-digit LED to display speed and flow, knob operation, is simple and intuitive.

Strong torque

Two-way high torque, support multiple pump heads cascade, meet different flow transmissions.

Flow calibration

After setting the target flow, input the actual flow value, and the system will automatically perform flow correction.

Suction function

The pump can be customized to reverse operation after shutdown to prevent liquid dripping.

External control function

Support RS485MODBUS communication protocol, the protocol can also be customized according to customer needs.

Power off save

Can automatically save the control parameters when the last power fails.

Applications:

Used in biopharmaceutical, chemical, photovoltaic, pharmaceutical, construction, and other fields.

WG600 High Flow Peristaltic Pump Liquid Delivery

Technical Parameter
Drive model	WG600 High Flow Peristaltic Pump Liquid Delivery
Max speed	600rpm (reversible)
Speed resolution	0.1rpm
Max flow	12000mL/min
Speed mode	Digital knob to adjust the speed

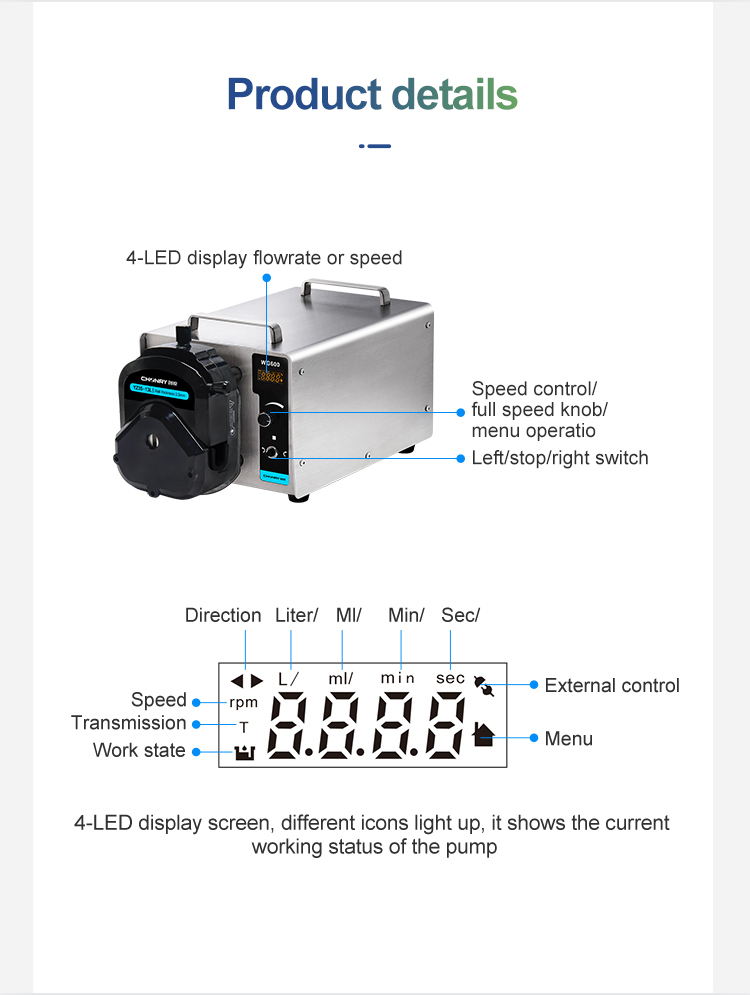

Display method	4-digital LED display current speed or flow
Suction angle	10°-720° (0° means no back suction)
Suction speed	30-300rpm
Power supply	AC220±10% (standard) or AC110V±10% (optional)
Power	＜400W

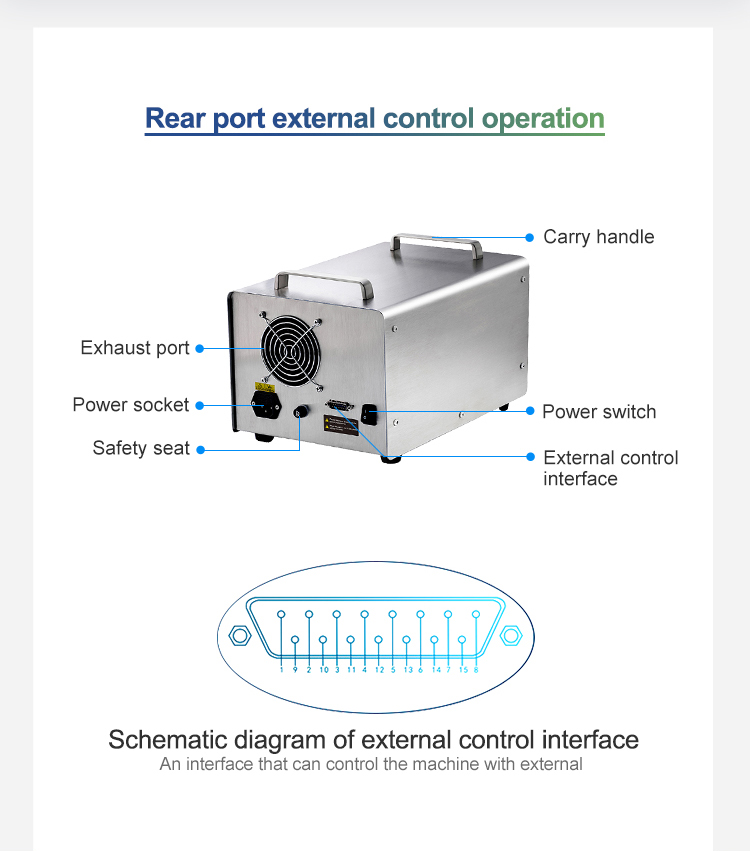

External control interface	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.
Drive size	372X232X225.5 mm
Drive weight	19kg

Pump head/hose flow parameter table:

Pump Head	Hose	ID（mm）	Wall Thickness（mm）	Max Flow(ml/min)	Max Speed(rpm)
YZ35	73#	9.6	3.3	7400	600
YZ35	82#	12.7	3.3	12000
YZ35-13L	73#	9.6	3.3	7400
YZ35-13L	82#	12.7	3.3	12000
YZ35LS	73#	9.6	3.3	7400
YZ35LS	82#	12.7	3.3	12000

Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data test environment for normal temperature and pressure, the test fluid is water, and the data is for reference only, please prevail in practice.

For specific needs, please consult Chonry Company.

WG600 Peristaltic Pump Brochure

WG600 Pump Head/Tube Flow Parameter Table
