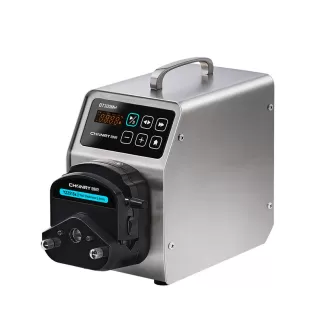

BW100 Lab Peristaltic Pump Microfluidic Transfer Contant Flow

Flow Rate: 28mL/min

Speed: 100rpm

- BW100 Lab Peristaltic Pump adopts a stepper motor.

- It is used for Lab research and medical sampling.

- This lab peristaltic pump is used for Microfluid transfer. Continuous flow run.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BW100 pump adopts a stepper motor. It is a small and low-flow peristaltic pump. The flow rate is 28mL/min. BW100 peristaltic flow rate pump is mainly used for Lab research chromatography, medical sampling, bioreactors, etc. It adopts an LED four-digit display, membrane key control, compact structure, and stable transmission. BW100 often selects the WP110 pump heads that support single or double channels for different work requirements. Supports RS485 MODBUS communication protocol, and meets the requirements of different work needs of customers.


Features:

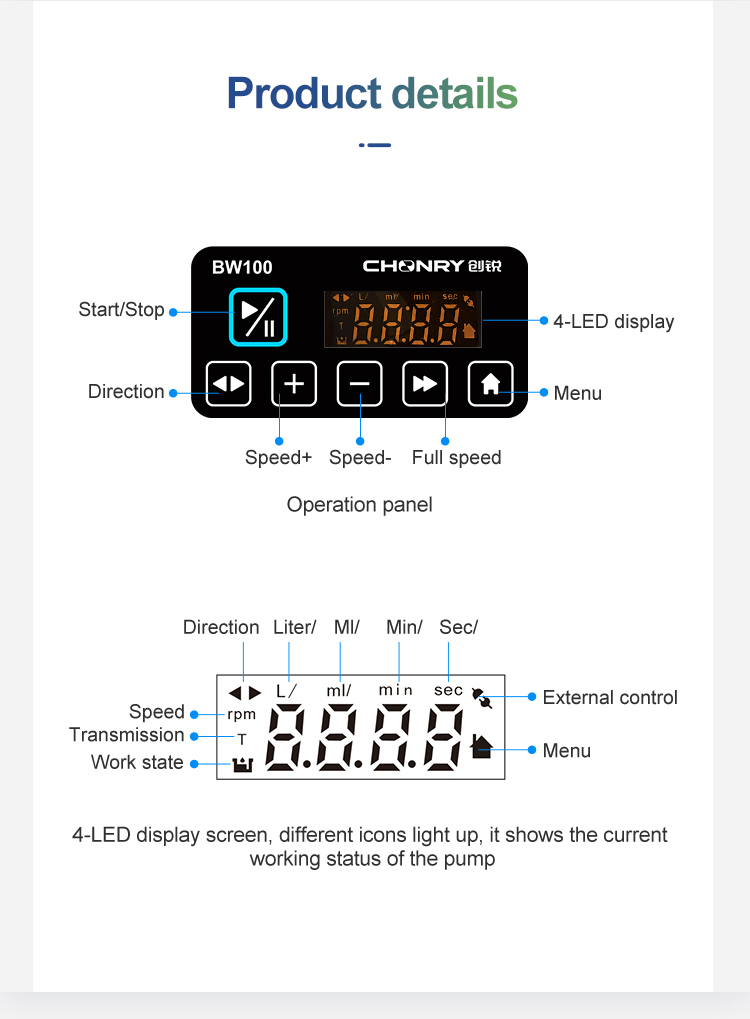

LED digital display: 4-digit LED digital display speed and flow, With flow calibration function.

Easy to operate: Button to adjust parameters, can run forward and reverse, easy to operate.

Power off save: This can automatically save the control parameters when the last power fails.

One key full speed: Features a convenient full-speed button for quickly filling or emptying the tube.

External control function: Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs.

Flow calibration: Flow calibration is possible, and suction is provided to prevent liquid dripping. Increase the accuracy.


Application

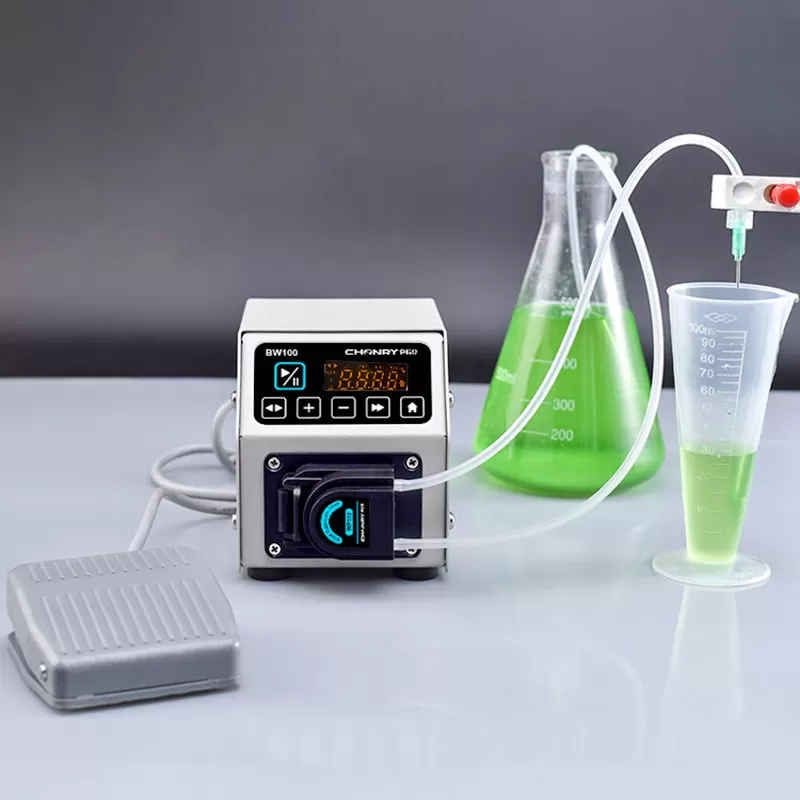

The BW100 is a laboratory peristaltic pump. It can be used in laboratory research, chromatography, COD water treatment, medical sampling, etc.

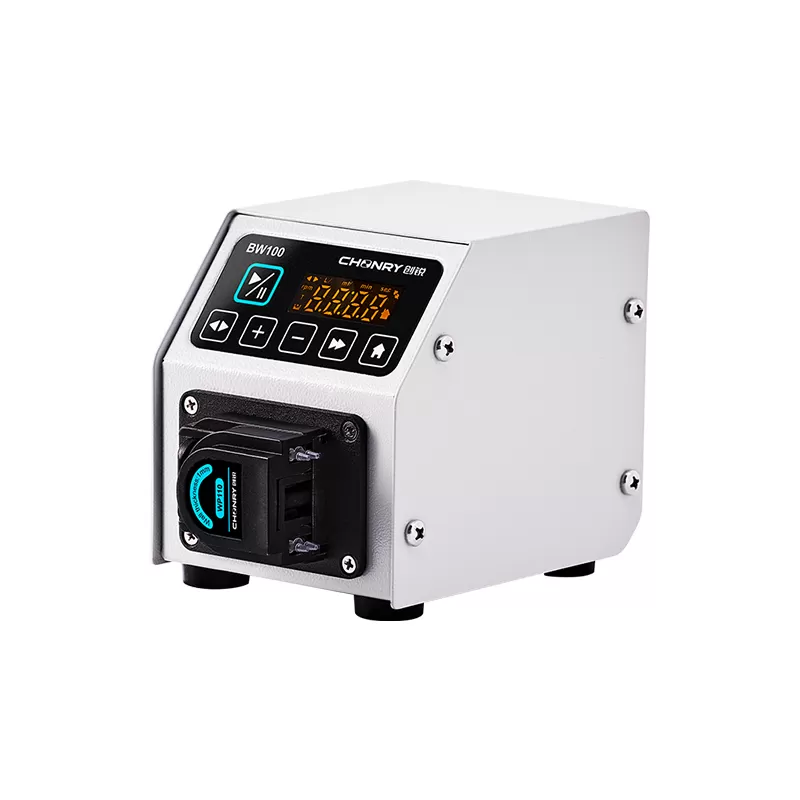

BW100 Lab Peristaltic Pump



BW100 Stepper Motor Small Flow Peristaltic Pump

BW100 Stepper Motor Small Flow Peristaltic Pump



Drive modelBW100 Lab Peristaltic Pump MicroFluid Transfer Pump
Max speed100rpm(reversible)
Speed resolution0.1rpm
Max flow28mL/min
Pump headWP110
Speed modeMembrane button to adjust the speed
Display methodFour-digit LED displays the current speed or flow
Suction speed10-100rpm
Power<22W
Drive size120x100x108 mm
Power supplyAC220V±10% (standard) or AC110V±10% (optional)

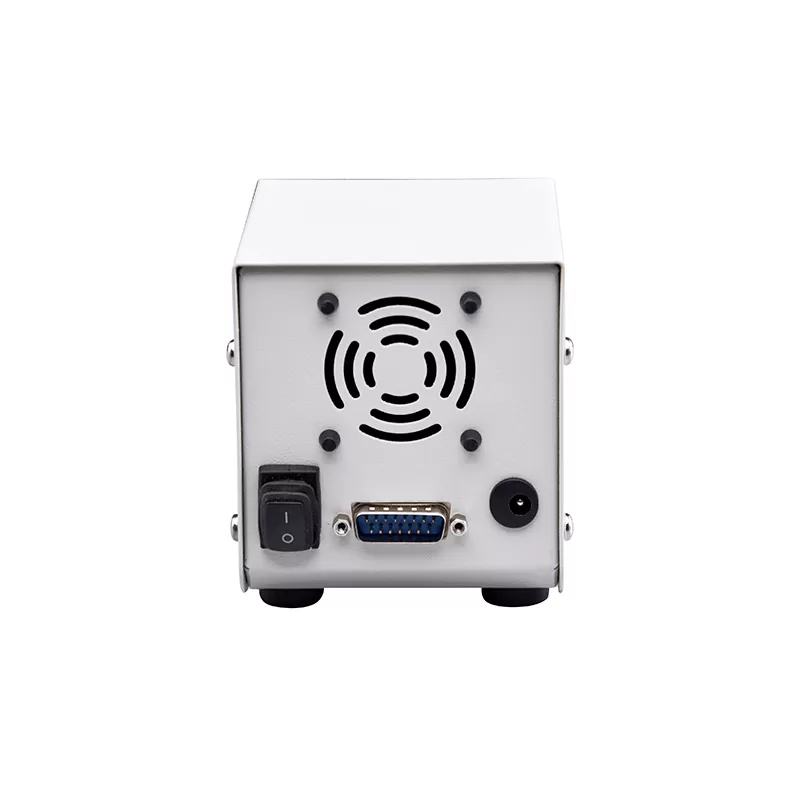

External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication


Pump HeadModelRollerTubeID*wall thickness(mm)Max Speed(rpm)Max Flow(ml/min)
BW100WP11031*11*11005
2*12*110017
2.5*12.5*110028
41*11*11004
2*12*110012
2.5*12.5*110024
61*11*11003
2*12*110013
2.5*12.5*110017


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
