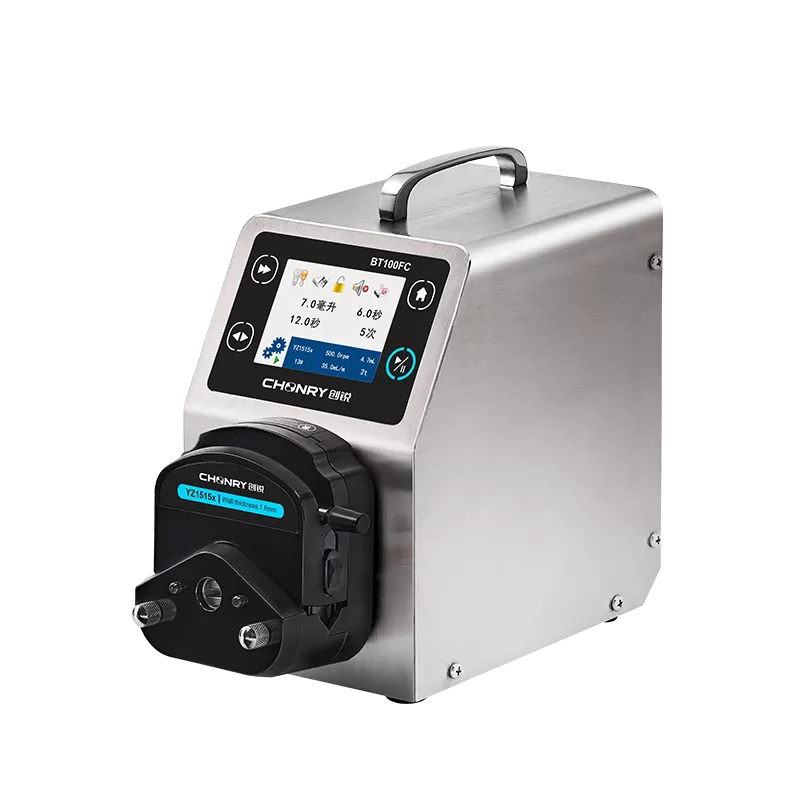

BT100FC Liquid Filling Peristaltic Pump Reagent E-liquid Filling 480mL/min Precision Pump

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

The flow rate of BT100FC dispensing peristaltic pump is from 0.0015 to 480mL/min. It adopts a 3.5-inch screen displaying the flow rate and running state with high accuracy. It is equipped with power-off memory that returns to the previous state when power on. And flow rate calibration function. BT100FC has the dispensing and transferring of two working models. It is widely used for medicine filling, the chemical industry and transferring food fluid products.

Specification

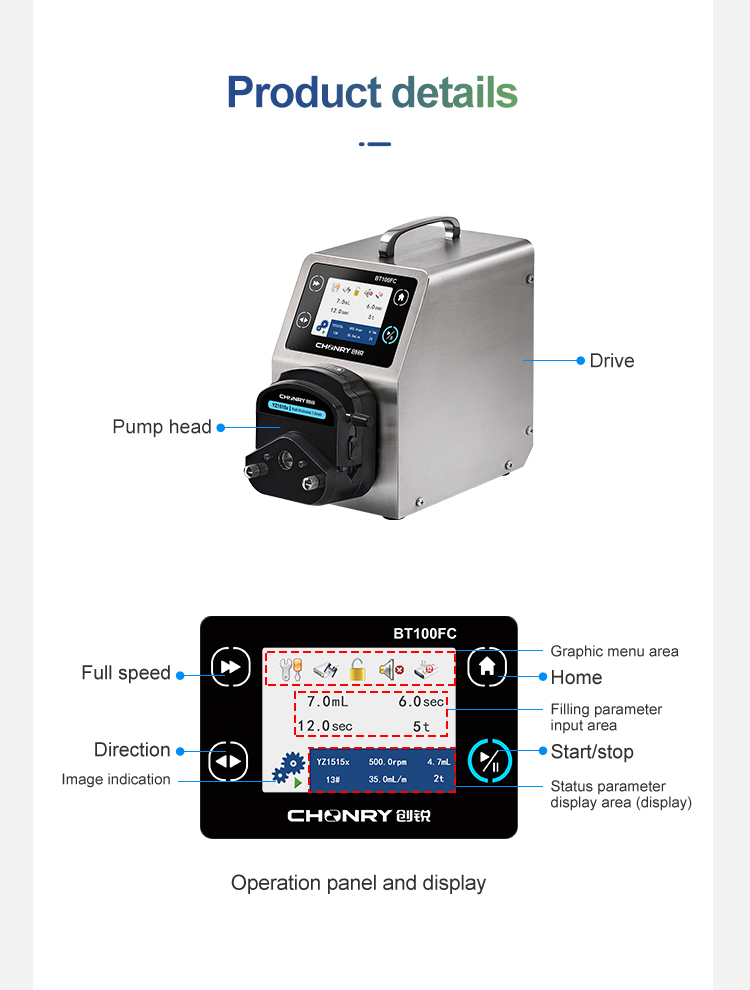

LCD touch：3.5-inch color LCD, Chinese, and EnglishDisplay, touch screen control.

Flow calibration： With the flow calibration function, it is suitable for transferring liquids with higher precision

Data storage： 8 sets of data can be stored for users

Multiple working modes： dispensing and transferring of two working models

Acceptable pump heads： YZ, DG, TX series pump heads can be installed, and Pump heads can be cascaded.

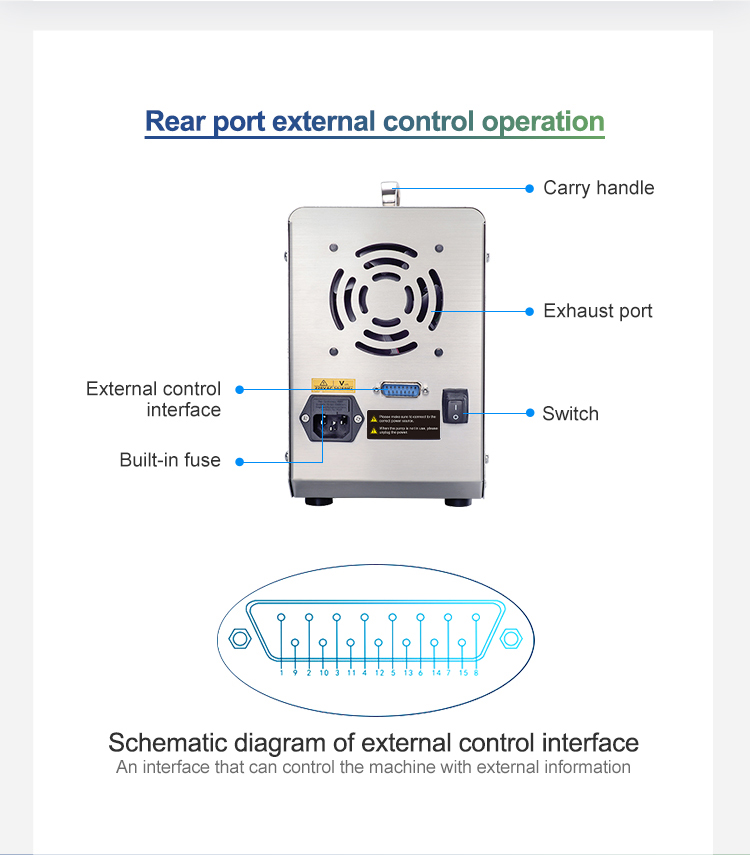

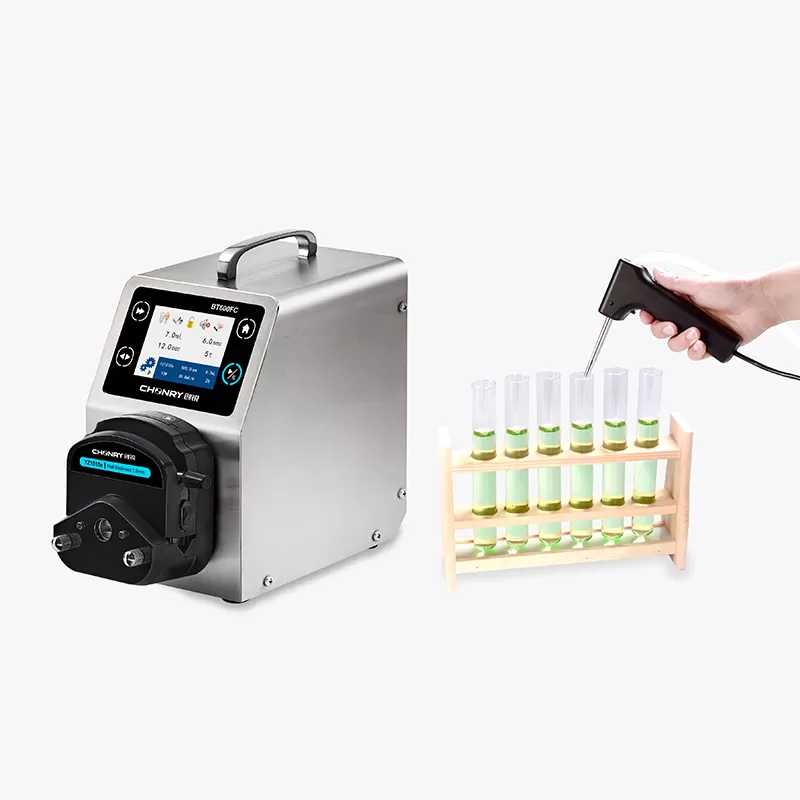

Support external control： Support RS485/MODBUS communication protocol, analog control, foot switch control

Accuracy liquid volume filling

Application

It is mostly used in testing reagents, oral liquids, veterinary drugs and other pharmaceutical fillings, or in chemical, food, E-liquid filling, and other fields.

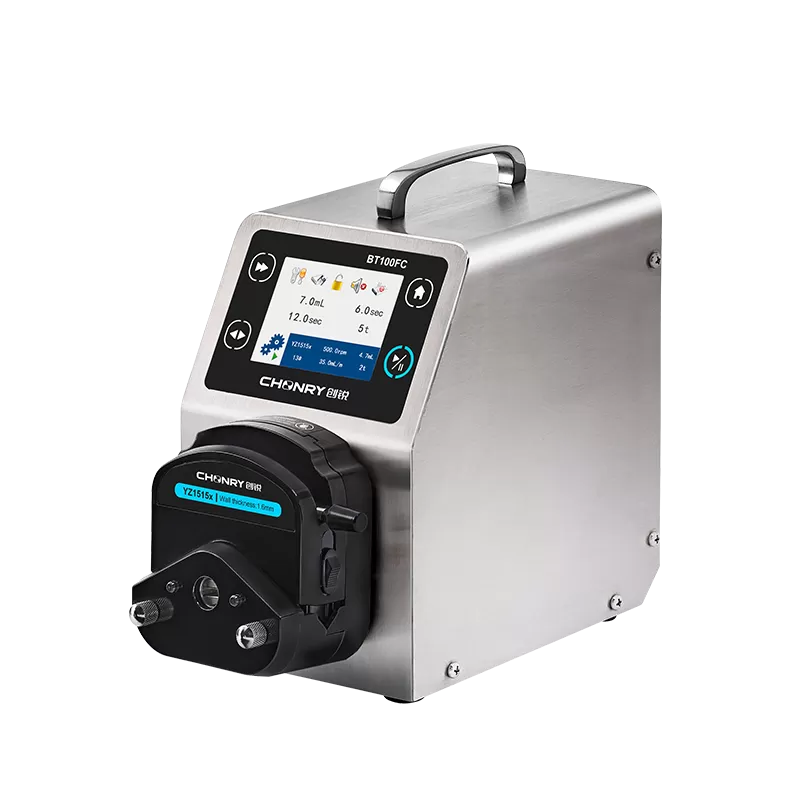

BT100FC Dispensing Peristaltic Pump

Drive model	BT100FC Liquid Filling Peristaltic Pump Dispenser
Max Speed	100rpm(reversible)
Speed resolution	0.1rpm
Max flow	380mL/min
Display method	Color LCD display (Chinese and English optional)
Speed mode	Touch screen adjustment
Timing range	0.1s-9999min
Quantitative range	0.001mL-9999L
Filling times	0-9999t
Back suction angle	10°-720° (0° means no back suction)
Back suction Speed	10-100rpm
Power	＜22W
Drive size	215136.4236.7mm
Drive weight	4.64kg
Power supply	AC220V±10% (standard) or AC110V±10% (optional)
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed(rpm)	Peristaltic Pump Tubing *(IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	BT100FC	100	7	27	51	82	170	290	380
YZ15m		100	7	27	51	82	170	290	380
YZ15ma		100	7	27	51	82	170	290	380
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	BT100FC	100	170			290
			*0.50.8**	*11**	*21**	*2.40.8**		*31**
DG	BT100FC	100(10)	1.5	4	13	17		27
DG		100(6)	2	6	19	24		36
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	BT100FC	100	27			82		170
			*24#(6.42.4)**
ZN25	BT100FC	100	290

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.

FC Series Brochure FC series is an intelligent distribution type peristaltic pump, which adopts 3.5-inch touch screen operation, intuitive data display, provides a variety of function settings, has two working modes of transmission and distribution, and can realize repeated timing and quantitative distribution.

FC Series Pump Head/Tube Flow Parameter Table
