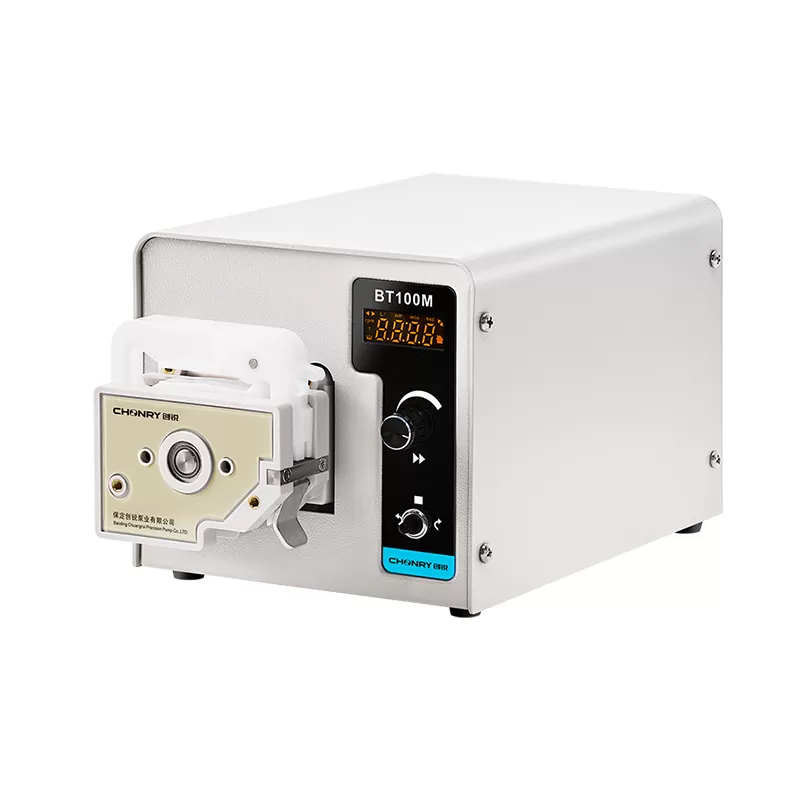

BT100M Basic Peristaltic Pump Liquid Continuous Flow Run 480mL/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

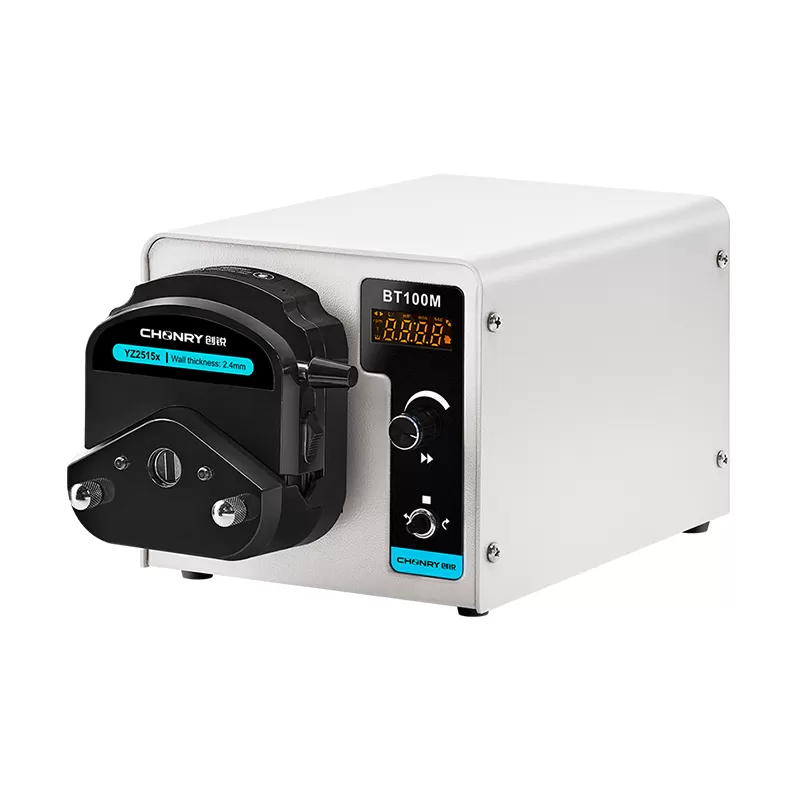

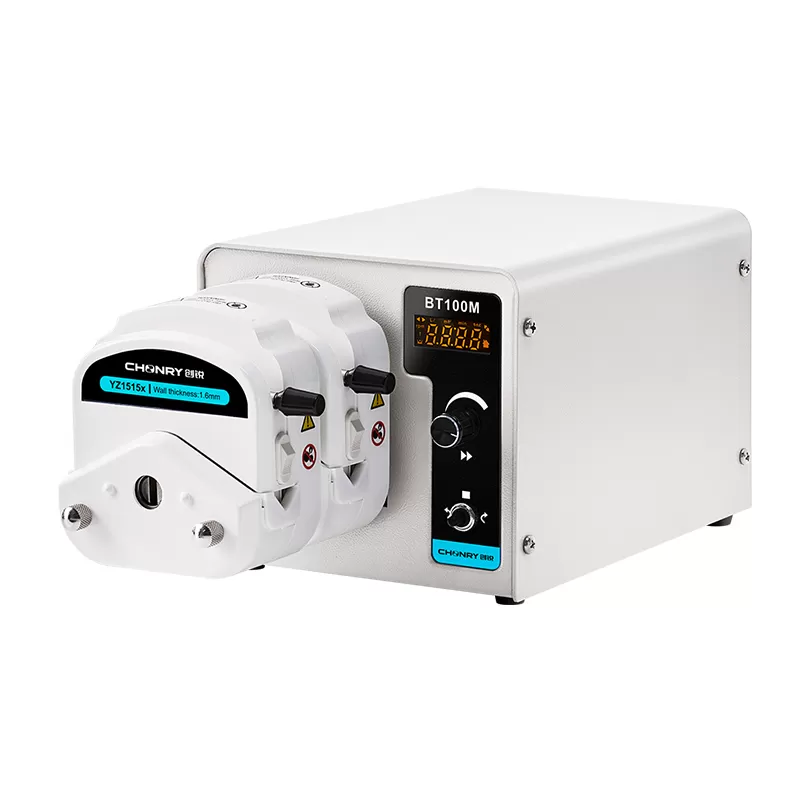

BT100M basic peristaltic pump used for constant liquid transfer. Flow rate: 480mL/min. Easy load pump head and a digital display of rpm. BT100M continuous flow pump adopts easy knob operation. Smart flow calibration function offers precise flow delivers. Fewer tubing changes. It can be loaded with YZ1515X, YZ2515X and DG series pump heads. Support RS485/MODBUS communication protocol, simple operation, and convenience.

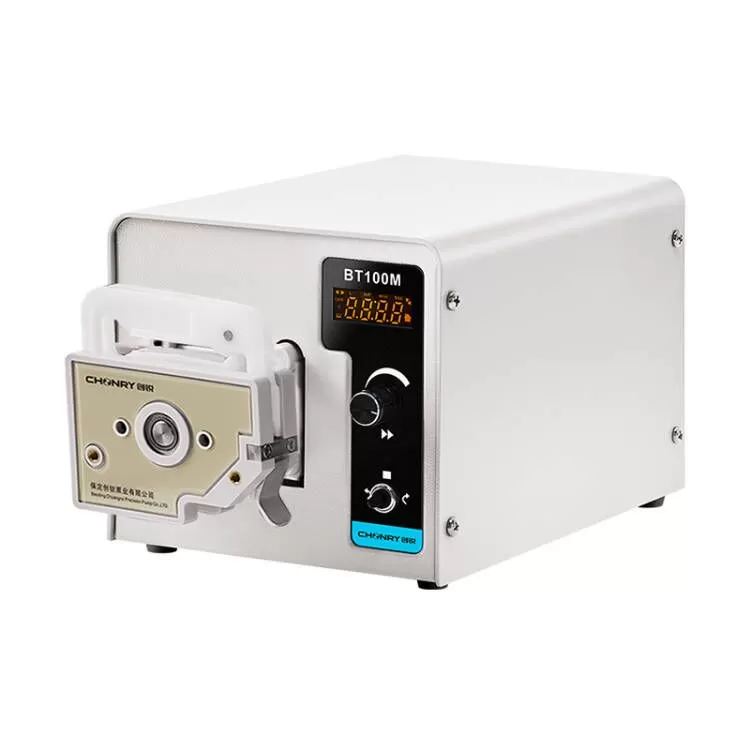

BT100M Low Flow Peristaltic Pump

Features:

Minimalist operation: Low power consumption motor, the digital knob is easy to operate, long life

External control operation: With RS485/MODBUS communication protocol, analog control

Flow calibration: Multiple calibrations can be performed to reduce flow rate errors and ensure flow accuracy

Adapt to multiple pump heads: Various pump heads such as YZ series, DG series and TX series can be installed

Power-off memory: Can automatically save the control parameters when the last power failure

Full speed function: Features a convenient full-speed button for quickly filling or emptying the hose

Application

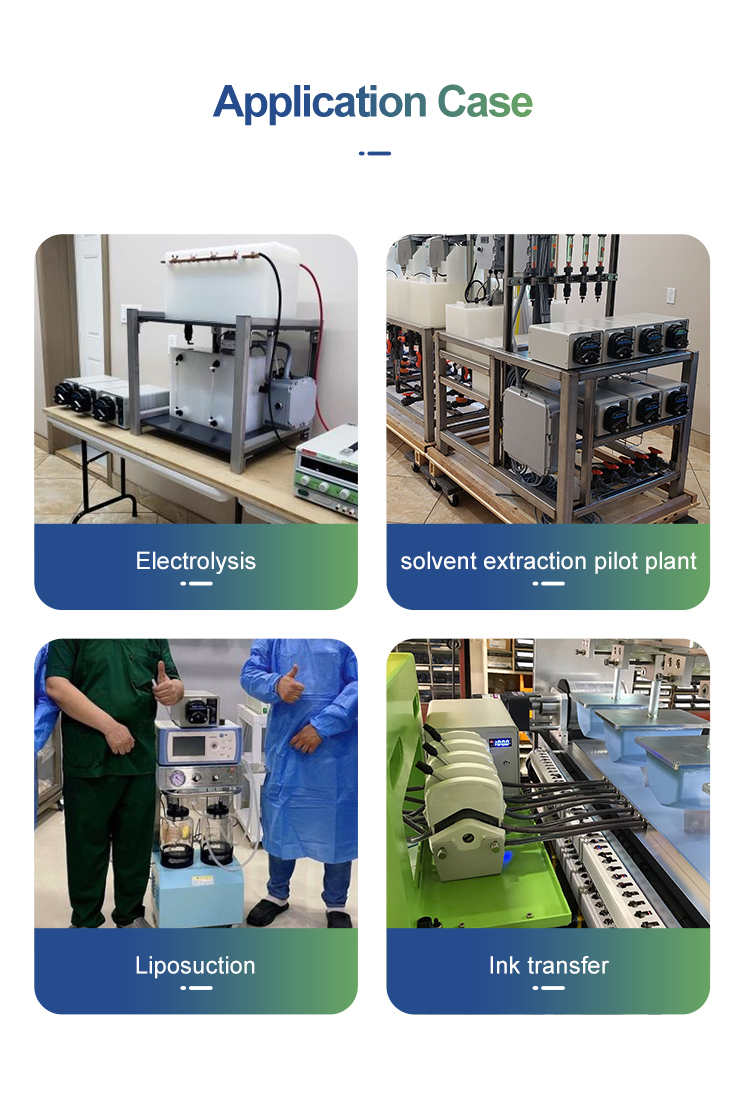

It can be used in solvent extraction plants, leaching pumps, mining, flotation, sapphire grinding, polishing fluid transfer, endoscopic cleaning, and liposuction pumps.

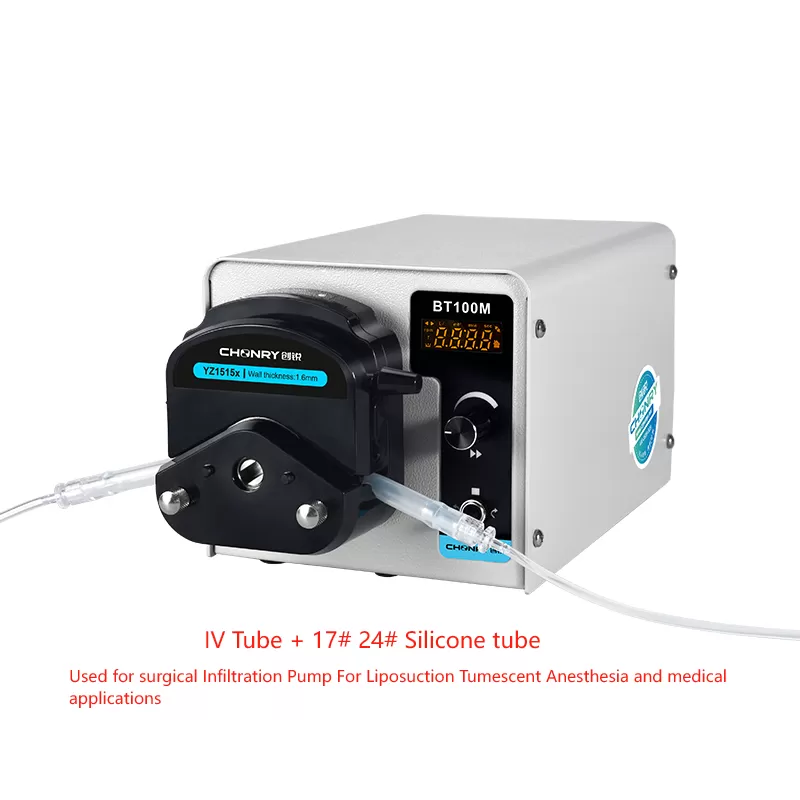

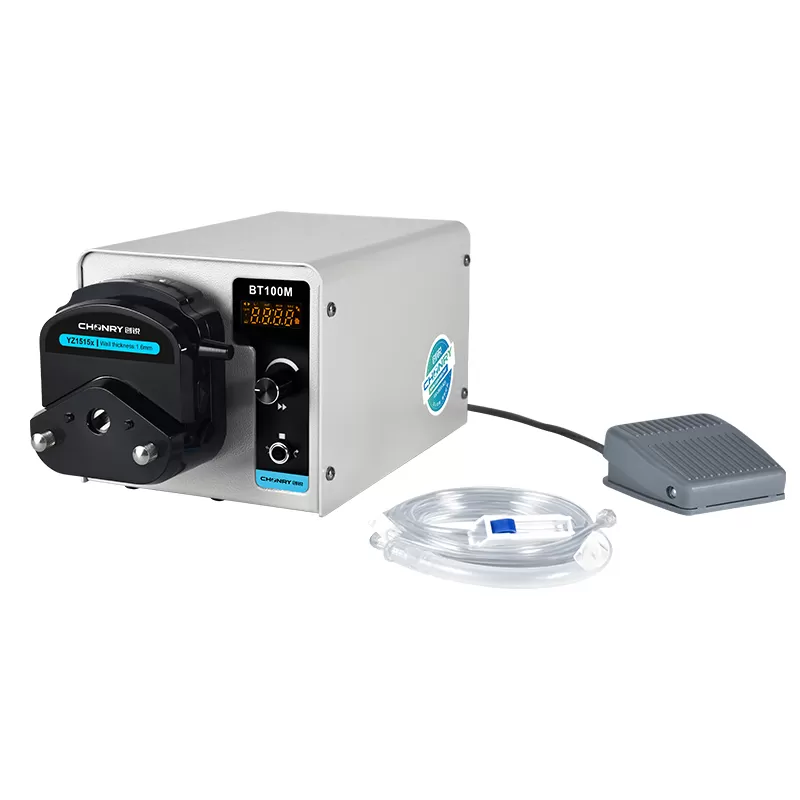

BT100M continuous flow pump is used in liposuction surgery for Saline transfer / tumescent fluid transfer.

BT100M Basic Peristaltic Pump

Drive model	BT100M Basic Peristaltic Pump Liquid Continuous Flow Run
Max Speed	100rpm(reversible)
Max Flow	480mL/min
Drive size	234154143mm
Drive weight	3.98kg

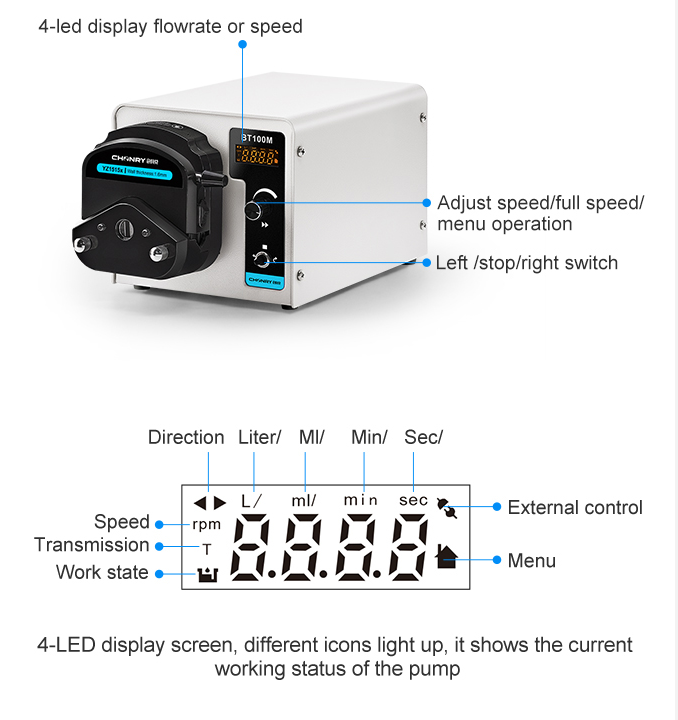

Display method	4-digit LED displays the current speed/flow
Speed mode	Digital knob to adjust the speed
Power supply	AC220V±10% (standard) or AC110V±10% (optional)
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed	13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)	IV Tube+ 17# silicone tube	IV Tube+ 24# silicone tube
YZ1515X	BT100M	100	7	27	51	81	170	290	380	Optional selection(Mainly used for Liposuction, Tumescent anesthesia and medical applications)
		Max Speed	15#(4.8*2.4)			24#(6.4*2.4)				IV Tube+ 17# silicone tube	IV Tube+ 24# silicone tube

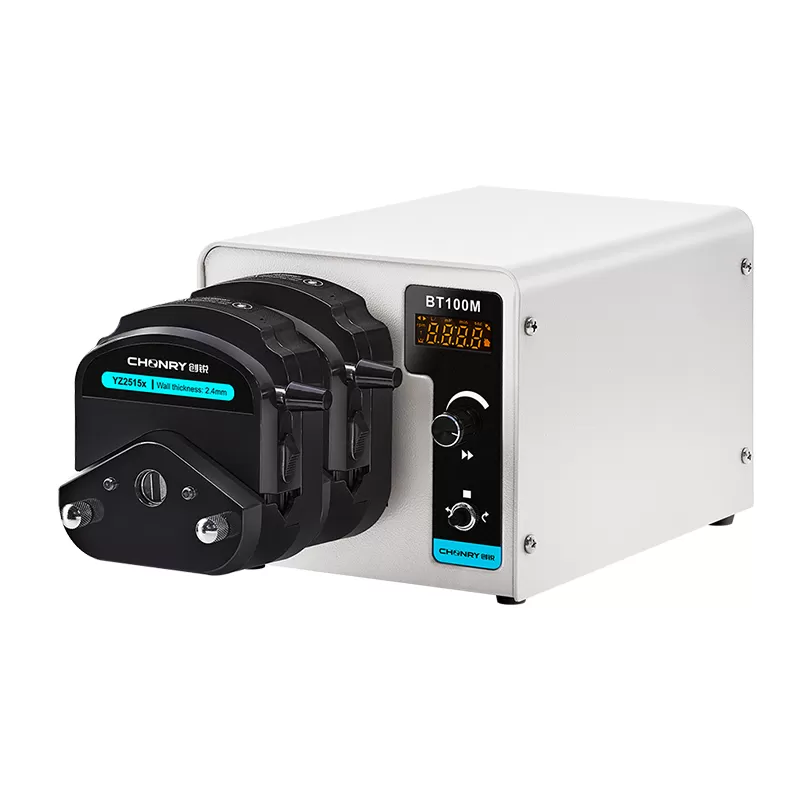

YZ2515X	BT100M	100	170			290				Optional selection(Mainly used for Liposuction, Tumescent anesthesia and medical applications)
		Max Speed	0.5*0.8	1*1	2*1	2.4*0.8		3*1
DG	BT100M	100(10)	1.5	4	13	17		27
DG	BT100M	100(6)	2	6	19	24		36

Flow unit: (mL/min) hose model:(mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.

M Series Brochure Used in chemical, photovoltaic and other industries, and used in conjunction with filling machines, dispensing machines and other equipment

M Series Pump Head/Tube Flow Parameter Table Low power consumption motor, digital knob is easy to operate, long life
