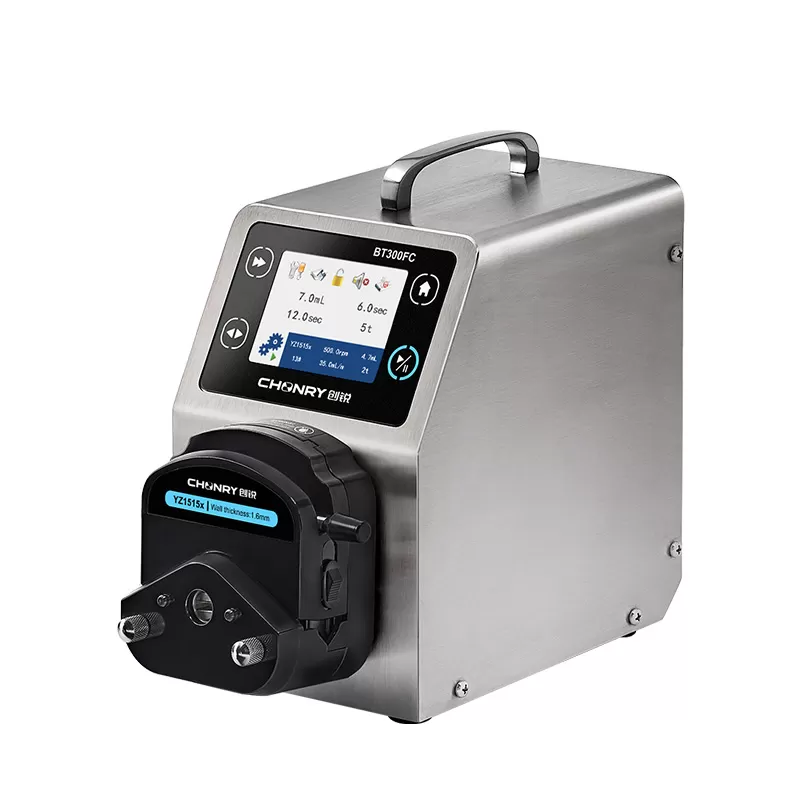

BT300FC Precise Filling Microfluidic Filling Reaptatable 1L/min For Medicine Filling

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

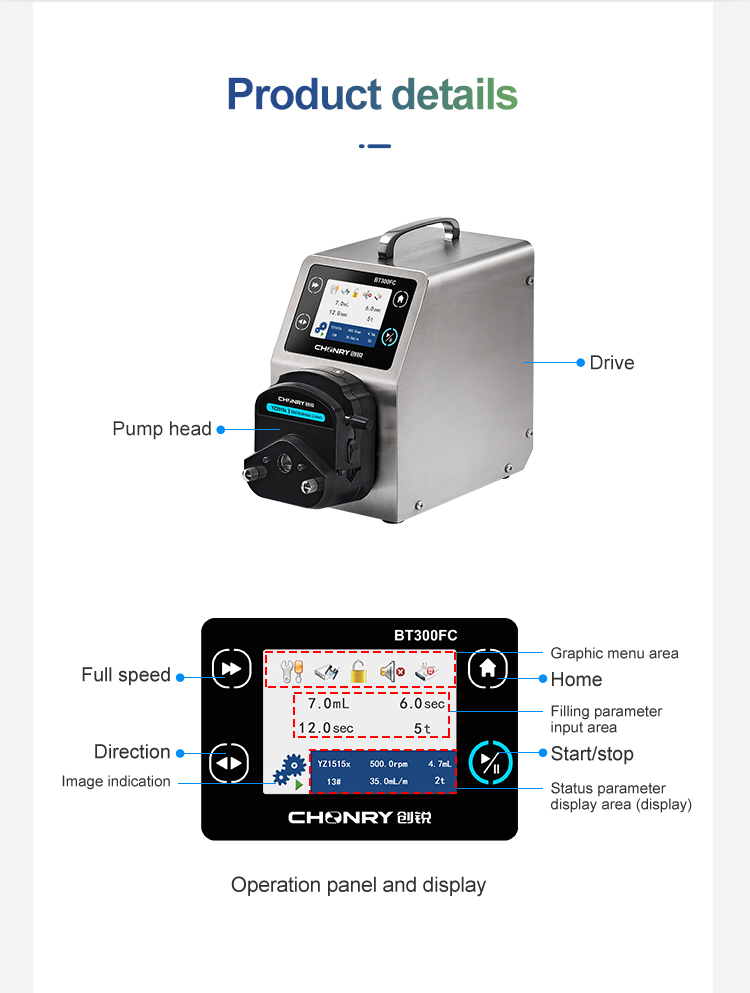

BT300FC microfluidic bottle filling peristaltic pump series is an intelligent filling peristaltic pump, which adopts a 3.5-inch touchscreen operation. It could display the parameters and running state and has four working modes. BT300FC precise pump realizes repeated timing and quantitative distribution. The stainless steel all-inclusive design is strong and durable. Besides, it can store 8 sets of filling data, realizing fast filling. Supporting various external control methods such as RS485/MODBUS communication protocol. The flow rate ranges from 0.007 to 1440mL/min.

Specification

LCD touch：3.5-inch color LCD, Chinese and EnglishDisplay, touch screen control.

Flow calibration： With the flow calibration function, it is suitable for transferring liquids with higher precision

Data storage： 8 sets of data can be stored for users

Multiple working modes： dispensing and transferring of two working models

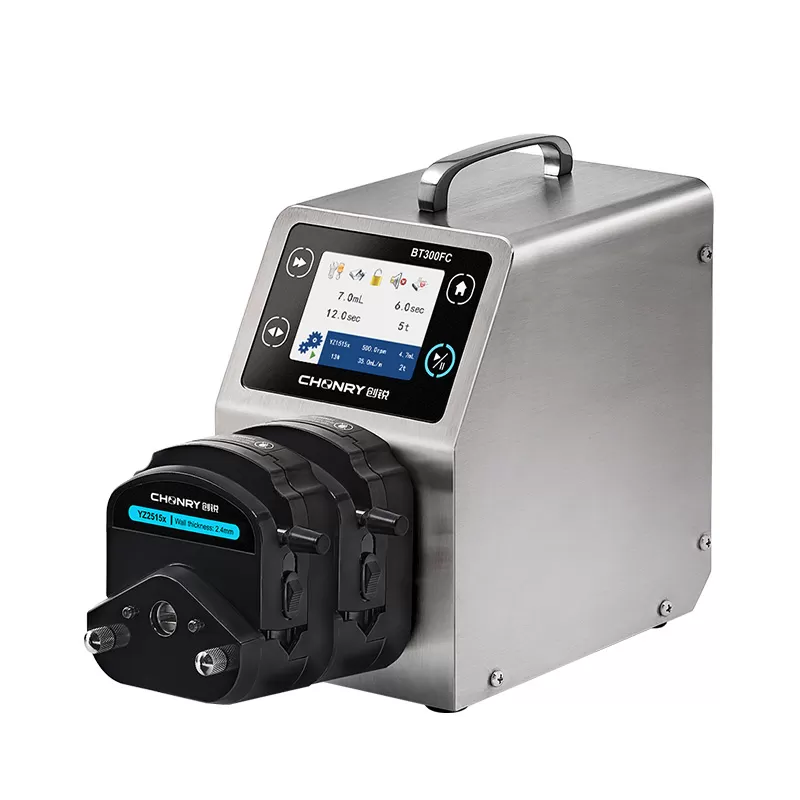

Acceptable pump heads： YZ, DG, and TX series pump heads can be installed, and Pump heads can be cascaded.

Support external control： Support RS485/MODBUS communication protocol, analog control, foot switch control

Application

It is mostly used in testing reagents, oral liquids, veterinary drugs and other medicine fillings, or in chemical, food, and other fields.

BT300FC Intelligent Flow Peristaltic Pump

Drive model	BT300FC Microfluidic Bottle Filling Peristaltic PumpReaptatable
Max Speed	300rpm(reversible)
Speed resolution	0.1rpm
Max flow	1440mL/min
Display method	Color LCD display(Chinese and English optional)
Speed mode	Touch screen adjustment
Timing range	0.1s-9999min
Quantitative range	0.001mL-9999L
Filling times	0-9999t
Back suction angle	10°-720° (0° means no back suction)
Back suction Speed	10-300rpm
Power	＜35W
Drive size	215136.4236.7mm
Drive weight	4.64kg
Power supply	AC220V±10% (standard) or AC110V±10% (optional)
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed	*Peristaltic Pump Tube (IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	BT300FC	300	21	81	153	246	510	870	1140
YZ15m		300	21	81	153	246	510	870	1140
YZ151ma		300	21	81	153	246	510	870	1140
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	BT300FC	300	510			870
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	BT300FC	300	81			246		510
			*24#(6.42.4)**
ZN25	BT300FC	300	870

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.

FC Series Brochure FC series is an intelligent distribution type peristaltic pump, which adopts 3.5-inch touch screen operation, intuitive data display, provides a variety of function settings, has two working modes of transmission and distribution, and can realize repeated timing and quantitative distribution.

FC Series Pump Head/Tube Flow Parameter Table
