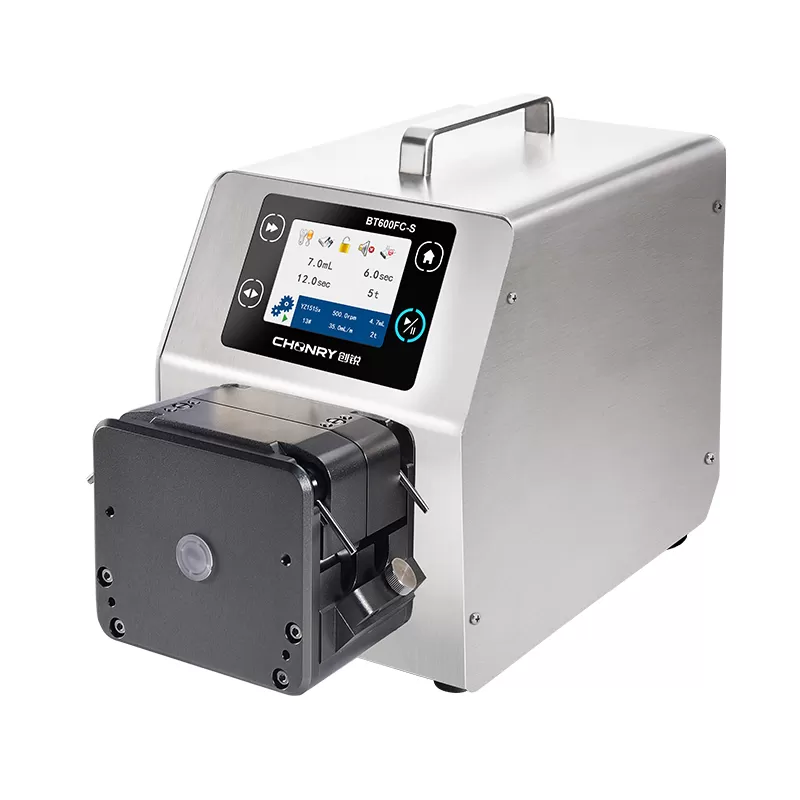

BT600FC-S Industrial peristaltic pump stepper motor has a high flow rate 6L/min. It adopts a 3.5-inch touchscreen operation, and intuitive data display providing a variety of function settings. It has two working modes: transmission and distribution, and realizes accurately repeated timing and quantitative dispensing. The stainless steel design is strong and durable. Long lifetime. This middle-flow peristaltic pump can store 8 sets of filling data. Achieve fast filling, and supports multiple external control methods such as RS485 MODBUS communication protocol.

Features:

LCD Touch: 3.5-inch color LCD, Chinese and English display, touch screen control

The precision flow rate calibration function ensures accuracy liquid transfer and dosing.

Data storage function: supports storing 8 sets of data for users. More convenient.

Multi-working modes: BT600FC-S has two working modes, liquid transferring and liquid dispensing. Realizing precision repeated liquid filling and dosing. Support timing and quantitative filling.

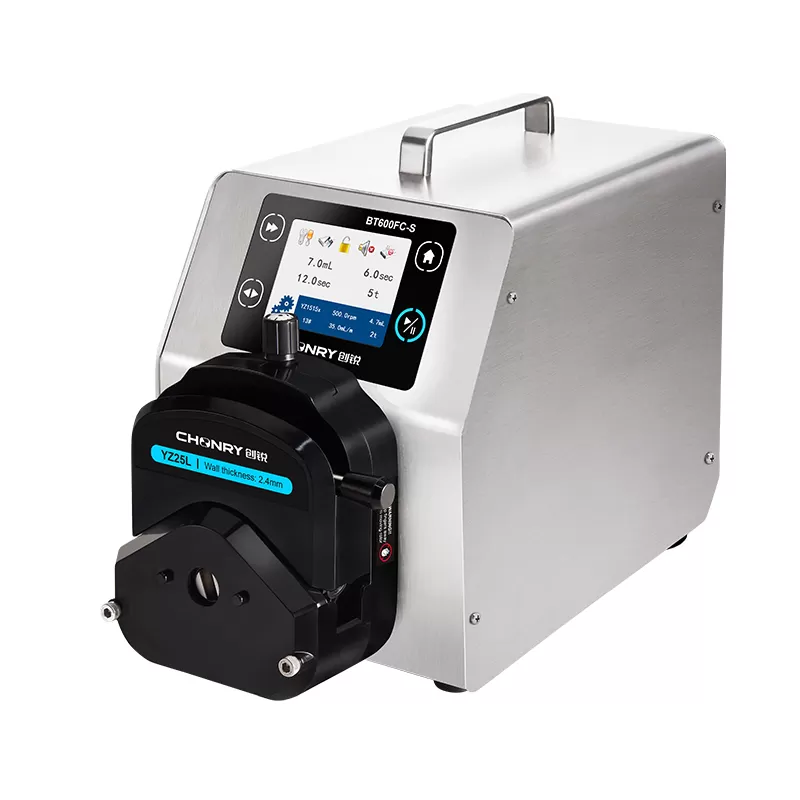

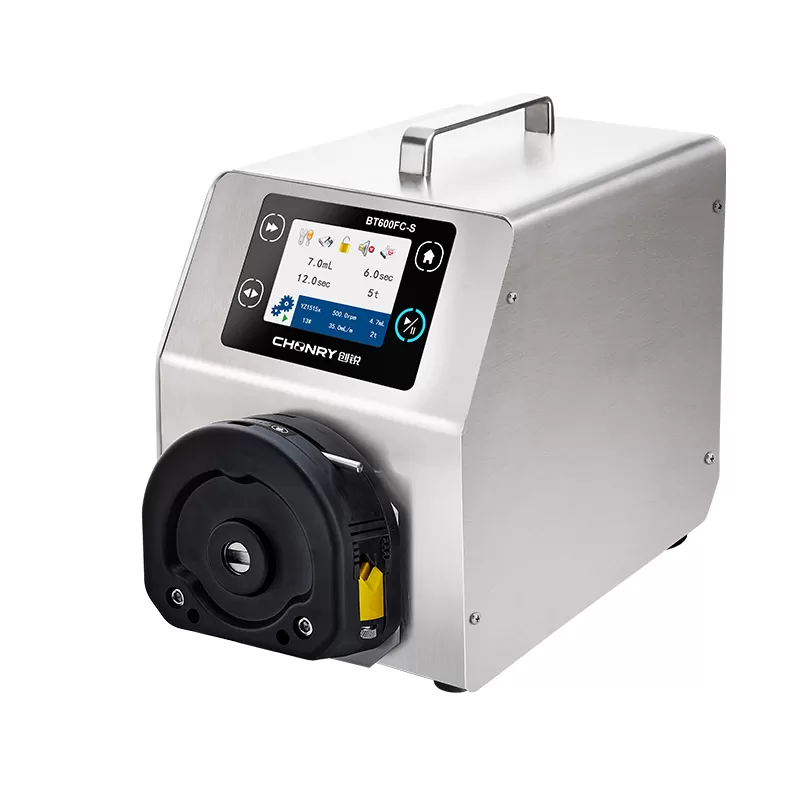

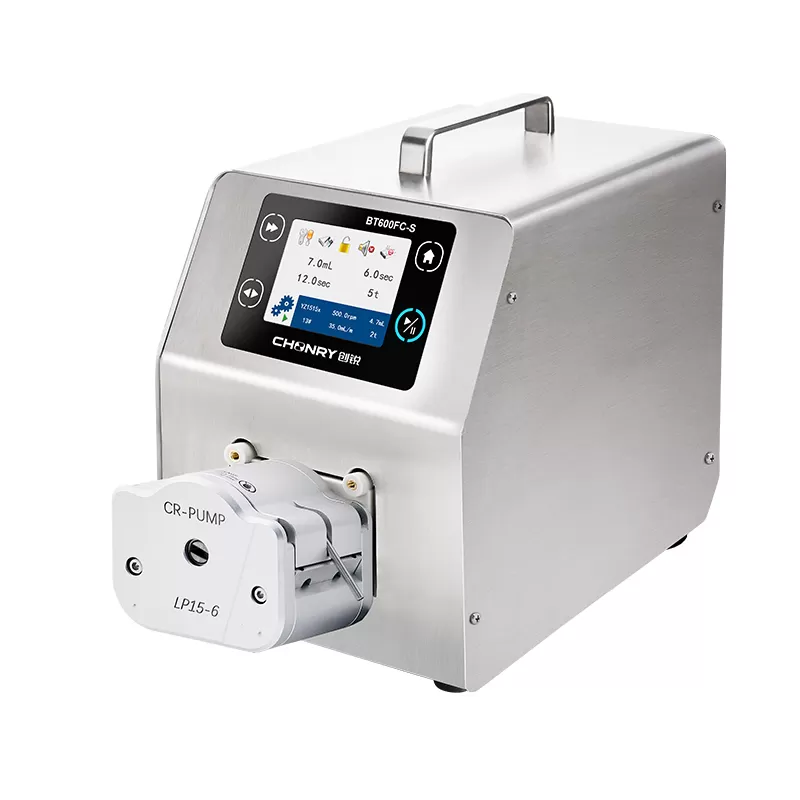

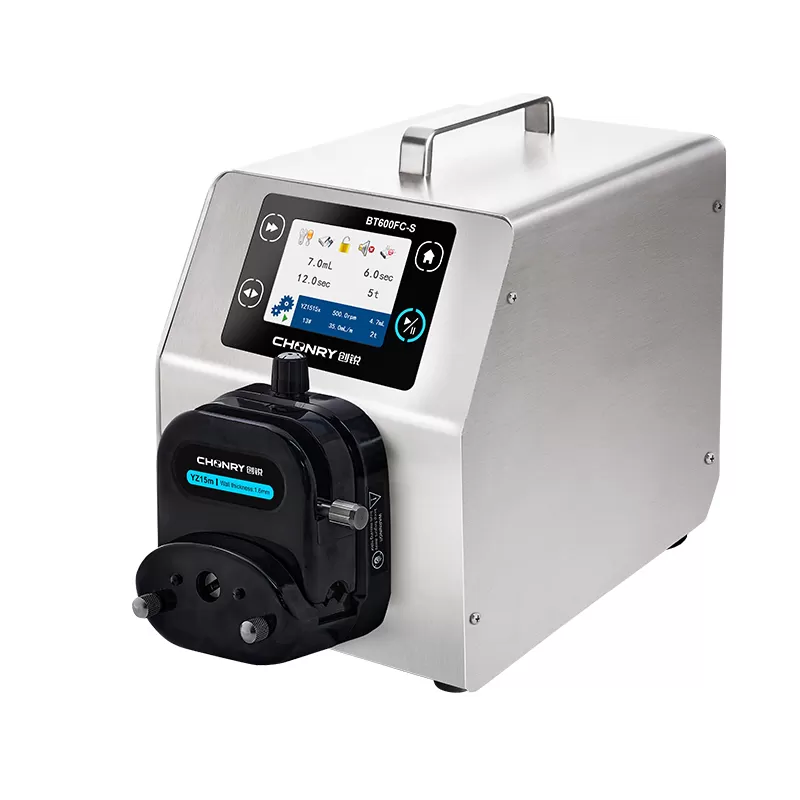

Multi pump heads for options: This middle flow peristaltic pump BT600FC-S can be installed with YZ series, LP series, KZ series and other pump heads.

RS485 MODBUS External control: The BT600FC-S laboratory peristaltic pump supports RS485 MODBUS communication protocol, analog control, foot switch control.

Applications:

BT600FC-S middle-flow peristaltic pumps are widely used in laboratory analytics, biopharmaceuticals, printing, mineral processing and other industrial liquid transferring and dispensing uses.

Technical Parameter
Drive model	BT600FC-S
Max speed	600rpm (reversible)
Speed resolution	0.1rpm
Max flow	6000mL/min
Speed mode	Touch screen adjustment
Display method	Color LCD (Chinese and English optional)
Timing range	0.1s-9999min
Quantitative range	0.001ml-9999L
Back Suction angle	10°-720° (0° means no back suction)
Back Suction speed	10-300rpm
Power supply	AC220±10% (standard) or AC110V±10% (optional)
Power	＜100W
External control interface	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.

Pump Head	Model	Tube	ID(mm)	Wall Thickness(mm)	Max speed(rpm)	Max Flow(ml/min)
	YZ15mtYZ15mat	13#	0.8	1.6	600	42
		14#	1.6	1.6		162
		19#	2.4	1.6		306
		16#	3.1	1.6		492
		25#	4.8	1.6		1020
	YZ25mYZ25ma	15#	4.8	2.4	600	1020
		24#	6.4	2.4		1740
		35#	7.9	2.4		2280
		36#	9.6	2.4		3000
	LP15-6	13#	0.8	1.6	600	84
		14#	1.6	1.6		324
		19#	2.4	1.6		612
		16#	3.1	1.6		984
		25#	4.8	1.6		2040
		17#	6.4	1.6		3480
		18#	7.9	1.6		4560
	LP25-6	2.4*2.4	2.4	2.4	350	420
		3.2*2.4	3.2	2.4		720
		15#	4.8	2.4		1680
		24#	6.4	2.4		2560
		35#	7.9	2.4		3300
		36#	9.6	2.4		4000
	LP25-6-H	2.4*2.4	2.4	2.4	350	455
		3.2*2.4	3.2	2.4		700
		15#	4.8	2.4		1505
		24#	6.4	2.4		2345
		35#	7.9	2.4		3255
		36#	9.6	2.4		4500
	YZ25L	15#	4.8	2.4	600	1800
		24#	6.4	2.4		3000
		35#	7.9	2.4		4200
		36#	9.6	2.4		6000
	KZ25	15#	4.8	2.4	600	1800
		24#	6.4	2.4		3000
		35#	7.9	2.4		4200
		36#	9.6	2.4		6000
	KZ25L	15#	4.8	2.4	600	1800
		24#	6.4	2.4		3000
		35#	7.9	2.4		4200
		36#	9.6	2.4		6000

Test conditions:

1. Flow data testing environments for normal temperature 20-25℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the heads are not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end +outlet end +test end)

The above data test environment for normal temperature and pressure, the test fluid is water. The data is just for reference. Any questions, please feel free to contact us Chonry Peristaltic pump manufacturer.

BT600FC-S Peristaltic Pump Brochure

BT600FC-S Flow Rate Parameter Table
