Chonry O (≤6000mL/min)
Home / Products / Peristaltic Pump / Chonry O (≤6000mL/min) / BT600LC-S Multi Channel Peristaltic Dosing Pump
Multichannel peristaltic Dosing pump

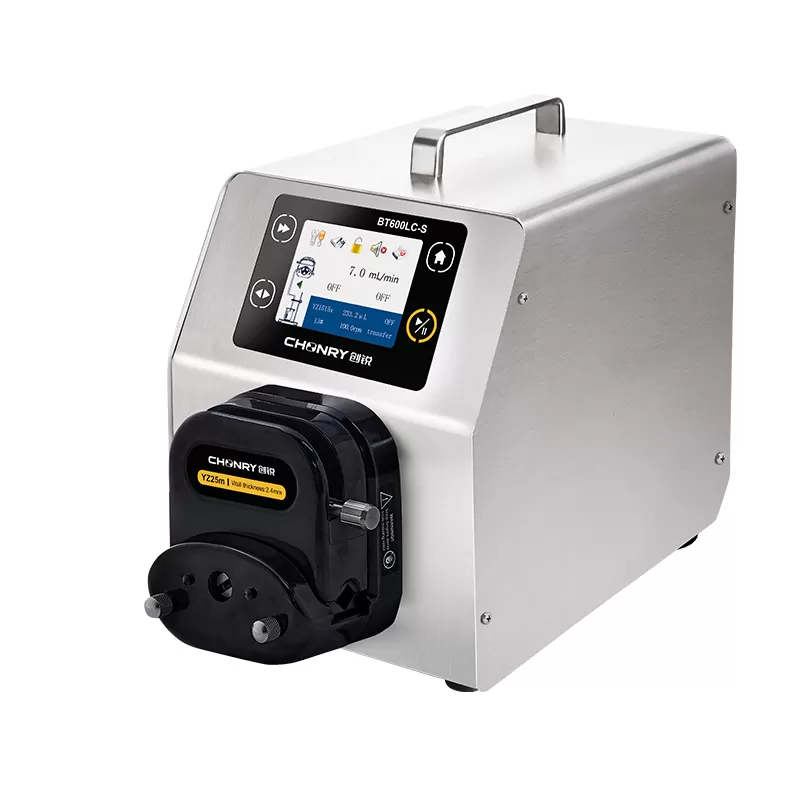

BT600LC-S Multi Channel Peristaltic Dosing Pump

Flow Rate：6000ml/min

  • Four working modes,liquid transferring, timing mode, quantitative mode and timing quantitative mode.

  • Large flow peristaltic dosing pump. Used for chemical liquid dosing, water treatment, food beverage filling and membrane filtration.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT600LC-S multichannel peristaltic dosing pump 6000ml.min. Sturdy and durable stainless steel casing designed. The 3.5-inch color LCD touchscreen displays the parameters. Intuitive. This BT600LC-S has four working modes: fluid transferring, timing mode, quantitative mode, and timing quantitative mode. BT600LC-S peristaltic pumps are the perfect solution for liquid transferring, dispensing, and filling. It supports multiple external control methods such as RS485 MODBUS communication protocol.


Features:

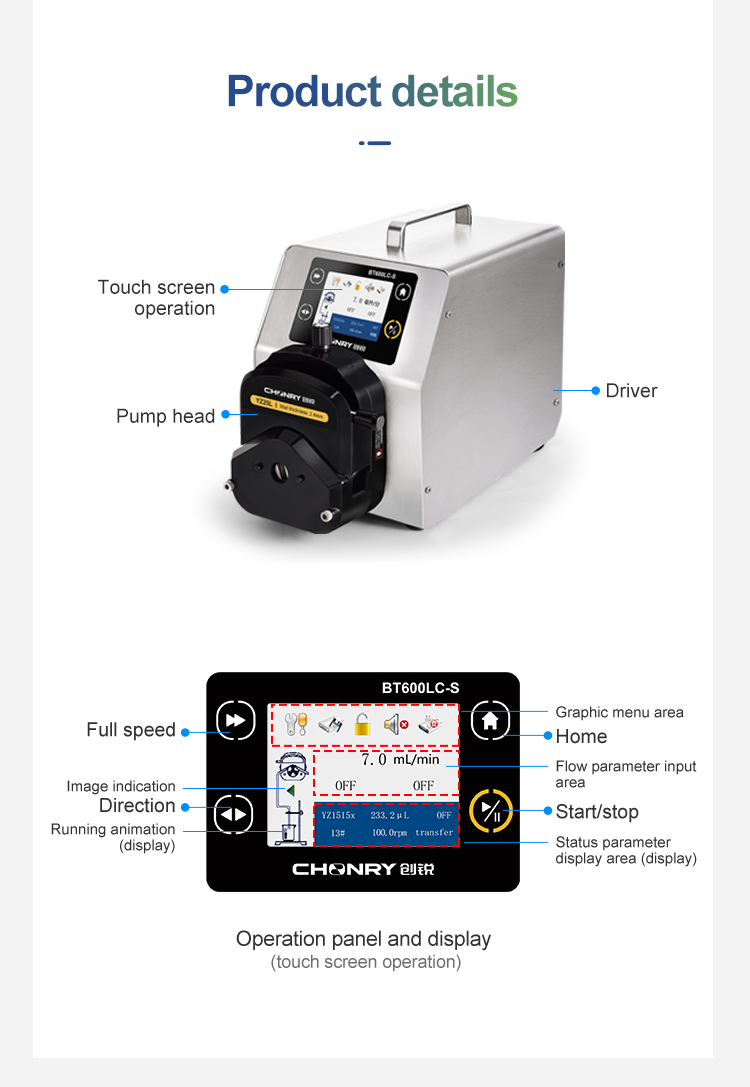

LCD Touch: 3.5 inch color LCD, Chinese and English display, touch screen control

The precision flow rate calibration function ensures accurate liquid transfer and dosing.

Data storage function: supports storing 8 sets of data for users. More convenient.

Multi-working modes: Four working modes, liquid transferring, timing mode, quantitative mode and timing quantitative mode. Realizing precision repeated liquid filling and dosing.

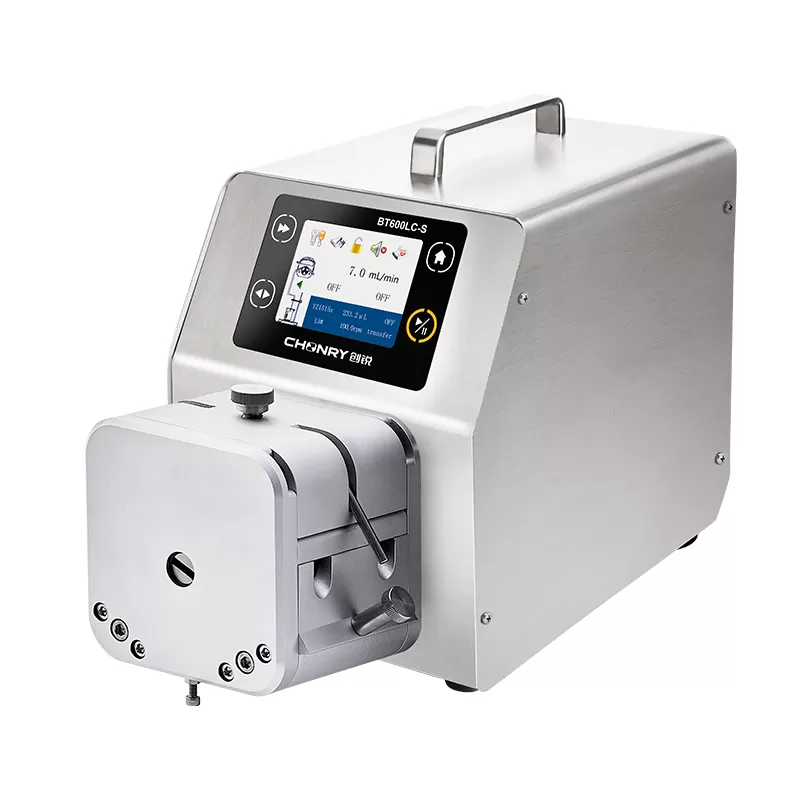

Multi pump heads for options: This middle flow peristaltic pump BT600LC-S can be installed with YZ series, LP series, KZ series and other pump heads.

RS485 MODBUS External control: The BT600LC-S laboratory peristaltic pump supports RS485 MODBUS communication protocol, analog control, and foot switch control.


Applications:

  • Large flow peristaltic dosing pump. Used for chemical liquid dosing, water treatment, food beverage filling and membrane filtration.


BT600LC-S Multi Channel Peristaltic Dosing Pump

BT600LC-S Multi Channel Peristaltic Dosing Pump



Drive modelBT600LC-S
Max speed600rpm(reversible)
Max flow6000ml/min
Speed resolution0.1rpm
Display methodColor LCD display (Chinese and English optional)
Speed modeTouch screen adjustment
Timing range0.1s-9999min
Quantitative range0.001ml-9999L
Back Suction angle10°-720° (0° means no back suction)
Back Suction speed10-300rpm
Power＜100W
Drive size278x182x239mm
Power supplyAC220±10% (standard) or AC110V±10% (optional)

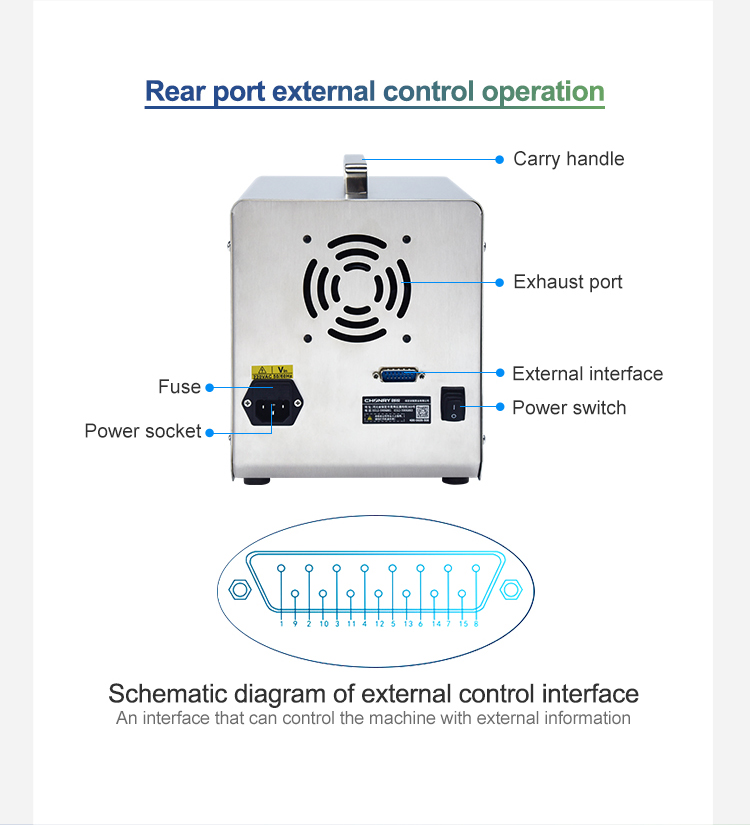

External control interfaceStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.



Pump HeadModelTubeID(mm)Wall Thickness(mm)Max speed(rpm)Max Flow(ml/min)

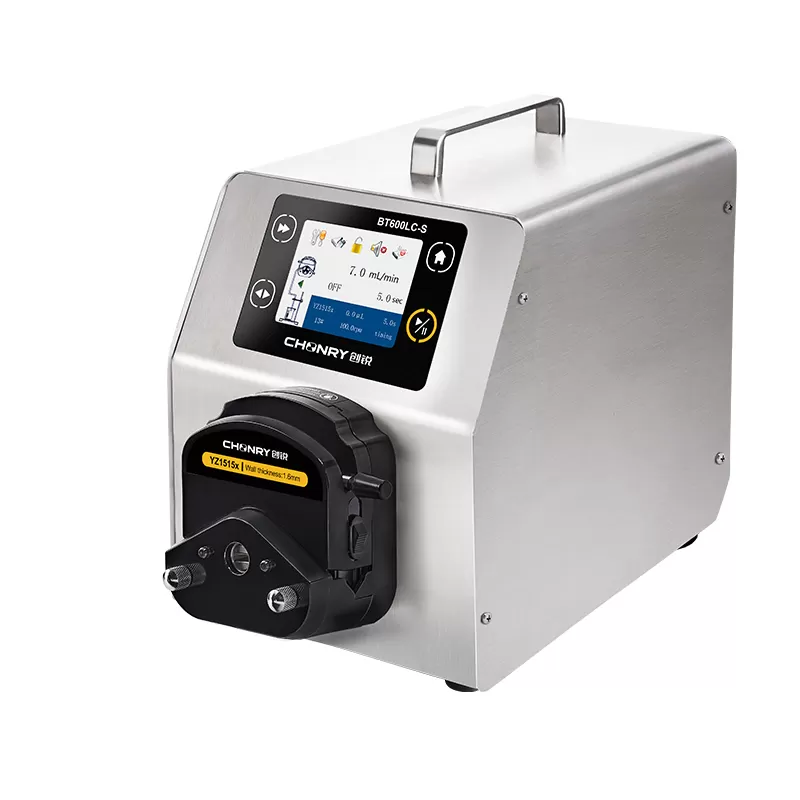

YZ15mtYZ15mat13#0.81.660042
14#1.61.6162
19#2.41.6306
16#3.11.6492
25#4.81.61020

YZ25mYZ25ma15#4.82.46001020
24#6.42.41740
35#7.92.42280
36#9.62.43000

LP15-613#0.81.660084
14#1.61.6324
19#2.41.6612
16#3.11.6984
25#4.81.62040
17#6.41.63480
18#7.91.64560

LP25-62.4*2.42.42.4350420
3.2*2.43.22.4720
15#4.82.41680
24#6.42.42560
35#7.92.43300
36#9.62.44000

LP25-6-H2.4*2.42.42.4350455
3.2*2.43.22.4700
15#4.82.41505
24#6.42.42345
35#7.92.43255
36#9.62.44500

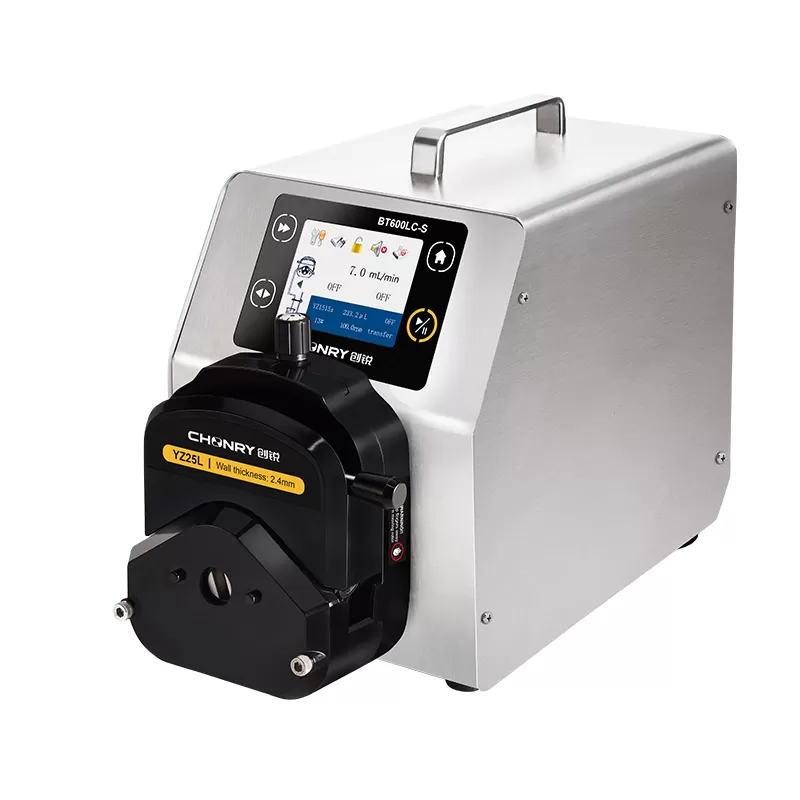

YZ25L15#4.82.46001800
24#6.42.43000
35#7.92.44200
36#9.62.46000

KZ2515#4.82.46001800
24#6.42.43000
35#7.92.44200
36#9.62.46000

KZ25L15#4.82.46001800
24#6.42.43000
35#7.92.44200
36#9.62.46000


Test conditions:

1. Flow data testing environments for normal temperature 20-25℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the heads are not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end +outlet end +test end)



The above data test environment for normal temperature and pressure, the test fluid is water. The data is just for reference. Any questions, please feel free to contact us Chonry Peristaltic pump manufacturer.


BT600LC-S Peristaltic Pump Brochure
BT600LC-S Peristaltic Pump Brochure
BT600LC-S Flow Rate Parameter Table
BT600LC-S Flow Rate Parameter Table

None

None
