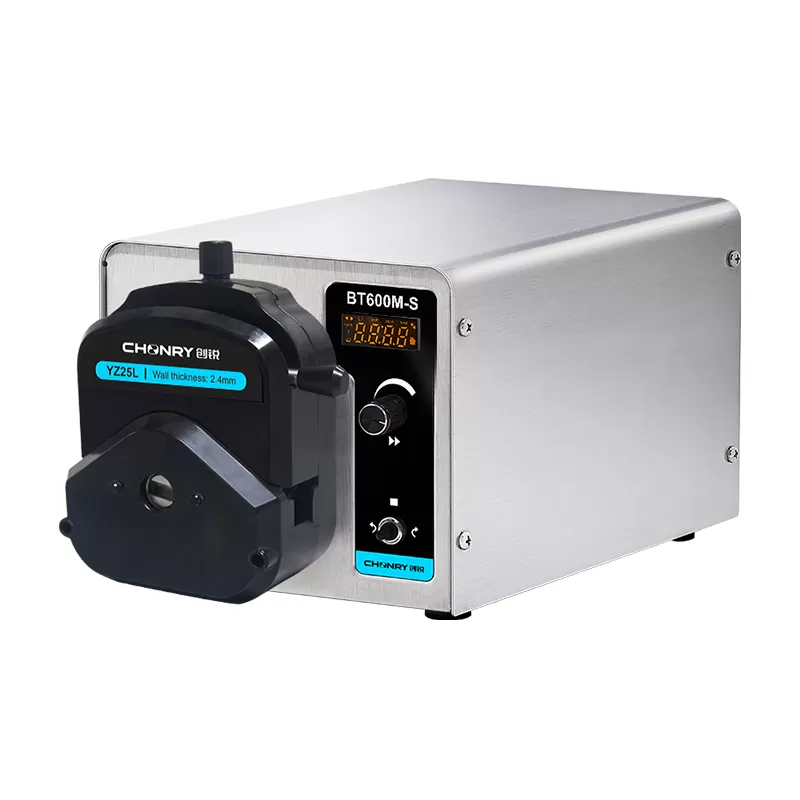

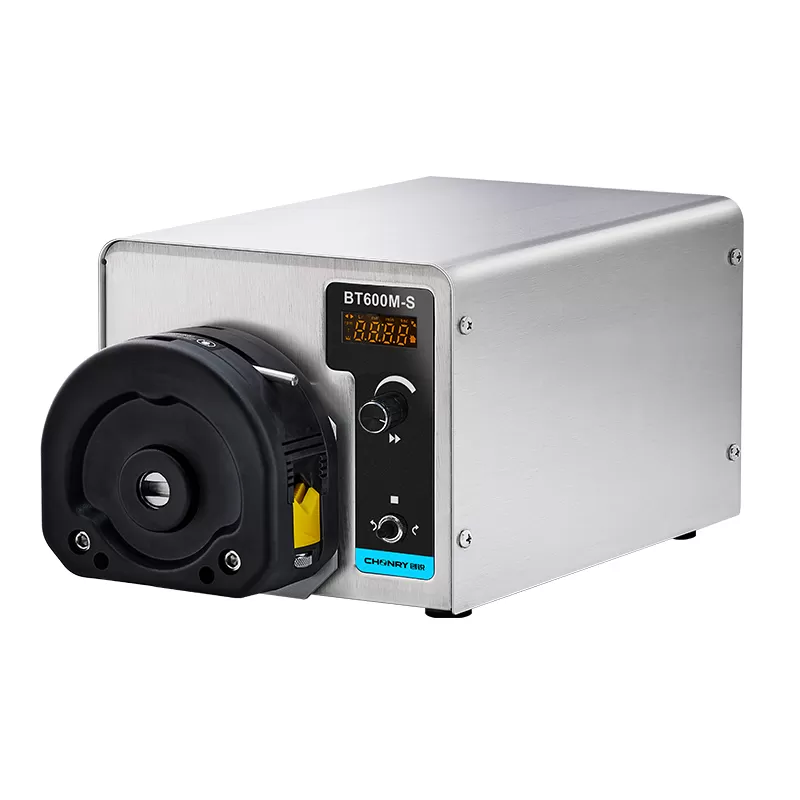

BT600M-S Digital Peristaltic Pump Multi Channel 6000ml/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

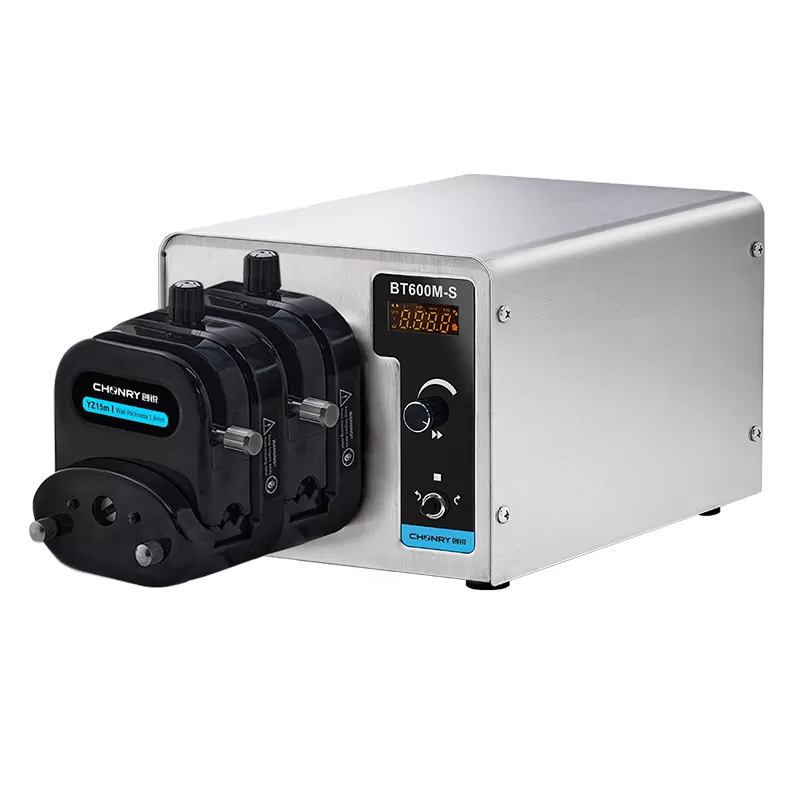

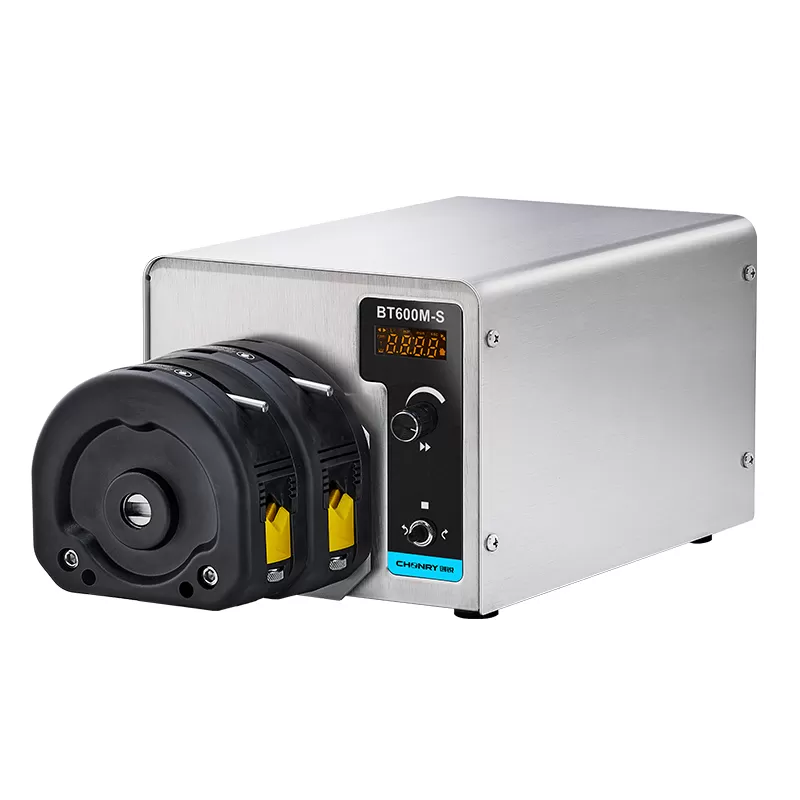

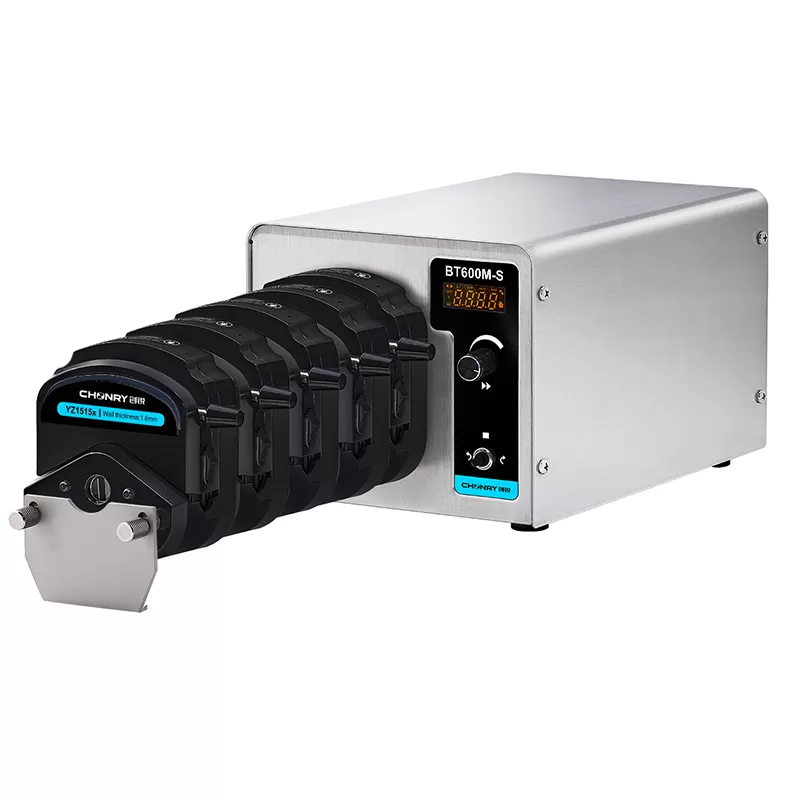

BT600M-S is a digital peristaltic pump. Support multi-channel improving working efficiency. The screen displays the current flow rate or rotational speed in 4-digit LED. Support liquid volume calibration. BT600M-S peristaltic pump has a large flow rate of up to 6000ml/min. It supports the RS485 MODBUS communication protocol and is suitable for various pump heads such as YZ, LP, KZ, etc. Meeting a variety of liquid dispensing needs. The knob adjusts flow speed. Simple and convenient operation.

Features:

Save after power off

Automatically save the control parameters from the last power outage.

One-click full-speed

Features a convenient full-speed button for quickly filling or emptying pipes.

Easy to operate

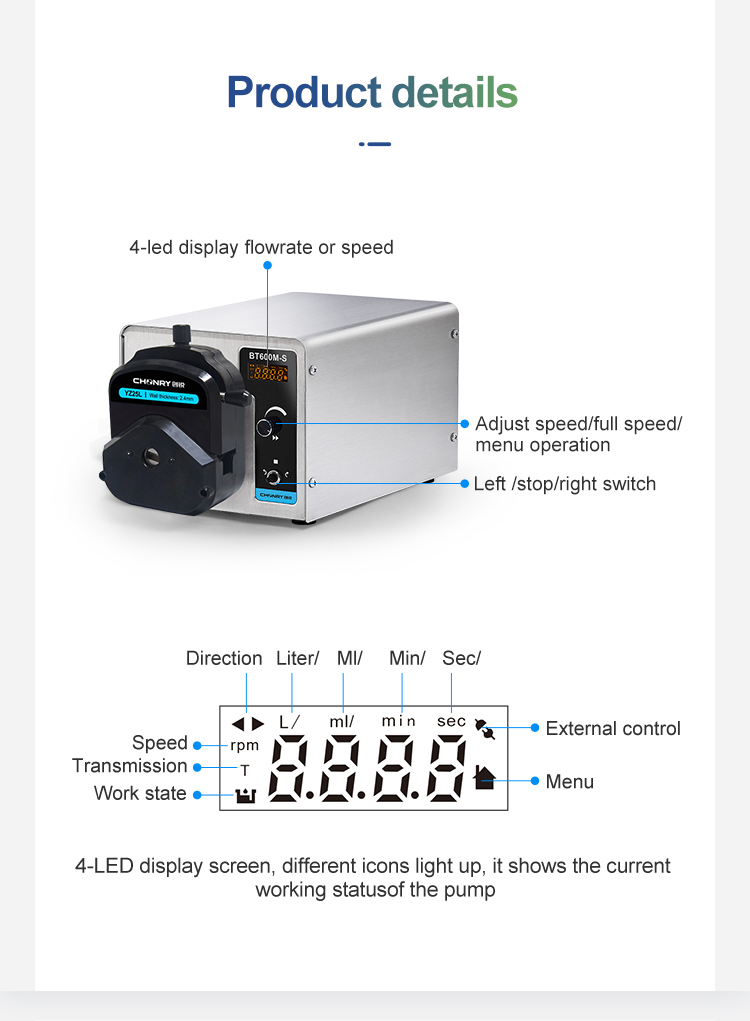

Digital knob, 4-digit LED display, simple clear, and intuitive operation.

Power Motor

Bidirectional high torque, simple servo motor, multiple pump heads can be casded

One-click full speed

Features a convenient full-speed button for quickly filling or emptying pipes

External control function

Support RS485 MODBUS communication protocol, the protocol can also be customized according to customer needs.

Suitable for multiple pump heads

Can install YZ series, LP series, KZ series and other pump heads.

Applications:

Used in liquid transferring and dispensing, mechanical grinding and polishing fluid, electronic planting addition, chemical liquids, glues, anti-static liquids, etc.

BT600M-S Digital Peristaltic Pump Multi Channel

Drive model	BT600M-S
Max speed	600rpm(reversible)
Max flow	6000ml/min
Speed resolution	0.1rpm
Display method	4-digital LED displays current speed/flow
Speed mode	Digital knob to adjust the speed
Timing range	0.1s-9999min
Quantitative range	0.001ml-9999L
Back Suction angle	10°-720° (0° means no back suction)
Back Suction speed	10-300rpm
Power	＜100W
Drive size	290x177x153mm
Power Supply	AC220±10% (standard) or AC110V±10% (optional)
External control interface	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.

Pump Head	Model	Tube	ID(mm)	Wall Thickness(mm)	Max speed(rpm)	Max Flow(ml/min)
	YZ15mtYZ15mat	13#	0.8	1.6	600	42
		14#	1.6	1.6		162
		19#	2.4	1.6		306
		16#	3.1	1.6		492
		25#	4.8	1.6		1020
	YZ25mYZ25ma	15#	4.8	2.4	600	1020
		24#	6.4	2.4		1740
		35#	7.9	2.4		2280
		36#	9.6	2.4		3000
	LP15-6	13#	0.8	1.6	600	84
		14#	1.6	1.6		324
		19#	2.4	1.6		612
		16#	3.1	1.6		984
		25#	4.8	1.6		2040
		17#	6.4	1.6		3480
		18#	7.9	1.6		4560
	LP25-6	2.4*2.4	2.4	2.4	350	420
		3.2*2.4	3.2	2.4		720
		15#	4.8	2.4		1680
		24#	6.4	2.4		2560
		35#	7.9	2.4		3300
		36#	9.6	2.4		4000
	LP25-6-H	2.4*2.4	2.4	2.4	350	455
		3.2*2.4	3.2	2.4		700
		15#	4.8	2.4		1505
		24#	6.4	2.4		2345
		35#	7.9	2.4		3255
		36#	9.6	2.4		4500
	YZ25L	15#	4.8	2.4	600	1800
		24#	6.4	2.4		3000
		35#	7.9	2.4		4200
		36#	9.6	2.4		6000
	KZ25	15#	4.8	2.4	600	1800
		24#	6.4	2.4		3000
		35#	7.9	2.4		4200
		36#	9.6	2.4		6000
	KZ25L	15#	4.8	2.4	600	1800
		24#	6.4	2.4		3000
		35#	7.9	2.4		4200
		36#	9.6	2.4		6000

Test conditions:

1. Flow data testing environments for normal temperature 20-25℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the heads are not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end +outlet end +test end)

The above data test environment for normal temperature and pressure, the test fluid is water. The data is just for reference. Any questions, please feel free to contact us Chonry Peristaltic pump manufacturer.
