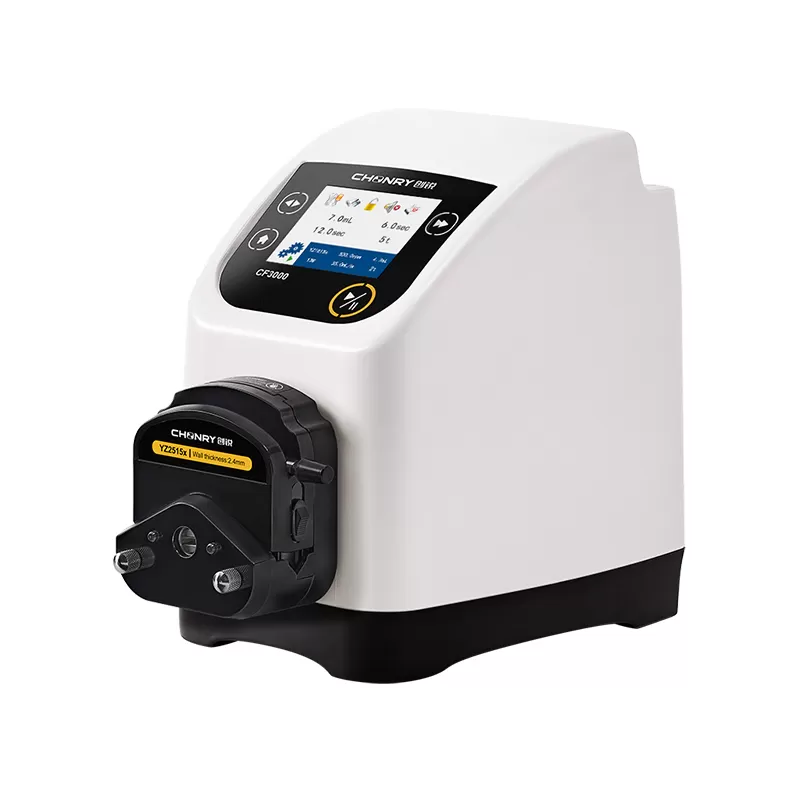

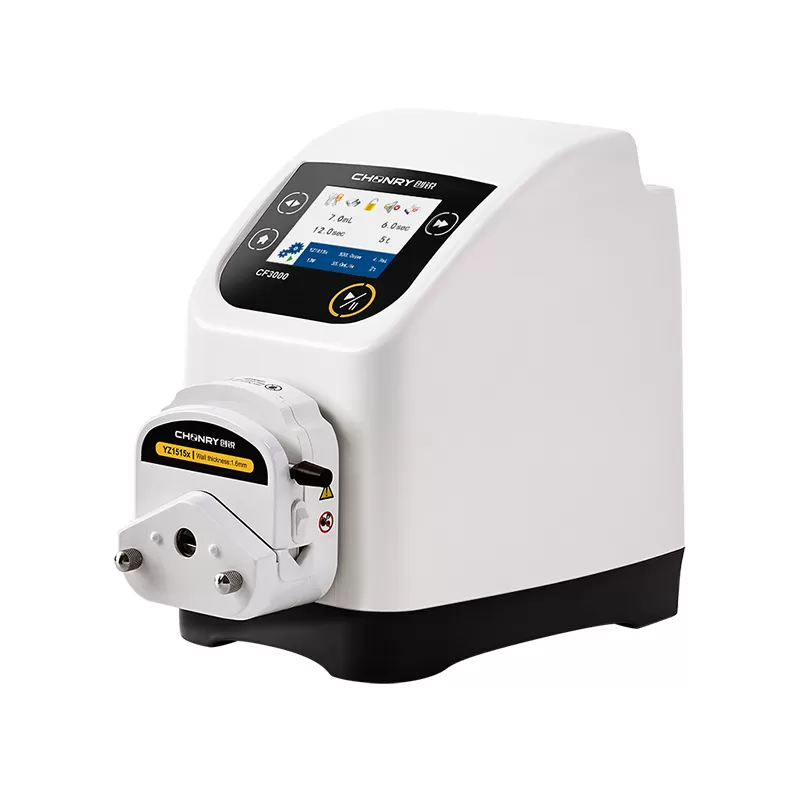

CF3000 Laboratory Chemical Peristaltic Pump 0.007~1140mL/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

CF3000 peristaltic pumps can be used for laboratory chemical transfer and dispensing. The flow rate is 1140ml/min. It adopts an engineering plastic shell. Anti-corrosion. CF3000 series peristaltic pumps adopt a 3.5-inch color display with touch screen control. The speed range is 0-300rpm. The max flow rate is 1140ml/min. Support RS485/MODBUS communication protocol, analog control, and foot switch control. It is the ideal choice for laboratory instruments and industrial.

Features:

LED touch screen, English display, convenient and fast

Data storage, 8 sets of data can be stored for users

Adopts multi pump heads, YZ series pump heads can be loaded.

Support multi-channels

Suction back function to prevent dripping liquid

With multiple working modes, the CF3000 series peristaltic pumps can be used for liquid transferring and dispensing. High precision, repeated timing, and quantitative filling.

Support RS485/MODBUS communication protocol, analog control, and foot switch control.

Applications:

It is used in the packaging of testing reagents, medicines, and other fluids, food filling, laboratory, and other fields.

Drive Model	CF3000
Max Speed	300rpm(reversible)
Max Flow	1440ml/min
Speed Resolution	0.1rpm
Display Method	Color LCD Display (EN and CN optional)
Speed mode	Touch screen adjustment
Timing range	0.1s-9999min
Quantitative range	0.001mL-9999L
Filling times	0-9999t
Back suction angle	10°-720° (0° means no back suction)
Back suction Speed	10-300rpm
Power	＜35W
Drive size	231185.5248mm
Power supply	AC220V±10% (standard) or AC110V±10% (optional)
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed	*Peristaltic Pump Tube (IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	CF3000	300	21	81	153	246	510	870	1140
YZ15m		300	21	81	153	246	510	870	1140
YZ151ma		300	21	81	153	246	510	870	1140
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	CF3000	300	510			870
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	CF3000	300	81			246		510
			*24#(6.42.4)**
ZN25	CF3000	300	870

CF Series Peristaltic Pump -Brochure Engineer plastic shell. Anti-corrosion. Touchscreen operation. Liquid transfer. Liquid filling. Multi-function.

CF Series Pump Head/Tube Flow Parameter Table
