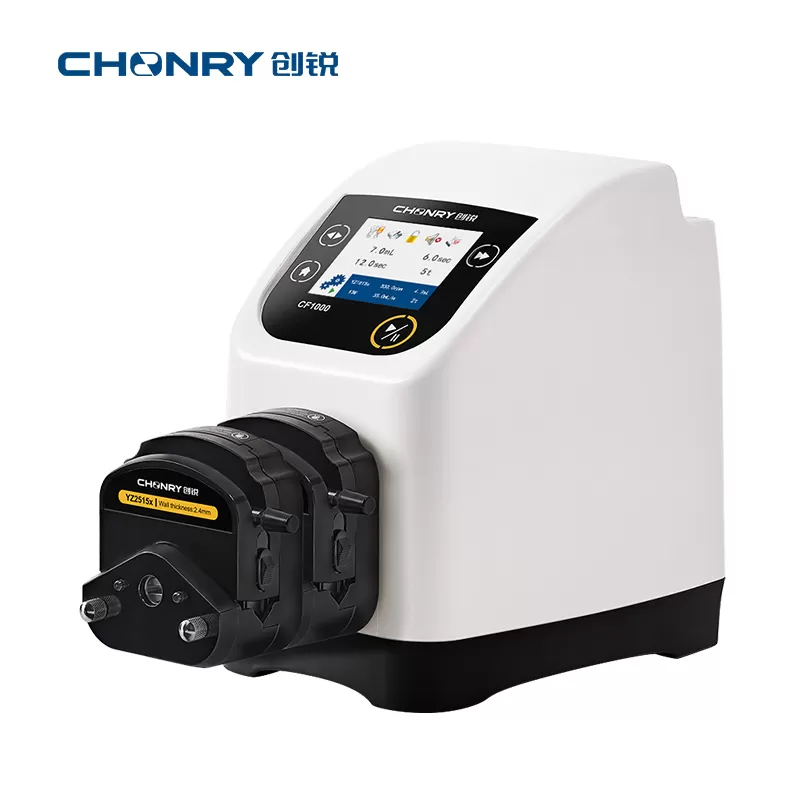

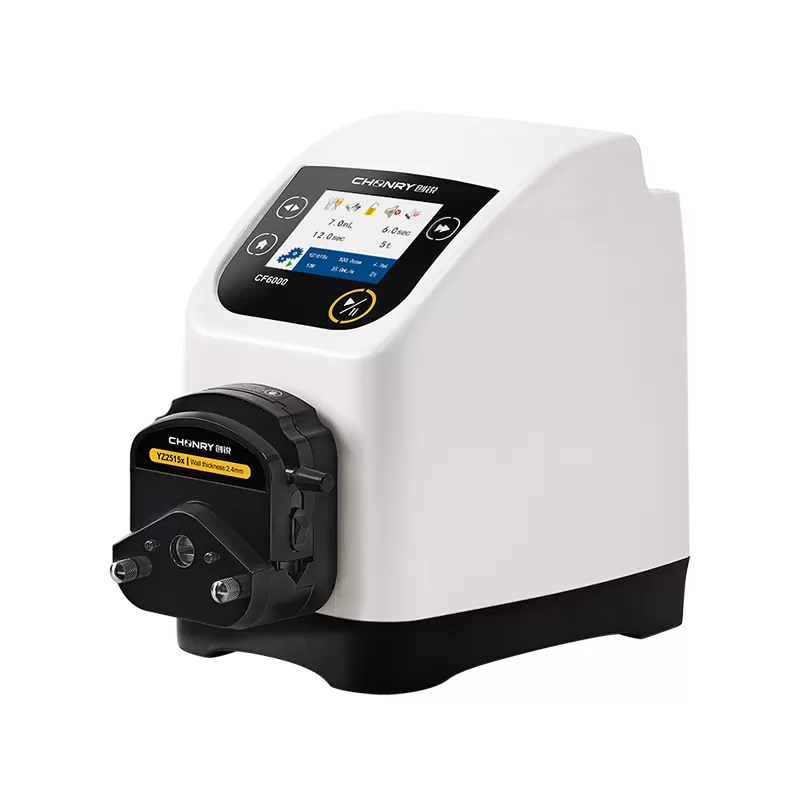

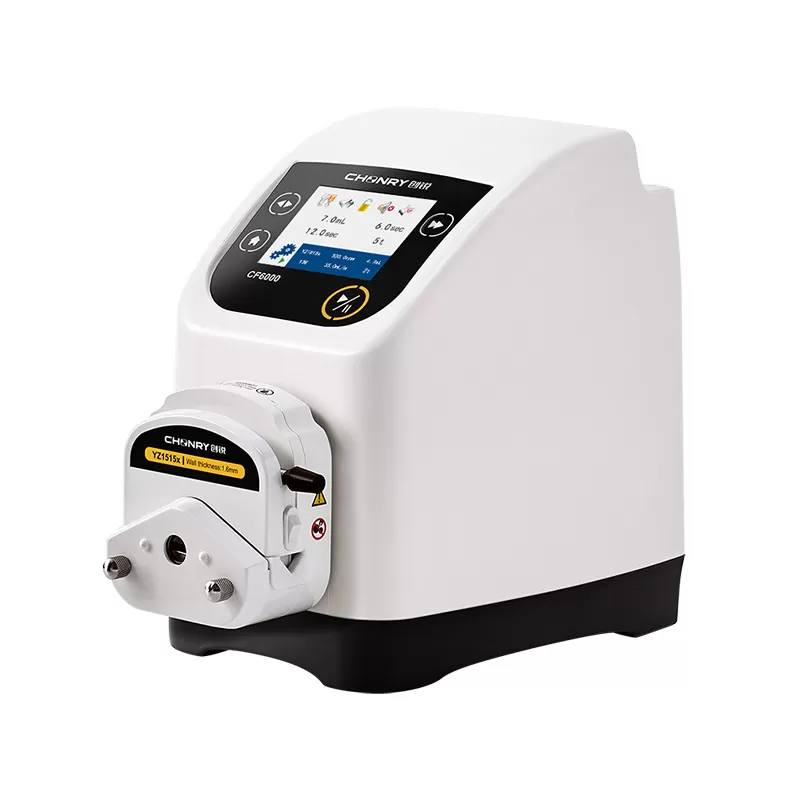

CF6000 High Precision Peristaltic Pump 2280ml/min Chromatography Pump

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

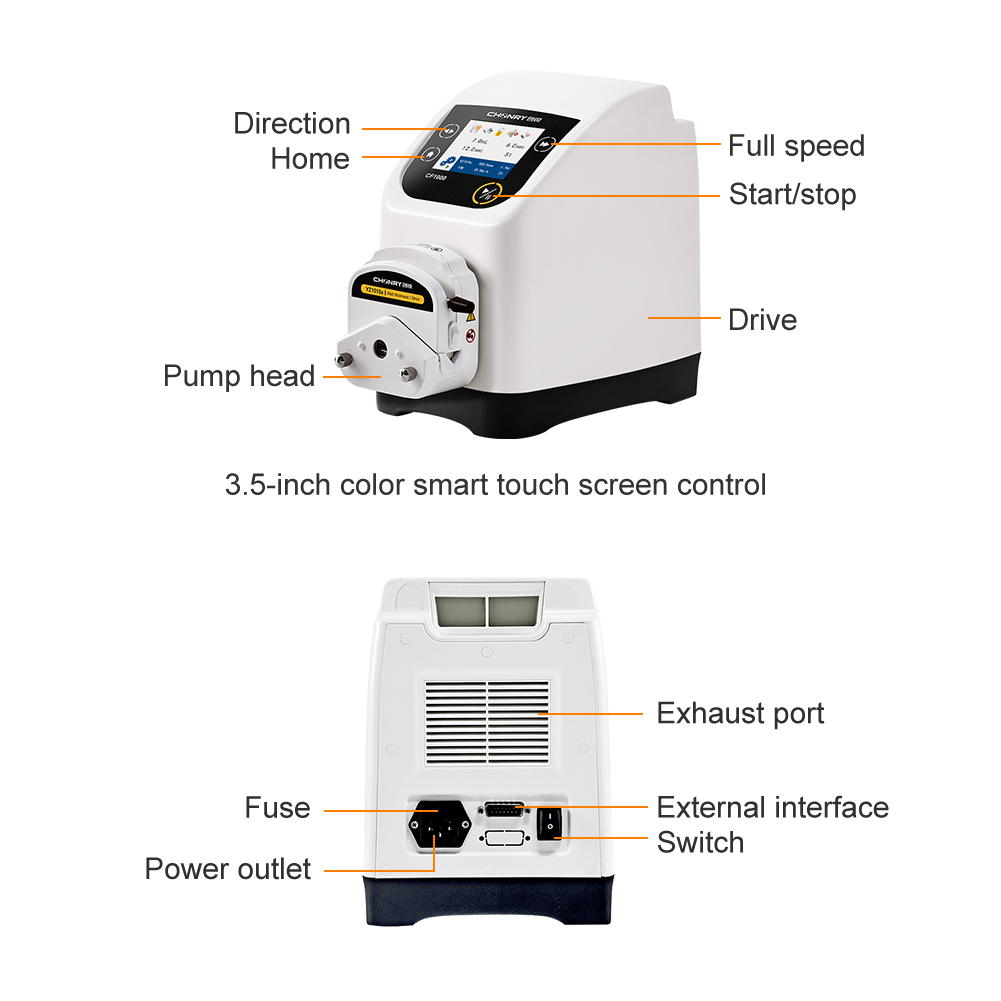

CF6000 peristaltic pump has multiple functions. It realizes liquid transferring and dispensing, performs repeated timing and quantitative fluid filling. The CF6000 peristaltic pump adopts engineering plastic housing. Durable and anti-corrosion. 3.5-inch touch screen. Visual display. Unique data storage function and Power-off memory function. The flow rate is 0.007-2280ml/min and the speed is 600rpm.

Features:

LED touch screen, English display, convenient and fast
Data storage, 8 sets of data can be stored for users
Adopts multi-pump heads, YZ1515x, and YZ2515x series pump heads can be loaded.
Support multi channels
Suction back function to prevent dripping liquid
With multiple working modes, the CF6000 series peristaltic pumps can be used for liquid transferring and dispensing. High precision, repeated timing and quantitative filling.
Support RS485/MODBUS communication protocol, analog control, and foot switch control.

Applications:

It is used in the testing of reagents dispensing, medicines, and other fluids, food filling, laboratory, and other fields.

CF6000 High Precision Peristaltic Pump Chromatography

Drive Model	CF6000
Max Speed	600rpm(reversible)
Max Flow	2280ml/min
Speed Resolution	0.1rpm
Display Method	Color LCD Display (EN and CN optional)
Speed mode	Touch screen adjustment
Timing range	0.1s-9999min
Quantitative range	0.001mL-9999L
Filling times	0-9999t
Back suction angle	10°-720° (0° means no back suction)
Back suction Speed	10-300rpm
Power	＜50W
Drive size	231185.5248mm
Power supply	AC220V±10% (standard) or AC110V±10% (optional)
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed	*Tube Mode(ID Wall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	CF6000	600	42	162	306	492	1020	1740	2280
YZ15m		600	42	162	306	492	1020	1740	2280
YZ15ma		600	42	162	306	492	1020	1740	2280
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	CF6000	600	1020			1740
			*14#（1.61.6）**			*16#（3.11.6）**		*25#（4.81.6）**
ZN15	CF6000	600	162			492		1020
			*24#(6.42.4)**
ZN25	CF6000	600	1740

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

CF Series Peristaltic Pump -Brochure Engineer plastic shell. Anti-corrosion. Touchscreen operation. Liquid transfer. Liquid filling. Multi-function.

CF Series Pump Head/Tube Flow Parameter Table
