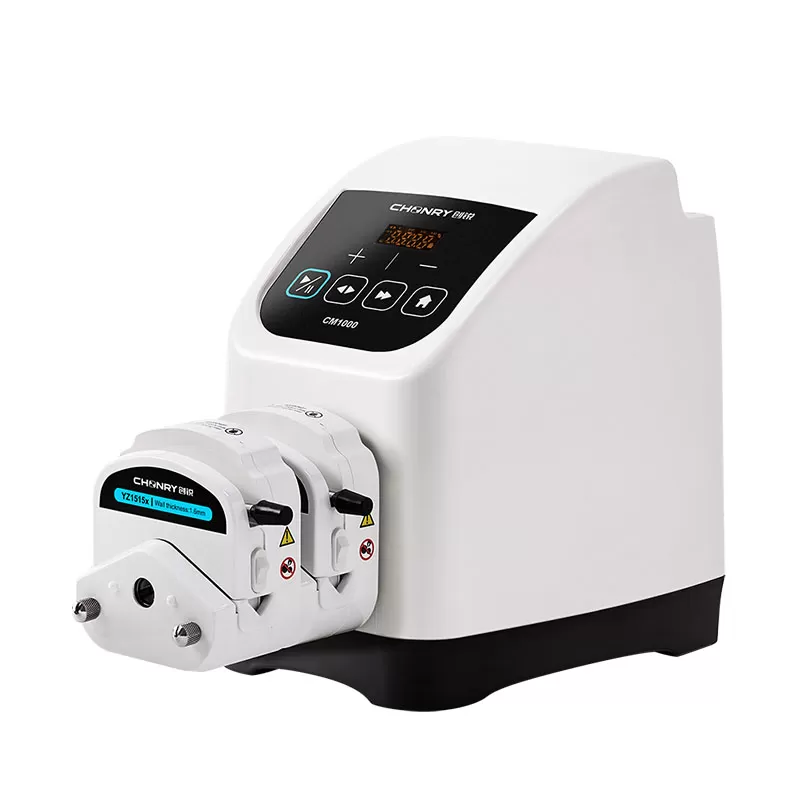

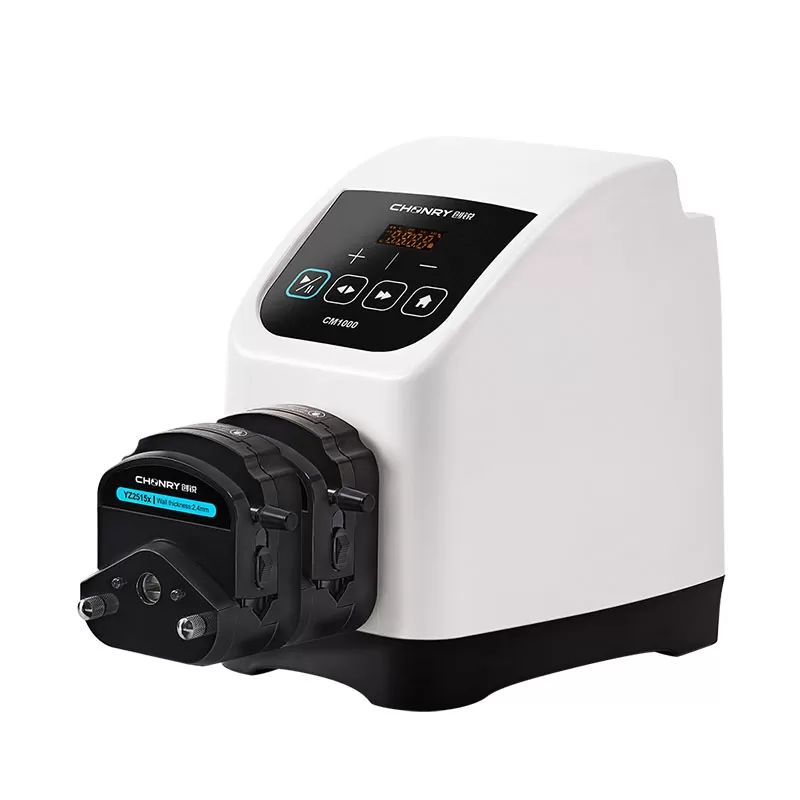

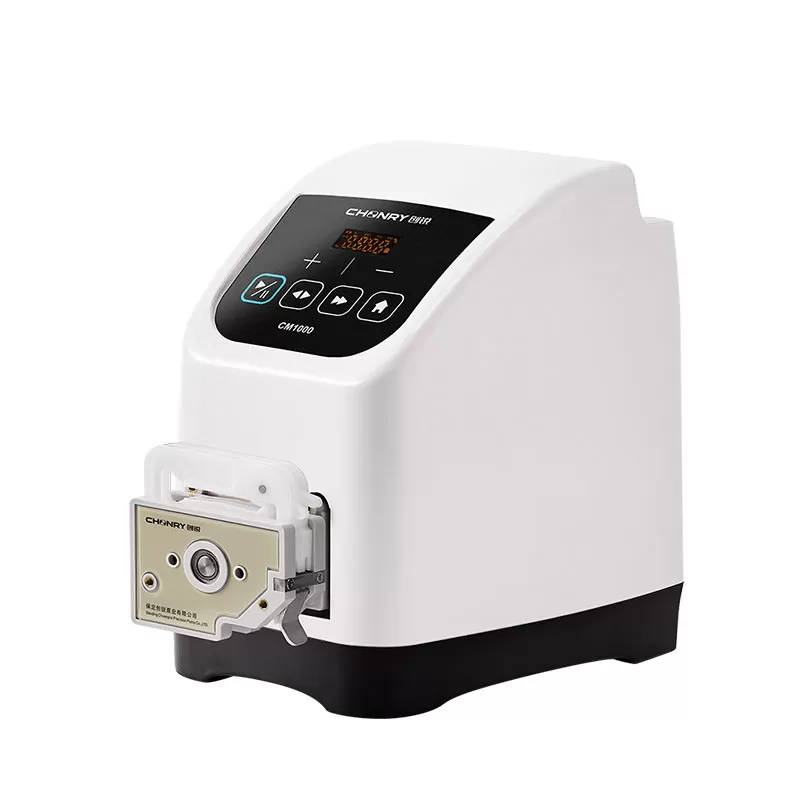

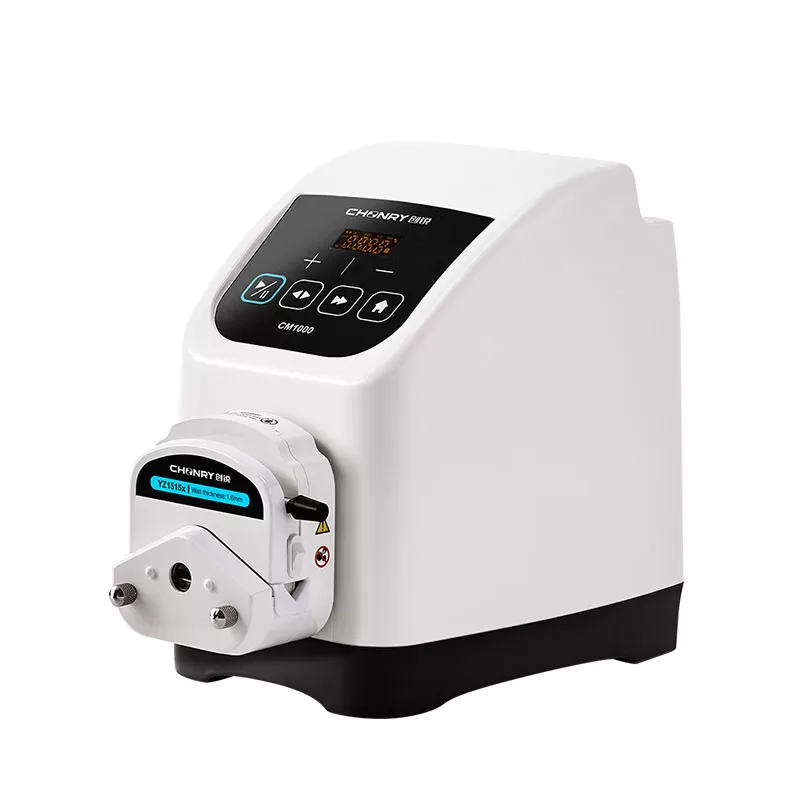

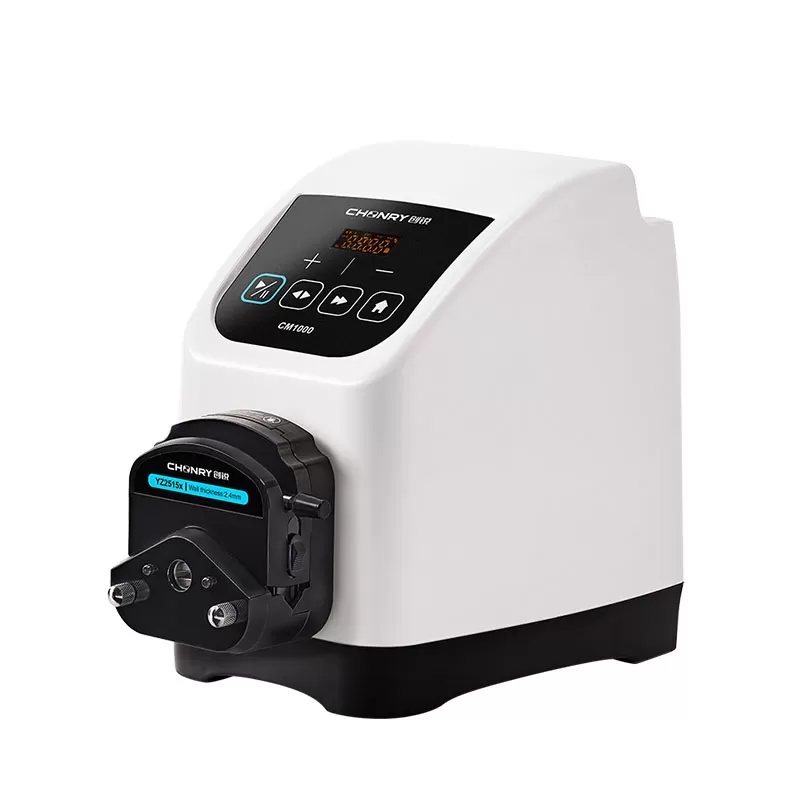

CM1000 Low Flow Peristaltic Pump Liquid Dosing Pump 480ml/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

CM1000 low flow peristaltic pump liquid dosing pump 480ml/min. Easy button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc. It supports different external controls such as RS485/MODBUS communication protocol. It is suitable for a variety of pump heads such as YZ series, TX series, DG series, etc., to meet different work needs.

Specification

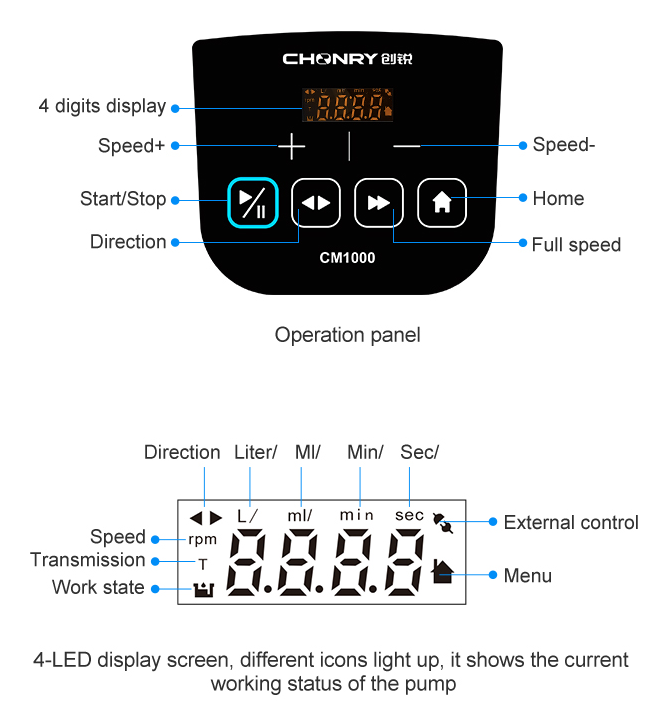

Easy to operate

Simple appearance, key operation, 4 positionsLED display flow or speed more intuitive

Power off save

Can automatically save the last power-down control parameter

External control function

Support RS485/MODBUS communication protocol, analog control, foot switch control

Liquid volume calibration

The flow correction is carried out according to the target value and the actual value, Ensure transmission accuracy

One key full speed

Features a convenient full-speed button to fulfill or empty pipes quickly

Adapt to multiple pump heads

Various pump heads such as YZ series, DG series, and TX series can be installed

Application

Used in photovoltaic, environmental protection, mineral processing, mechanical packaging, solvent extraction and other industries.

CM1000 Digital Button Type Peristaltic Pump

Drive model: CM1000

Max speed: 100rpm(reversible)

Speed resolution: 0.1rpm

Max flow: 480mL/min

Display method: 4-LED display

Speed mode: Membrane keys

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Power: ＜22W

Drive size: 225*185*248mm

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed(rpm)	Peristaltic Pump Tubing *(IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	CM1000	100	7	27	51	82	170	290	380
YZ15m		100	7	27	51	82	170	290	380
YZ15ma		100	7	27	51	82	170	290	380
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	CM1000	100	170			290
			*0.50.8**	*11**	*21**	*2.40.8**		*31**
DG	CM1000	100(10)	1.5	4	13	17		27
DG		100(6)	2	6	19	24		36
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	CM1000	100	27			82		170
			*24#(6.42.4)**
ZN25	CM1000	100	290

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
