CT3000 series is a Lab intelligent flow type peristaltic pump with a beautiful appearance and a 3.5-inch color touch screen with dual display in Chinese and English. It has a unique flow calibration function and a variety of working modes to meet different working needs. CT3000 peristaltic metering pump can be loaded with YZ series, TX series, and DG series pump heads. The pump heads can be cascaded. Support a variety of external control methods such as RS485/MODBUS communication protocol.

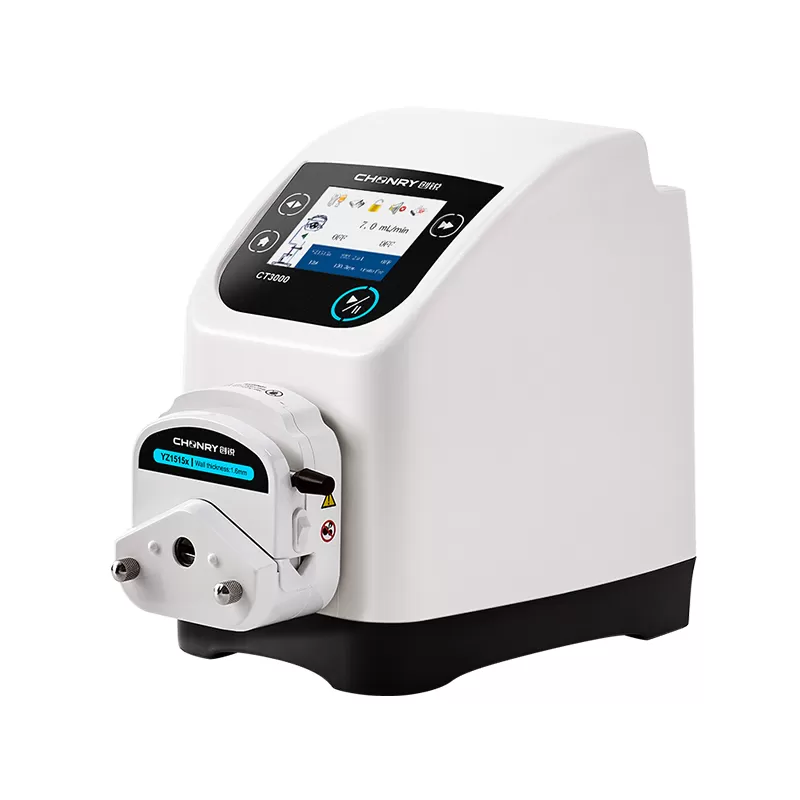

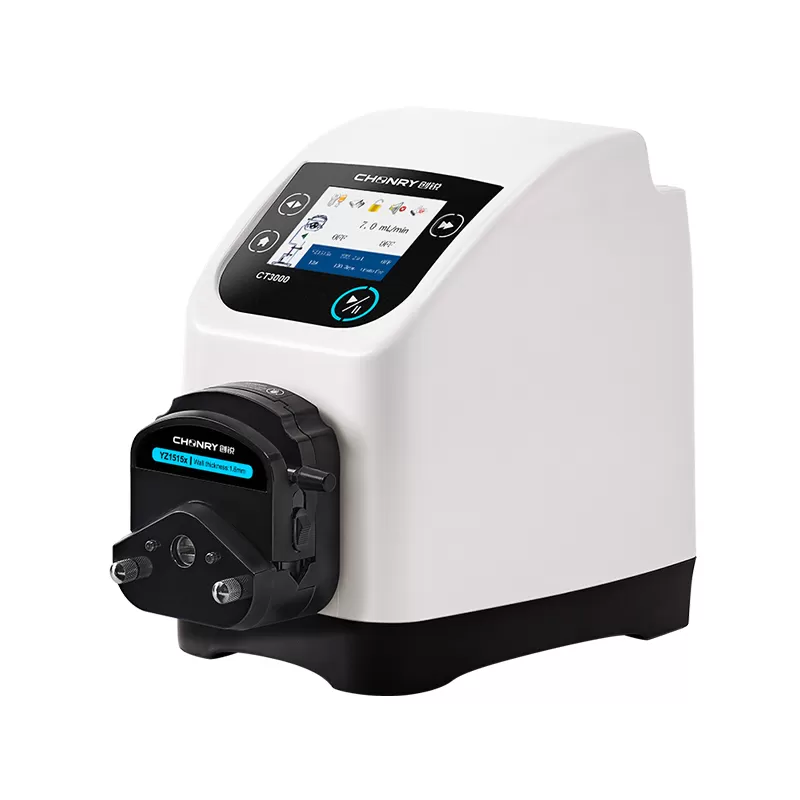

CT3000 Lab Intelligent Flow Peristaltic Pump

Features:

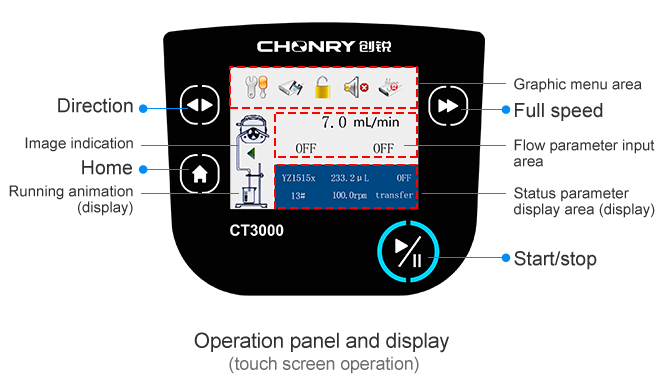

- LCD touch: 3.5-inch color LCD, touch screen control, easy to operate.

- Multiple working modes: Transmission mode, timing mode, quantitative mode, timing quantitative mode

- Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision

- Data storage: 9 sets of data can be stored for users

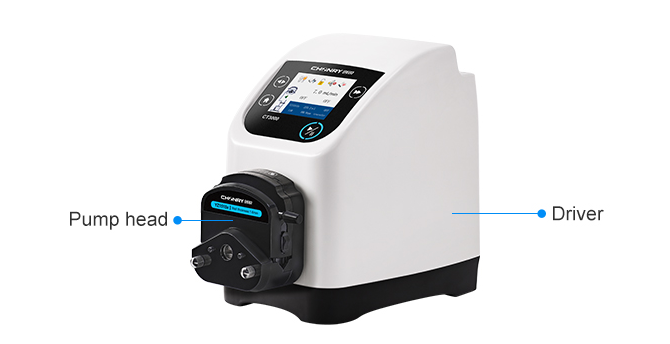

- Adapt to multiple pump heads: YZ, DG, TX series pump heads can be installed, and pump heads can be cascaded

- Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control

Application:

CT3000 Peristaltic metering pumps are widely used in Laboratory, biological analysis, medical treatment, environmental protection, and other fields

Drive model: CT3000

Max Speed: 300rpm(reversible)

Max Flow: 1440mL/min

Power: <35W

Speed resolution: Speed resolution 0.1rpm

Speed mode: Touch screen adjustment

Display method: Color LCD display (Chinese and English optional)

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Suction angle: 10°-720° (0° means no back suction)

Suction speed: 10-300rpm

Power supply: AC220±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive size: 225X186X248(mm)

Pump head	Model	Max Speed	*Peristaltic Pump Tube (IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	CT3000	300	21	81	153	246	510	870	1140
YZ15m		300	21	81	153	246	510	870	1140
YZ151ma		300	21	81	153	246	510	870	1140
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	CT3000	300	510			870
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	CT3000	300	81			246		510
			*24#(6.42.4)**
ZN25	CT3000	300	870

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
