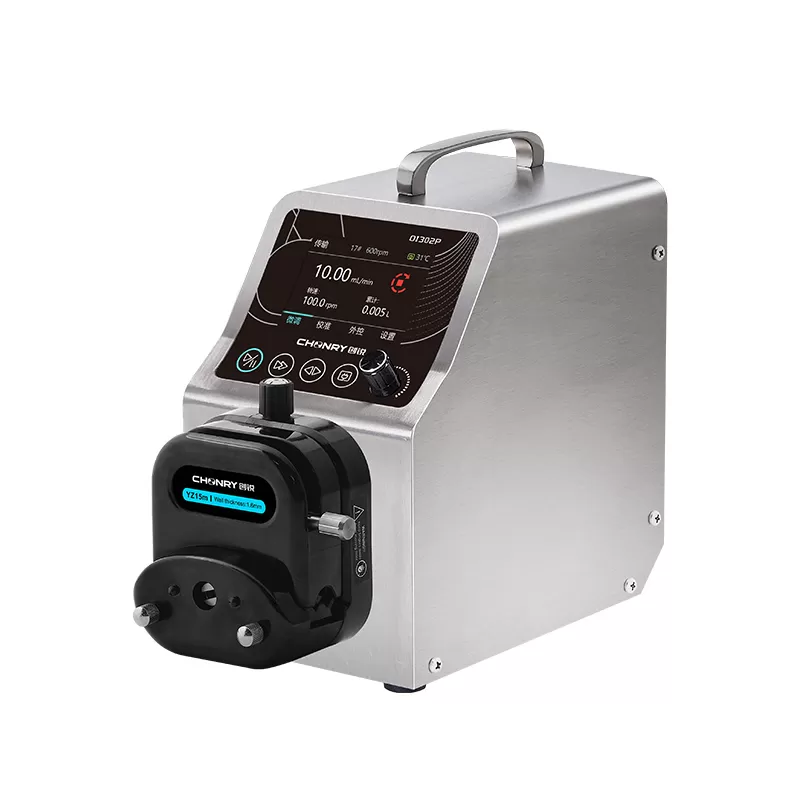

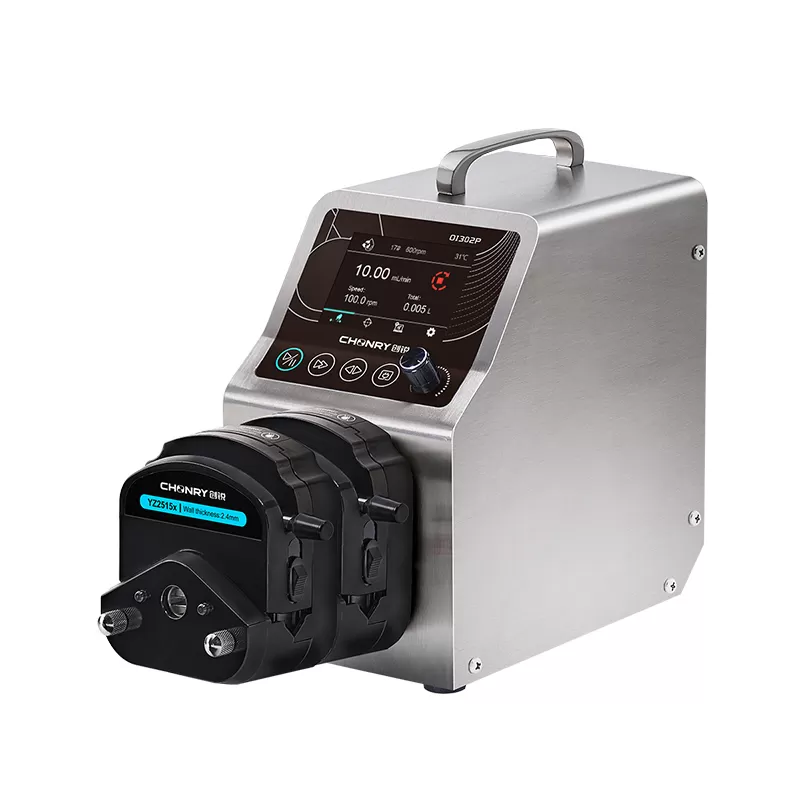

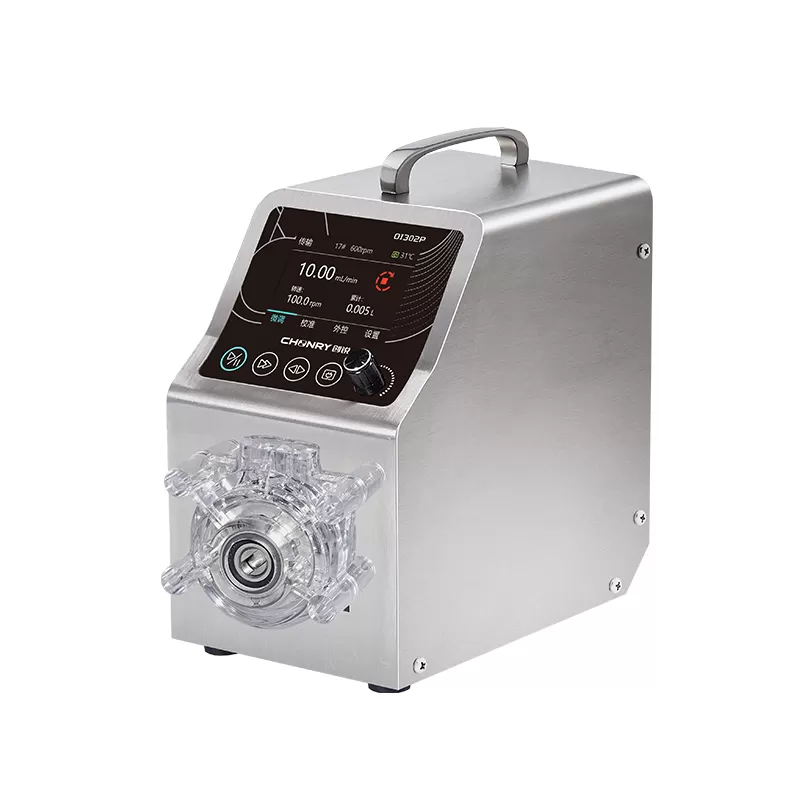

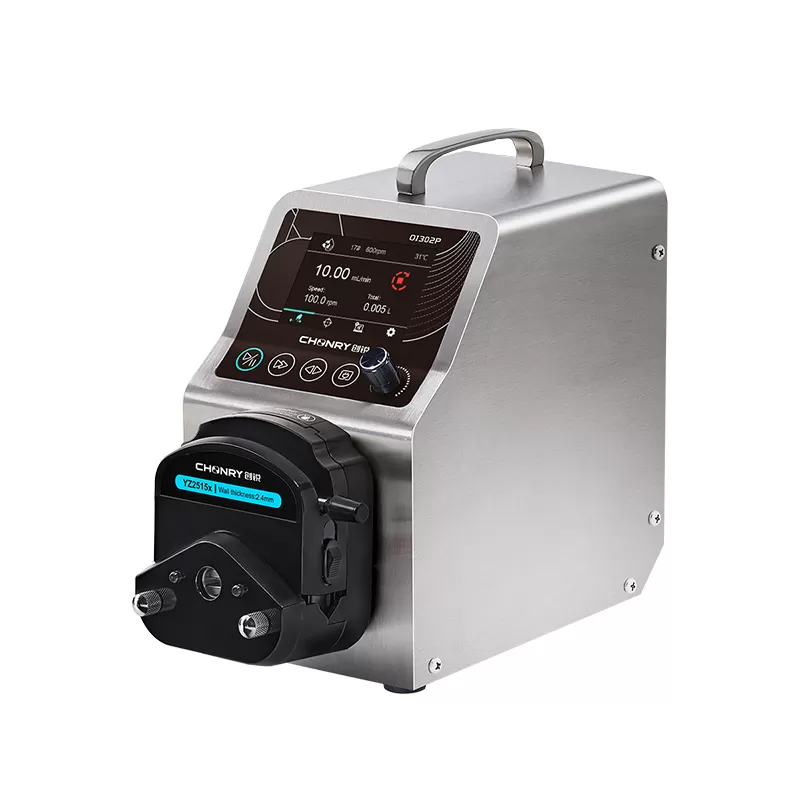

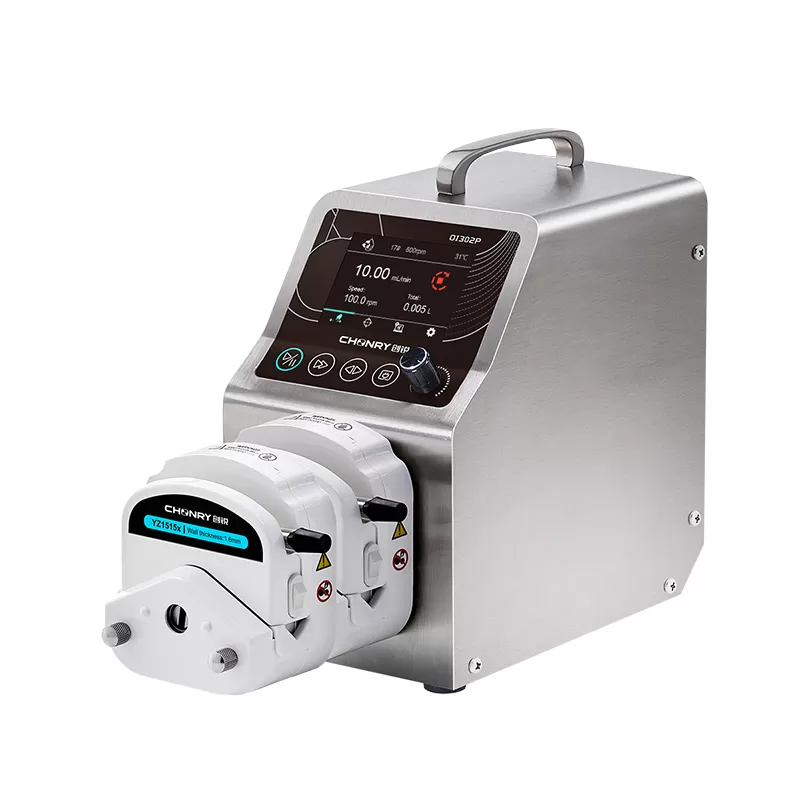

OI302P is a multi-functional dispensing peristaltic pump. The flow rate is 0.007~2280mL/min. OI302P peristaltic pumps have three working models- liquid transfer, dispensing filling, and timed filling. Color screen intuitive display. Easy knob operation. Convenience. Long lifespan. It supports the precision micro fluid transfer and automatically records the current data for subsequent automatic dispensing filling. Various pump heads are loaded, such as the YZ series and DG series. Support the RS485MODBUS communication protocol, analog control, and foot pedal control.

Features:

Stainless steel shell, high strength, corrosion resistance, easy to clean.IP31 protection.

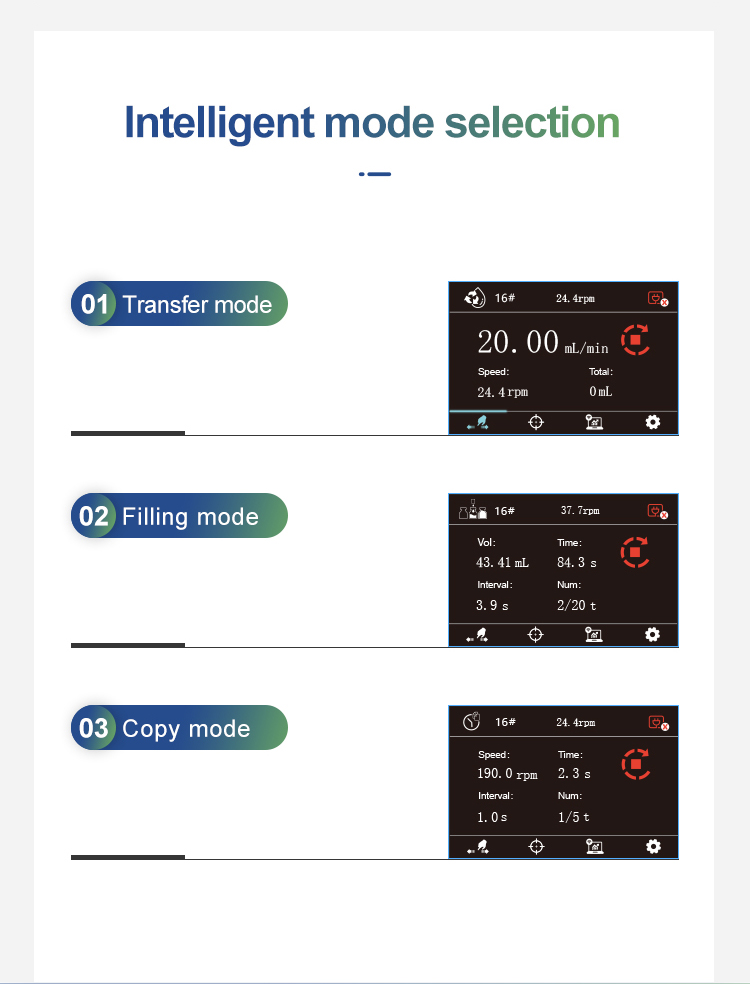

Support multi-working models, liquid transfer, dispensing filling, and timed filling.

Multi-pump heads to choose from, meeting different flow rate requirements. It loads with YZ, TX, and DG pump heads.

Stepper motor, stable flow, support multi-channel

Support RS485/MODBUS communication protocol, analog control, foot switch control.

Applications:

OI302P Peristaltic pump can use in chemical, mineral processing, photovoltaic, laboratory, etc. industries, filling of various liquids

OI302P Laboratory Peristaltic Pump

Drive Model	OI302P
Max Speed	300rpm(reversible)
Max Flow	2280mL/min
Speed resolution	0.1rpm
Adjust speed	Digital knob + button to adjust the speed
Display method	Colour display showing current working status
Suction angle	0° - 3600° (0° for no reabsorption)
Suction speed	0-300rpm
Power supply	AC 100-240V
Power frequency	50Hz/60Hz
Power	＜60W
External control method	Inputs: Start/stop control/direction control/speed control (0-5V, 0-10V, 0-10Khz, 4-20mA optional) RS485 serial communication
External control method	Output: Start/stop/direction/analogue (0-5V, 0-10V, 4-20mA, 0-10Khz)
Drive size	218.5×142×235.2（mm）
Protection grade	IP31(Indoor use, avoid long-term exposure to UV rays)

Pump Head Flow Parameter Table

Model	Pump Head	Max Speed(rpm)	Max Flow(mL/min)
			13#(0.8*1.6)	14#(1.6*1.6)	19#(2.4*1.6)	16#(3.1*1.6)	25#(4.8*1.6)	17#(6.4*1.6)	18#(7.9*1.6)
OI302P	YZ1515X	300	21	81	153	246	510	870	1140
	YZ15m	300	21	81	153	246	510	870	1140
	TX315	300	21	72	156	288	624	1020	1440
	LP15-6	300	42	162	306	492	1020	1740	2280
			15#(4.8*2.4)				24#(6.4*2.4)
	YZ2515X	300	510				870
			15#(4.8*2.4)		24#(6.4*2.4)		35#(7.9*2.4)		36#(9.6*2.4)
	YZ25m	300	510		870		1140		1500
			14#(4.8*2.4)			16#(6.4*2.4)		25#(7.9*2.4)
	ZN15	300	81			246		510
			24#(6.4*2.4)
	ZN25	300	870

P Series Peristaltic Pump Brochure P series peristaltic pump is high precision. OI102P, OI302P, and OI602P for optionals. The flow rate range is 0-4560ml/min. Used for laboratory, and industrial. Call us to get more information.

P Series Pump Head/Tube Flow Parameter Table
