ON103C Benchtop Peristaltic Pump Low Flow Rate Cheap Price 380ml/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

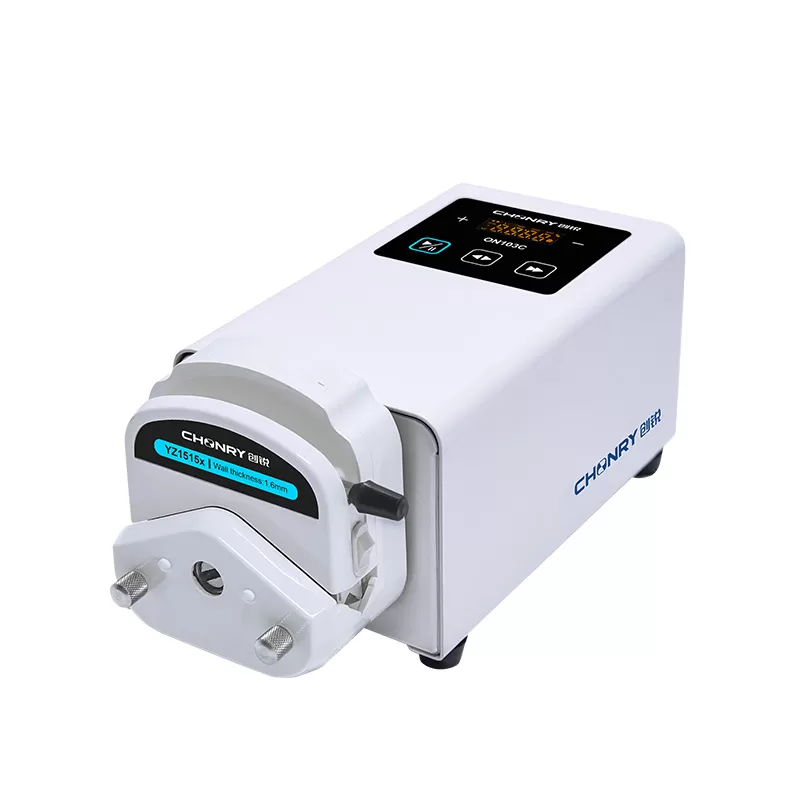

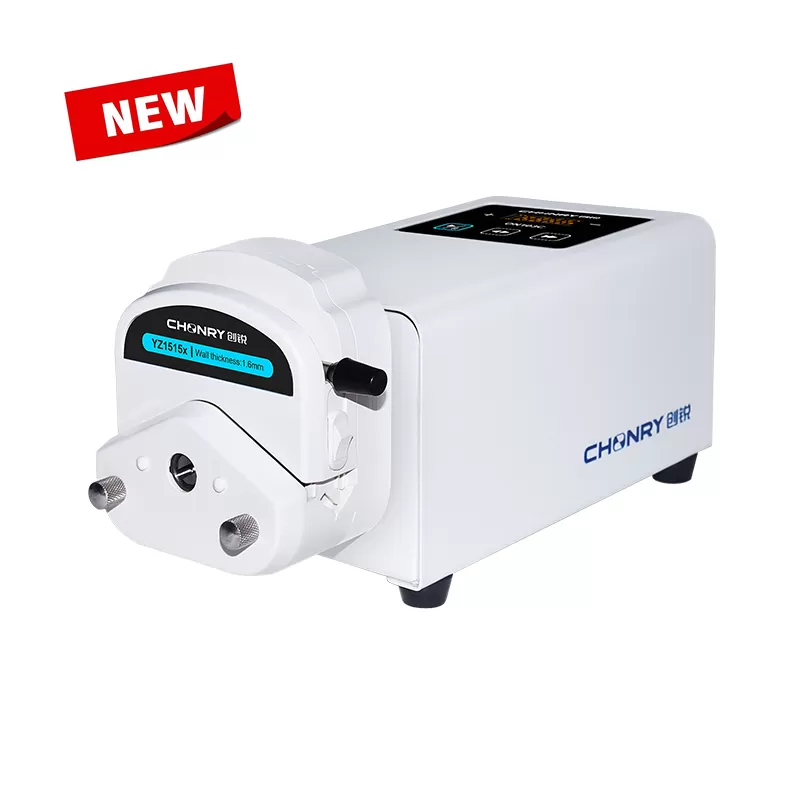

ON103C benchtop peristaltic pump is a medium flow digital transfer peristaltic pump. Compact footprint requiring minimal benchtop space. It adopts key operation, 4-digit LED digital display of current speed. ON103C peristaltic pump has various functions such as power-off save, direction control, one-key full speed, etc. It supports different external controls such as RS485/MODBUS communication protocol. It is suitable for a variety of pump heads such as YZ、DG、ZN series, etc., to meet different work needs. This pump is suitable for laboratory liquid transfer.

Advantages:

Compact Size:

Benchtop peristaltic pumps. Compact and small size for space-saving use.

Beautiful and durable

The surface of the shell adopts an electrostatic anti-corrosive spraying treatment, pearl white. Visually beautiful, delicate touch, anti-corrosion and durable.

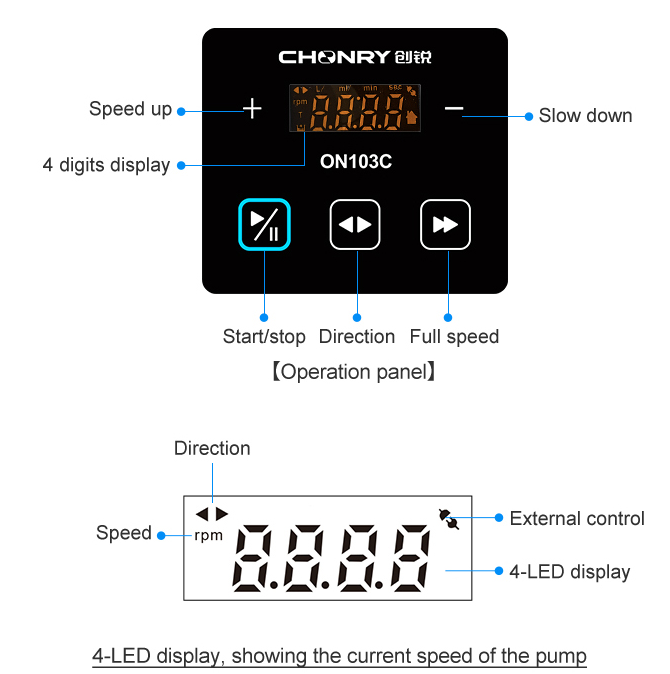

Easy to operate

Easy operation with physical buttons for start/stop/direction/rpm control.

Low noise operation

Low noise and vibration during pump operation, experimental environment.

External control function

Support RS485/MODBUS communication protocol, the protocol can also be customized according to user requirements.

Adapt to multiple pump heads

Various pump heads such as YZ, DG, and ZN series pump heads can be installed.

Applications:

It is used for small and medium flow transmission in hydroponics, laboratory, medical sampling, etc.

Drive model	ON103C
Max Speed	100rpm(reversible)
Speed resolution	0.1rpm
Max flow	380ml/min
Speed mode	Membrane key speed
Display method	4-digit LED display current speed or flow
Working power	AC 100V-240V, 50Hz/60Hz
Power consumption	<20W
Drive size	200X120X110.5(mm)
Drive weight	2.3kg
Protection class	IP31
External control interface(the function needs to be customized)	Start/stop control/direction control/speed control (0-5V, 0-10V, 4-20mA, 0-10kHz optional) RS485 serial communication

Pump head/hose flow parameter table:

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

Model	Tube	ID(mm)	Wall thickness(mm)	Max flow(ml/min)	Max speed	Applicable Pharmed Tube
YZ1515X	13#	0.8	1.6	7	100	13#, 14#19#, 16#
	14#	1.6	1.6	27	100
	19#	2.4	1.6	51	100
	16#	3.1	1.6	82	100
	25#	4.8	1.6	170	100
	17#	6.4	1.6	290	100
	18#	7.9	1.6	380	100
YZ2515X	15#	4.8	2.4	170	100	Not Recommended
YZ2515X	24#	6.4	2.4	290	100	Not Recommended
DG-1(6)DG-2(6)	1*1	1	1	6	100	ID<=3mmWalll thickness:0.8-1.0mm
	2*1	2	1	19	100
	3*1	3	1	36	100
	0.5*0.8	0.5	0.8	2	100
	2.4*0.8	2.4	0.8	24	100
DG-1(10)DG-2(10)	1*1	1	1	6	100	ID<=3mmWalll thickness:0.8-1.0mm
	2*1	2	1	19	100
	3*1	3	1	36	100
	0.5*0.8	0.5	0.8	2	100
	2.4*0.8	2.4	0.8	24	100
YZ15S-1	13#	0.8	1.6	4.8	100	Not Recommended
	14#	1.6	1.6	18	100
	19#	2.4	1.6	38	100
	16#	3.1	1.6	62	100
	25#	4.8	1.6	126	100
YZ15S-2	13#	0.8	1.6	4.8	100	Not Recommended
	14#	1.6	1.6	18	100
	19#	2.4	1.6	38	100
	16#	3.1	1.6	62	100
ZN15-14	14#	1.6	1.6	21	100	Not Recommended
ZN15-16	16#	3.1	1.6	82	100
ZN15-25	25#	4.8	1.6	170	100
ZN15-17	17#	6.4	1.6	290	100
ZN25-25	25#	6.4	2.4	294	100	Not Recommended

ON103C Medium Flow Digital Transfer Peristaltic Pump Brochure Laboratory peristaltic pump. 380ml/min. Compact size. Low noise operation.

ON103C Pump Head/Tube Flow Parameter Table
