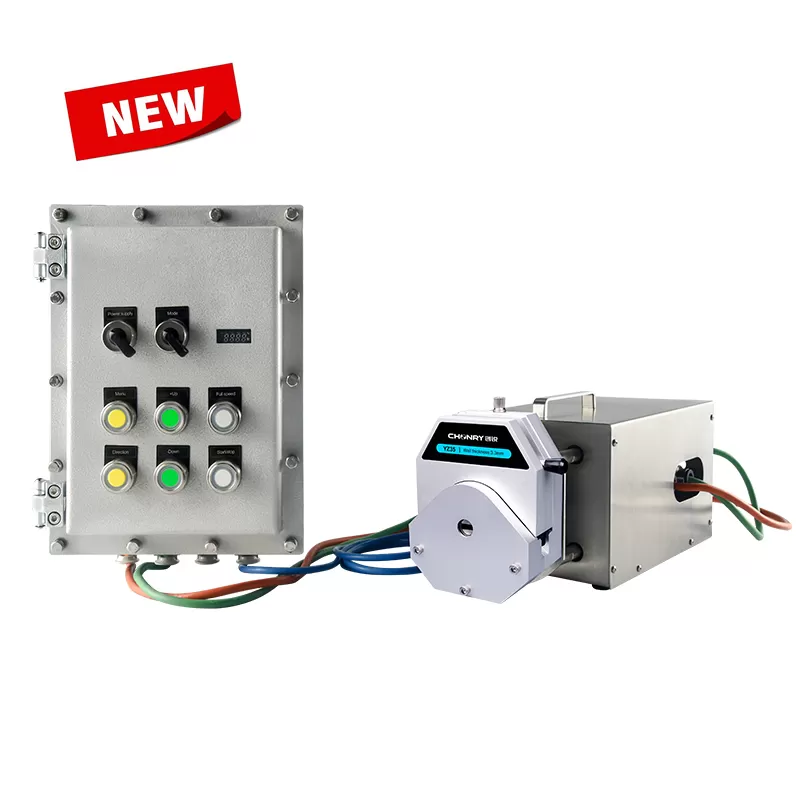

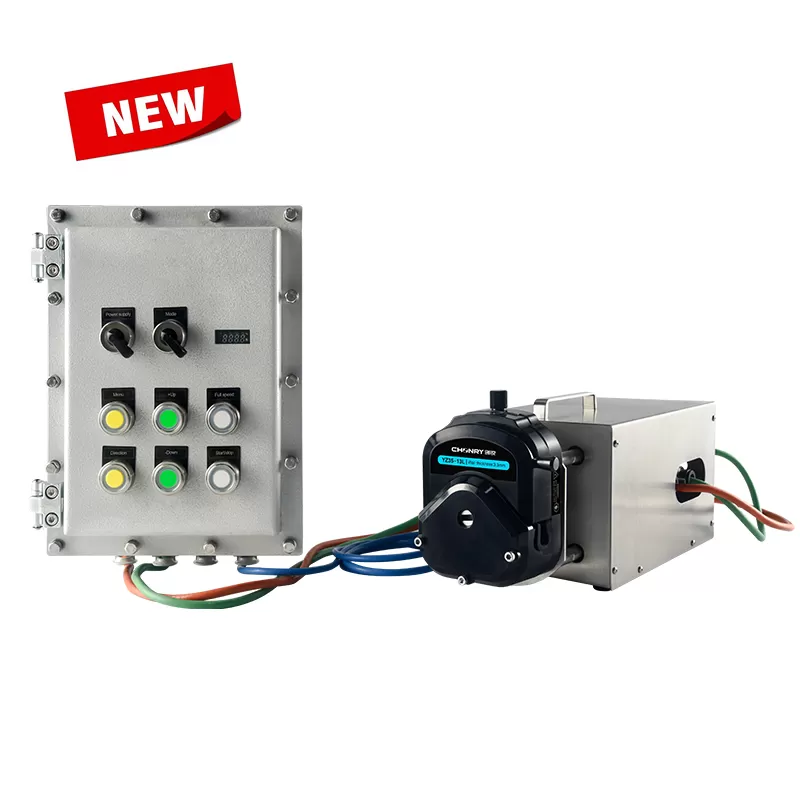

GFB600C Explosion-proof Motor Peristaltic Pump 12L/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

GFB600C explosion-proof motor peristaltic pumps adopt servo motor with high protection grade - IP65 and explosion-proof level- ExdIIBT4. This motor is water-proof and dust-proof. 4-digit LED displays current speed and flow rate parameter. The max flow rate is up to 12L/min. Precision flow rate control. The explosion-proof peristaltic pumps are popular in the transportation of liquid chemicals in flammable and explosive industries such as chemical industry, medical industry, sewage treatment, etc.

Specification

Servo explosion-proof motor peristaltic pump, high protection grade, IP65. water-proof and dusty-proof motor.
GFB600C explosion-proof peristaltic pump adopts an intuitive 4 digital display method. You can adjust the parameters to control the speed and flow rate.
The servo motor of GFB600C explosion-proof peristaltic pumps has a high explosion-proof level ExdIIBT4.
Support MODBUS protocol, simulation control and other external control functions.
With a wide application range, the GFB600C explosion-proof peristaltic pump can be used for chemical dosing in explosion-proof production workshops, alcohol dispensing and other explosion places.

Application

Applicated in chemical industry, medical care and other industries

GFB600C Explosion-proof Motor Peristaltic Pump

GFB600C Explosion-proof Motor Peristaltic Pump Technical Parameter
Model	GFB600C Explosion-proof Motor Peristaltic Pump
Max Speed	600rpm(reversible)
Max Flow	12L/min
Speed Resolution	0.1rpm
Display Method	4-digit led displays current speed/flow
Speed Mode	Explosion-proof button to adjust the speed
Suction Angle	10°～720° (0° means no back suction)
Suction Speed	10-300rpm
Power	≤400W
Power Supply	AC220V±10%
External Control Method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Motor Protection Level	IP65
Motor explosion-proof level	ExdIIBT4

Pump Head Model	Tube	ID(mm)	Wall Thickness(mm)	Max Flow(ml/min)	Max Speed(rpm)
YZ35	73#	9.6	3.3	7400	600
YZ35	82#	12.7	3.3	12000	600
YZ35-13L	73#	9.6	3.3	7400	600
YZ35-13L	82#	12.7	3.3	12000	600
YZ35LS	73#	9.6	3.3	7400	600
YZ35LS	82#	12.7	3.3	12000	600

Test conditions:

1.Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2.The test is measured using a straight-through tube, suction range of 0.5 meters, the head is not more than 0.5 meters, the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

3. The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water.

4. The data is for reference only, please refer to the actual situation.

Product Manual - GFB600C Explosion-proof Motor Peristaltic Pump
