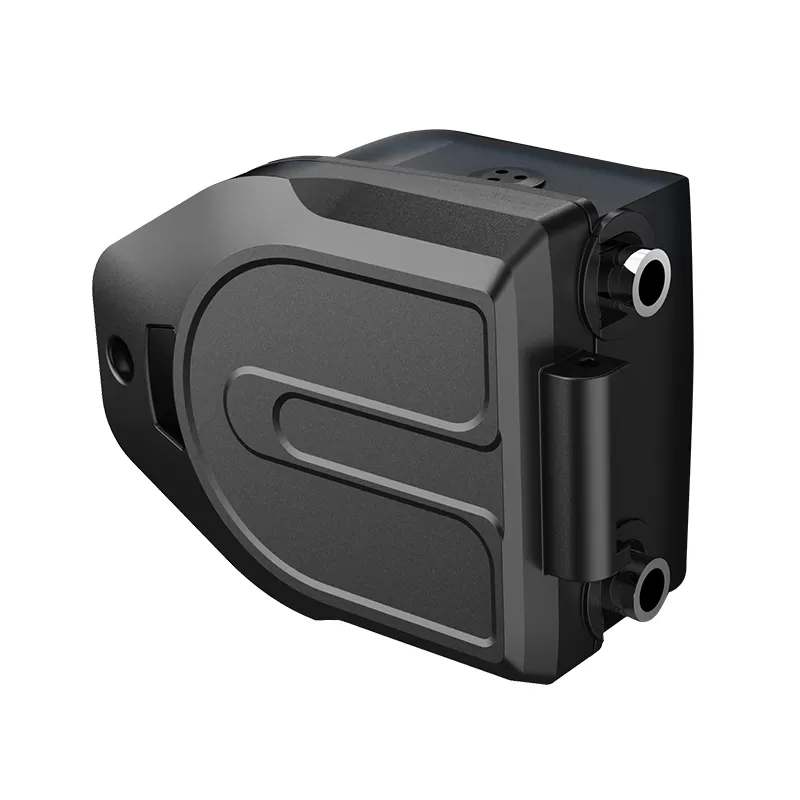

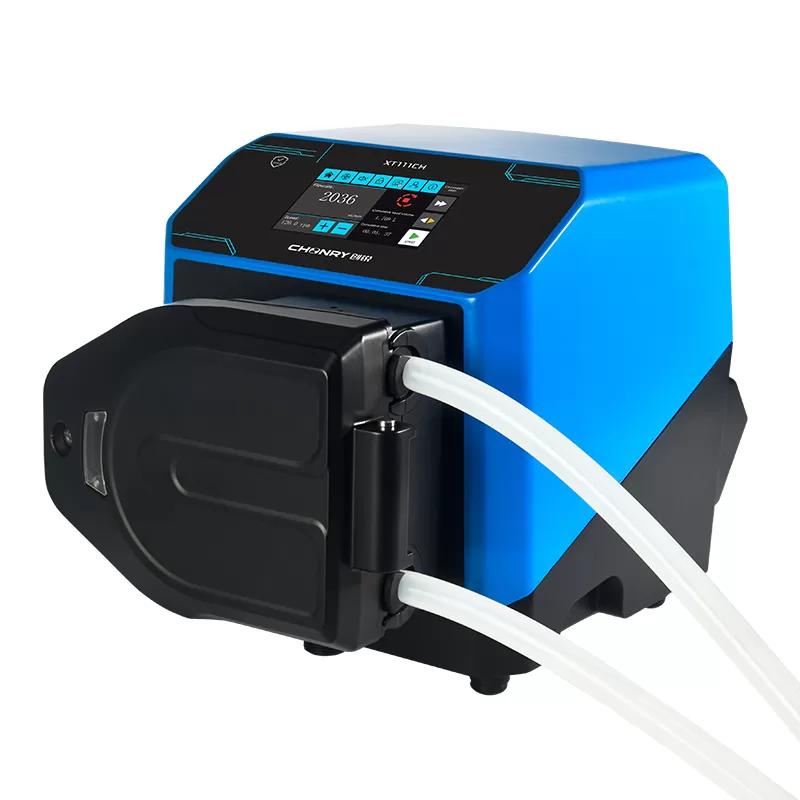

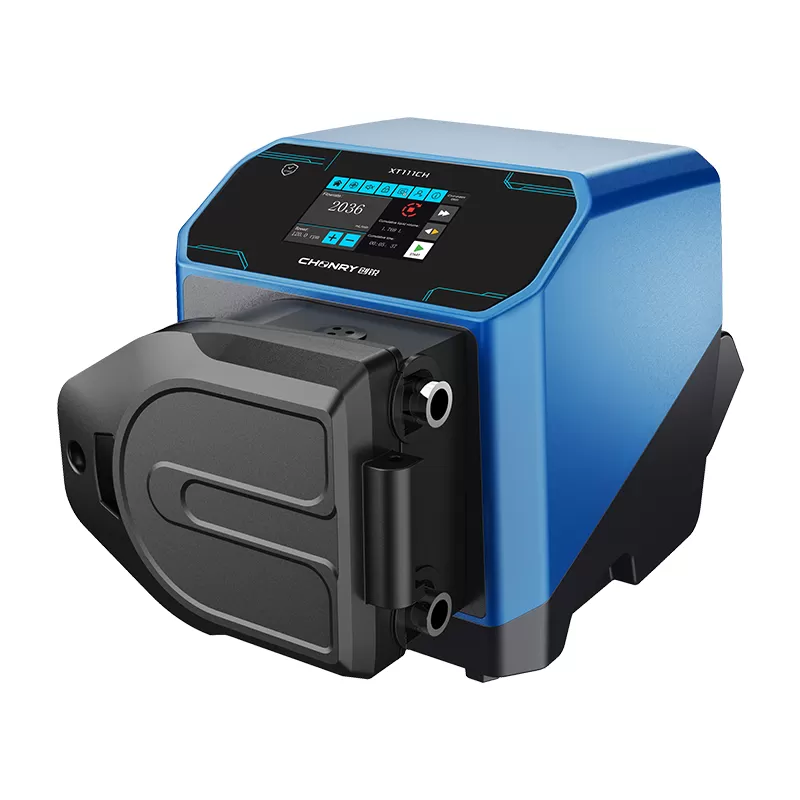

XT111CH Industrial peristaltic pump is a high protection level type with IP66. It is suitable for dust and humidity in industrial working environments. XT111CH industrial peristaltic pump realizes fast high flow rate liquid convey - high flow liquid transmission function. The pump runs continuously at the set flow rate, and displays the flow rate and pump speed on the screen. The max flow rate is up to 18L/min which will save the working time. Besides, the XT111CH high-flow peristaltic pump is compatible with multiple pump heads, GY4012RE, GY4014RE, and GY3512R pump heads. It is a built-in DP interface. Support Profibus DP communication protocol, easy to connect with other control devices also it can quickly achieve integrated configuration of automation control systems.

Features:

- IP66 high protection level for wet and dusty working environments

-Available in die-cast aluminum housing (sprayed surface), dust-proof, moisture-proof and corrosion-resistant.

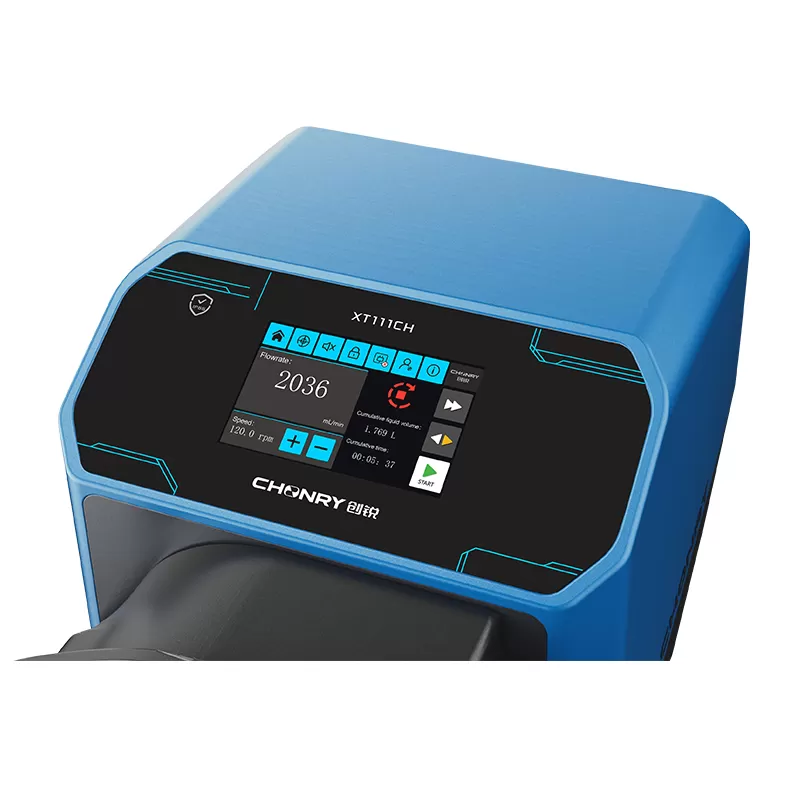

-5-inch color LCD screen, real-time display of status. Touchscreen operation, easy operation.

- XT111CH Industrial peristaltic pump is applied in biopharmaceutical and industrial fields.

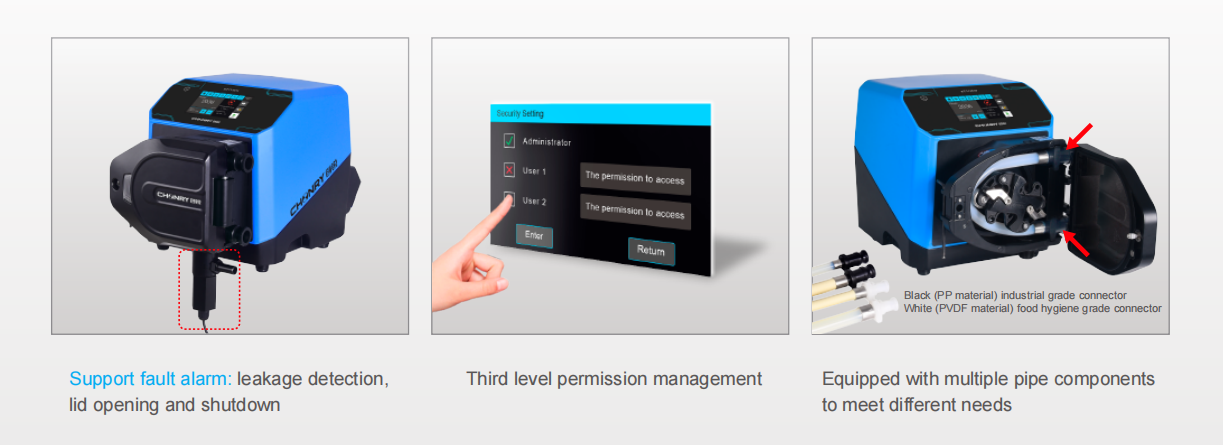

-Support multiple alarming： liquid leakage alarming, open-head alarming, and driver fault warming.

-Three-level user authority management.

-Suitable different size of tube: 26#, 73#, 82#, 184#, 186#, 188#.

Technical Parameter
Driver Model	XT111CH High-Protection IP66 Industrial Peristaltic Pump 18L/min
Max Speed	265rpm (reversible)
Max Flow	18L/min
Speed Resolution	0.1rpm
Display method	5-inch LCD screen, Chinese or English Language options
Control method	Touch screen control, DP communication control
Work Mode	Liquid transmission mode (The pump runs continuously at the set flow rate, and displays the flow rate and pump speed on the screen)
Back suction angle	0°~3600°(0° means no back suction)
Back suction speed	10-265rpm
Rated Power	400W
Driver size	372×286×308mm
Driver weight	17.8 kg(With sealing components)
Lock Screen function	Standard
Leakage detection function	Optional
Supply voltage	100-120V/200-240V 50/60Hz 1pH(Depends on regional power cord set and power supply)
External Control interface	Profibus DP
Storage Temperature	-25°C to 65°C
Ambient temperature	5°C to 40°C
Protection Level	IP66

Pump Head Flow Rate Parameter Table

Pump Head	Tube Size	Tube Material	Tube Specifications	Max Speed	Max Flow	Max Pressure
GY3512R(2 rollers)	26#	Silicone	6.4x3.2 mm	265rpm	3.2L/min	0.2MPa
	26#	Marprene	6.4x3.2 mm	265rpm	3.4L/min	0.2MPa
	73#	Silicone	9.6x3.2 mm	265rpm	7.2L/min	0.2MPa
	73#	Marprene	9.6x3.2 mm	265rpm	6.6L/min	0.2MPa
	82#	Silicone	12.7x3.2 mm	265rpm	11L/min	0.2MPa
	82#	Marprene	12.7x3.2 mm	265rpm	11L/min	0.2MPa
	184#	Silicone	15.9x3.2 mm	265rpm	15L/min	0.2MPa
	184#	Marprene	15.9x3.2 mm	265rpm	12L/min	0.2MPa

Pump Head	Tube Size	Tube Material	Tube Specifications	Max Speed	Max Flow	Max Pressure
GY4012RE(2 rollers)	186#	Silicone	12x4 mm	265rpm	10L/min	0.2MPa
	186#	Marprene	12x4 mm	265rpm	16L/min	0.4MPa
	188#	Silicone	17x4 mm	265rpm	16L/min	0.2MPa
	188#	Marprene	17x4 mm	265rpm	18L/min	0.4MPa

Pump Head	Tube Size	Tube Material	Tube Specifications	Max Speed	Max Flow	Max Pressure
GY4014RE(4 rollers)	186#	Silicone	12x4 mm	265rpm	8.7L/min	0.2MPa
	186#	Marprene	12x4 mm	265rpm	8.3L/min	0.4MPa
	188#	Silicone	17x4 mm	265rpm	11L/min	0.2MPa
	188#	Marprene	17x4 mm	265rpm	11L/min	0.4MPa

Test conditions:

1. Flow data testing environment for indoor temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, the total length of the tube is

not more than 1.5 meters (inlet end + outlet end + test end).

Test conditions:

The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water.

The data is for reference only, please refer to the actual situation.
