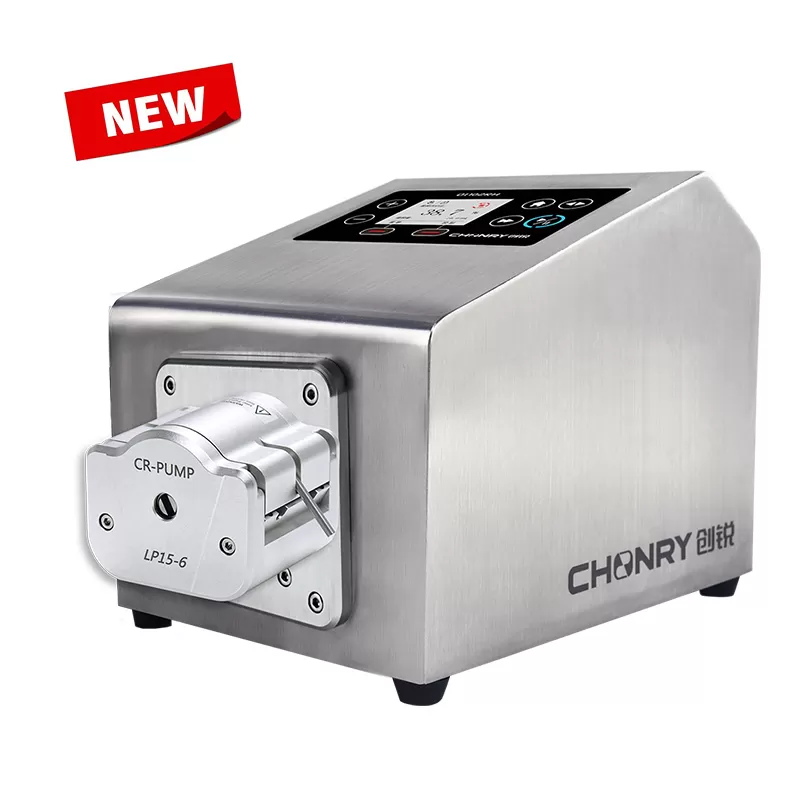

OI102RH Laboratory peristaltic pump with high protection grade IP65. Good electromagnetic compatibility. The shell of OI302RH lab peristaltic pump is made of 304 stainless steel which is durable and corrosion-resistant. Featuring high production grade. It is suitable for humid and dusty environments. Multi pump heads options, and support multi channels to cover any applications. It can used for liquid transferring and filling. Continuous flow run.

OI102RH Laboratory Peristaltic Pump Advantages

- The shell is made of 304 stainless steel, which is solid, durable and corrosion-resistant.

- It has good electromagnetic compatibility and will not be disturbed by the electromagnetic environment.

- The protection level reaches IP65, which is suitable for humid and dusty working environments.

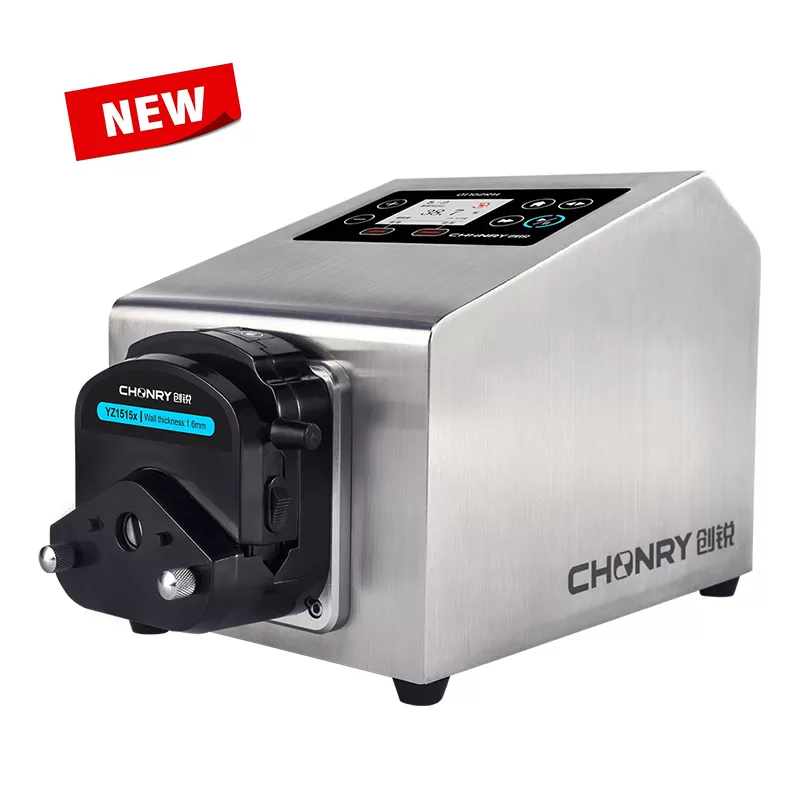

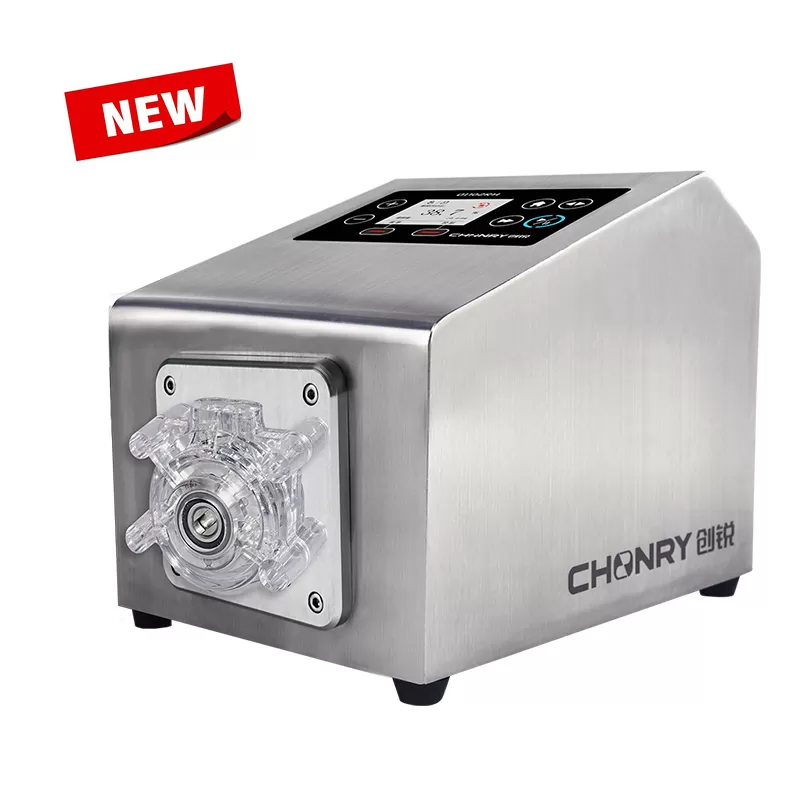

- It can be installed with YZ, DG, and series pump heads, and the pump heads can be cascaded.

- The color LCD screen displays the operating status in real-time. Easy operation and easy parameter setting and calibration.

- Start and stop control, direction control, RS485 communication, speed control (0-5V, 0-10V, 4-20mA, 0-10KHz)

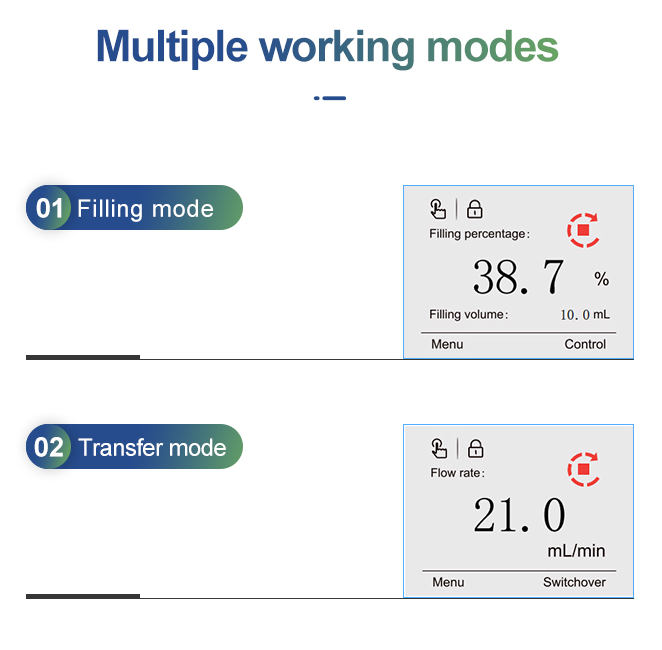

- Two working modes: continuous liquid transmission and liquid filling.

Liquid transmission mode: Pump runs continuously at the set flow rate, and displays flow rate and pump speed on the screen.

OI102RH Chemical Peristaltic Pump IP65 Waterproof Dusty Proof High Protection

Applications:

OI102RH Peristaltic pump with high production grade. It can work stably in humid, dusty and severely electromagnetically interfered industrial environments.

It is widely used in laboratories, pharmaceuticals, cell cultures, mining, environmental monitoring, water treatment, chemical industry.

OI102RH Chemical Peristaltic Pump IP65 Waterproof Dusty Proof High Protection

Drive Model	OI102RH Chemical Peristaltic Pump IP65 Waterproof Dusty Proof High Protection
Max speed	100rpm(Reversible)
Max Flow	760ml/min
Speed resolution	0.1rpm
Display Method	Color LCD display (Chinese and English optional)
Speed Mode	Membrane button adjustment
Back suction angle	0°~720°（0° means no back suction）
Back suction speed	0-100rpm
Power	＜50W

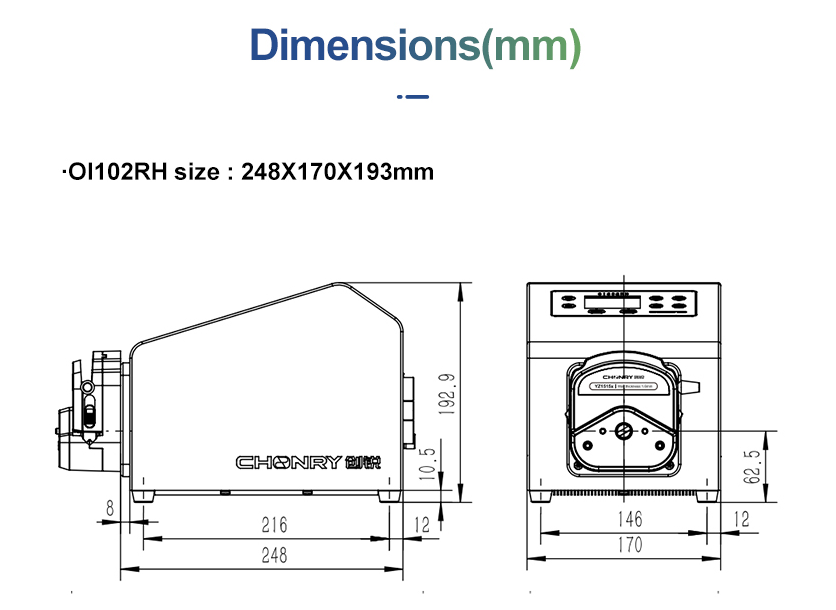

Drive size	248X170X193mm
Drive weight	4.1kg
Power supply	AC100-240V，50Hz/60Hz
External control interface	Aviation socket
External control method	Start-stop control, direction control, RS485 communication, speed control (0-5V, 0-10V, 4-20mA, 0-10KHz)
Ambient Temperature	0~40℃
Protection Level	IP65

OI102RH Peristaltic Pumps Pump Head Flow Rate Parameter Table

Model	Pump Head	Tube	ID(mm)	Wall thickness (mm)	Max Speed (rpm)	Max Flow(mL/min)	Suitable Tube Material
OI102RH	YZ1515X YZ15m	13#	0.8	1.6	100	7	Silicone tube Pharmed tube Chemical tube
		14#	1.6	1.6	100	27
		19#	2.4	1.6	100	51
		16#	3.1	1.6	100	82
		25#	4.8	1.6	100	170
		17#	6.4	1.6	100	290
		18#	7.9	1.6	100	380
OI102RH	YZ2525X	15#	4.8	2.4	100	170	Silicone tube Pharmed tube Chemical tube
OI102RH	YZ2525X	24#	6.4	2.4	100	290	Silicone tube Pharmed tube Chemical tube
OI102RH	YZ25m	15#	4.8	2.4	100	170	Silicone tube Pharmed tube Chemical tube(35#,36# not recommended)
		24#	6.4	2.4	100	290
		35#	7.9	2.4	100	380
		36#	9.6	2.4	100	500
OI102RH	LP15-6	13#	0.8	1.6	100	14	Silicone tube Pharmed tube Chemical tube(17#,18# not recommended)
		14#	1.6	1.6	100	54
		19#	2.4	1.6	100	102
		16#	3.1	1.6	100	164
		25#	4.8	1.6	100	340
		17#	6.4	1.6	100	580
		18#	7.9	1.6	100	760
OI102RH	ZN15	14#	1.6	1.6	100	27	Silicone tube Pharmed tube Chemical tube
		16#	3.1	1.6	100	82
		25#	4.8	1.6	100	170
OI102RH	ZN25	24#	6.4	2.4	100	290
OI102RH	DG(6)-4	1*1	1	1	100	6	Silicone tube Pharmed tube
		2*1	2	1	100	19
		3*1	3	1	100	36
		0.5*0.8	0.5	0.8	100	2
		2.4*0.8	2.4	0.8	100	24
OI102RH	DG(10)-4	1*1	1	1	100	4	Silicone tube Pharmed tube
		2*1	2	1	100	13
		3*1	3	1	100	27
		0.5*0.8	0.5	0.8	100	1.5
		2.4*0.8	2.4	0.8	100	17

Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.2.The test is measured using a straight-through tube, suction range of 0.5 meters, the head is not more than 0.5 meters, the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water. The data is for reference only, please refer to the actual situation.

Brochure - OI102RH Peristaltic Pump

OI102RH Peristaltic Pump Pump Head Flow Rate Table
