OI602RH Industrial Peristaltic Pump 4.5L/min Higj Flow IP65

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

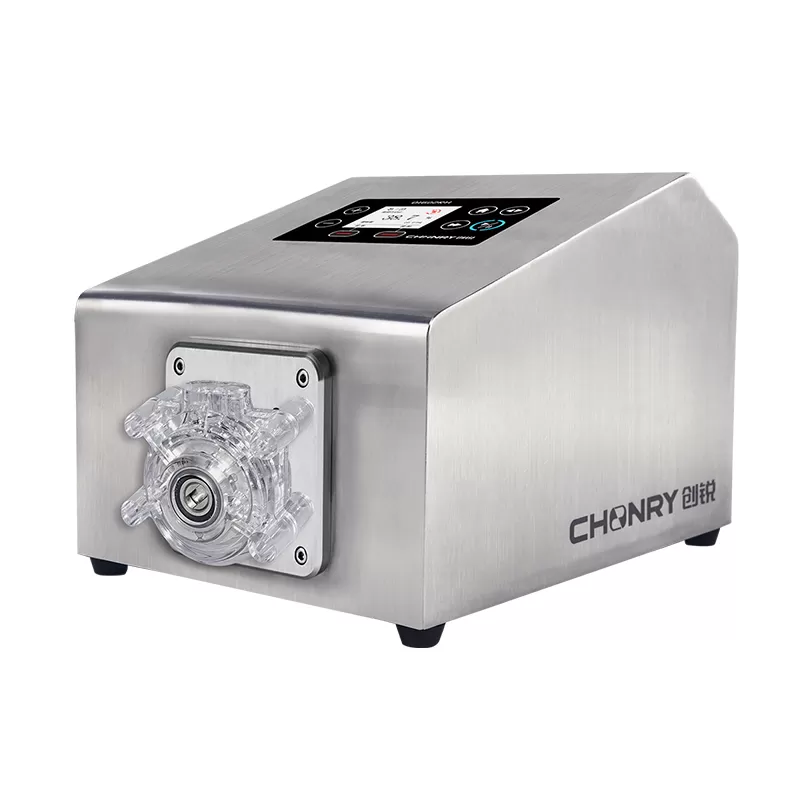

OI602RH Laboratory peristaltic pump with high protection grade IP65. Good electromagnetic compatibility. The shell of OI602RH lab peristaltic pump is made of 304 stainless steel which is durable and corrosion-resistant. Featuring high production grade. It is suitable for humid and dusty environments. Multi pump heads options, and support multi channels to cover any applications. It can used for liquid transferring and filling. Continuous flow run.

OI602RH Laboratory Peristaltic Pump Advantages

- The shell is made of 304 stainless steel, which is solid, durable and corrosion-resistant.

- It has good electromagnetic compatibility and will not be disturbed by the electromagnetic environment.

- The protection level reaches IP65, which is suitable for humid and dusty working environments.

- It can be installed with YZ, DG, and series pump heads, and the pump heads can be cascaded.

- The color LCD screen displays the operating status in real-time. Easy operation and easy parameter setting and calibration.

- Start and stop control, direction control, RS485 communication, speed control (0-5V, 0-10V, 4-20mA, 0-10KHz)

Applications:

OI602RH Peristaltic pump with high production grade. It can work stably in humid, dusty and severely electromagnetically interfered industrial environments.

It is widely used in laboratories, pharmaceuticals, cell cultures, mining, environmental monitoring, water treatment, chemical industry.

Drive Model	OI602RH Lab Peristaltic Pump IP65 Precision Liquid Control
Max speed	600rpm(Reversible)
Max Flow	4560ml/min
Speed resolution	0.1rpm
Display Method	Color LCD display (Chinese and English optional)
Speed Mode	Membrane button adjustment
Back suction angle	0°~720°（0° means no back suction）
Back suction speed	0-600rpm
Power	＜200W
Drive size	278X200X197mm
Drive weight	5.5kg
Power supply	AC100-240V，50Hz/60Hz
External control interface	Aviation socket
External control method	Start-stop control, direction control, RS485 communication, speed control (0-5V, 0-10V, 4-20mA, 0-10KHz)
Ambient Temperature	0~40℃
Protection Level	IP65

OI602RH Peristaltic Pumps Pump Head Flow Rate Parameter Table

Model	Pump Head	Tube	ID(mm)	Wall thickness (mm)	Max Speed (rpm)	Max Flow(mL/min)	Suitable Tube Material
OI602RH	YZ1515X YZ15m	13#	0.8	1.6	600	42	Silicone tube Pharmed tube Chemical tube
		14#	1.6	1.6	600	162
		19#	2.4	1.6	600	306
		16#	3.1	1.6	600	492
		25#	4.8	1.6	600	1020
		17#	6.4	1.6	600	1740
		18#	7.9	1.6	600	2280

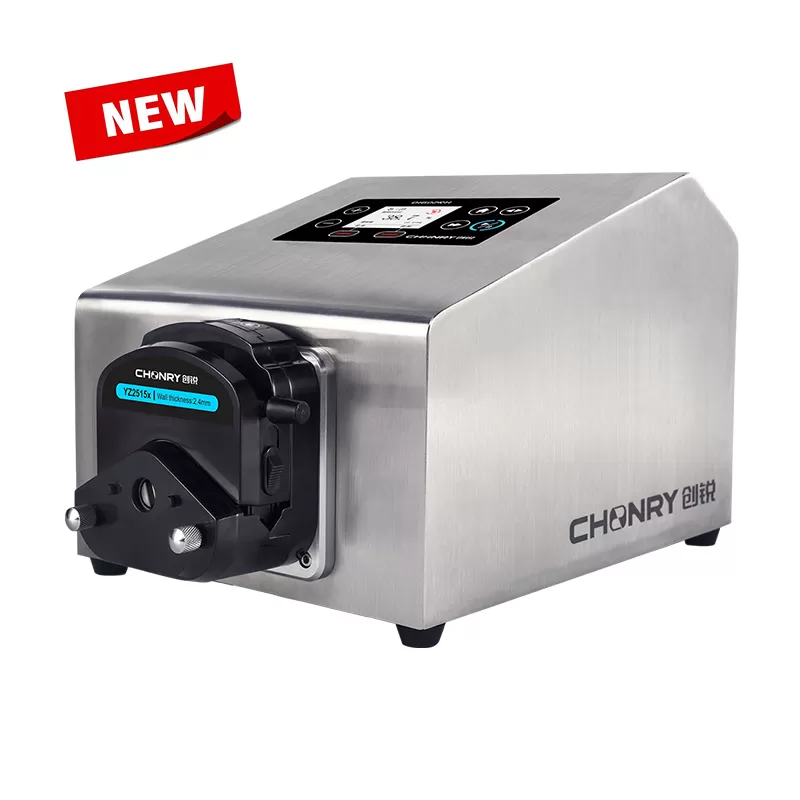

OI602RH	YZ2525X	15#	4.8	2.4	600	1020	Silicone tube Pharmed tube Chemical tube
OI602RH	YZ2525X	24#	6.4	2.4	600	1740	Silicone tube Pharmed tube Chemical tube
OI602RH	YZ25m	15#	4.8	2.4	600	1020	Silicone tube Pharmed tube Chemical tube(35#,36# not recommended)
		24#	6.4	2.4	600	1740
		35#	7.9	2.4	600	2280
		36#	9.6	2.4	600	3000

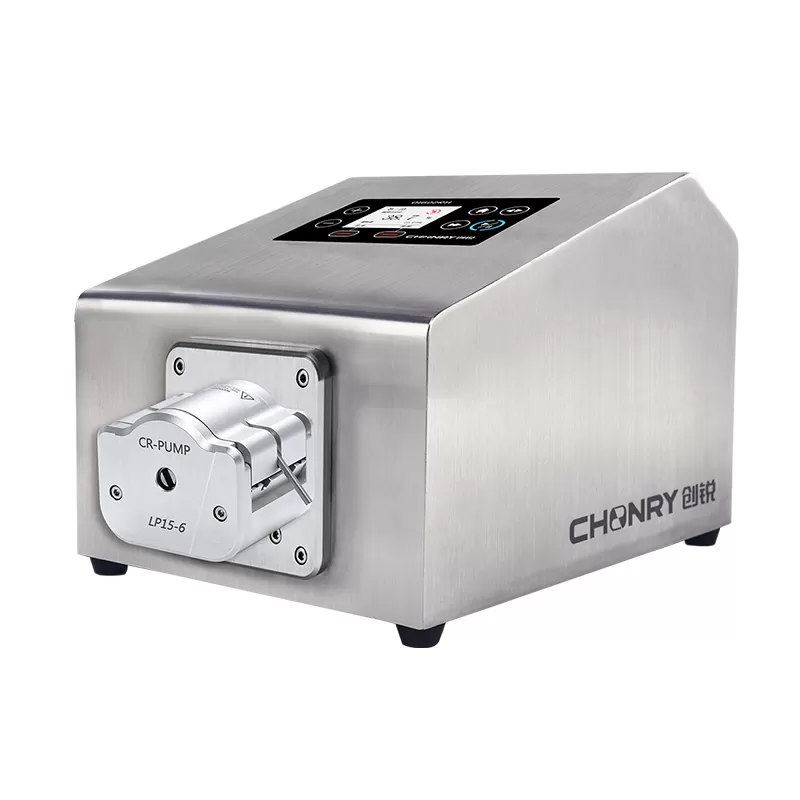

OI602RH	LP15-6	13#	0.8	1.6	600	84	Silicone tube Pharmed tube Chemical tube(17#,18# not recommended)
		14#	1.6	1.6	600	324
		19#	2.4	1.6	600	612
		16#	3.1	1.6	600	984
		25#	4.8	1.6	600	2040
		17#	6.4	1.6	600	3480
		18#	7.9	1.6	600	4560
OI602RH	ZN15	14#	1.6	1.6	600	162	Silicone tube Pharmed tube Chemical tube
		16#	3.1	1.6	600	492
		25#	4.8	1.6	600	1020
OI602RH	ZN25	24#	6.4	2.4	600	1740
OI602RH	DG(6)-4	1*1	1	1	100	6	Silicone tube Pharmed tube
		2*1	2	1	100	19
		3*1	3	1	100	36
		0.5*0.8	0.5	0.8	100	2
		2.4*0.8	2.4	0.8	100	24
OI602RH	DG(10)-4	1*1	1	1	100	4	Silicone tube Pharmed tube
		2*1	2	1	100	13
		3*1	3	1	100	27
		0.5*0.8	0.5	0.8	100	1.5
		2.4*0.8	2.4	0.8	100	17

Test conditions:

Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.
The test is measured using a straight-through tube, suction range of 0.5 meters, the head is not more than 0.5 meters, the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water. The data is for reference only, please refer to the actual situation.
