Customer Requirments:
Peristaltic pumps are widely used in the experiments of jade mouse perfusion due to their stable operation performance and simple operation.
- Peristaltic Pump for Mouse Perfusion. Cardiac perfusion was performed with Chonry peristaltic pump, inserted into the left ventricle, and the right atrial appendage was cut open, then the flow rate was 15 ml/min with saline, and the liver was whitened and replaced with 4% paraformaldehyde. The flow rate was 1.81 ml/min.
- During the whole experiment, it is directly in contact with the small mouse.
- It is necessary to use a soft and thin hose. If the precision is high, the ZS100 laboratory syringe pump can be used. If the accuracy requirements are not particularly high, the BT100LC series peristaltic pumps are suitable.
Solutions:

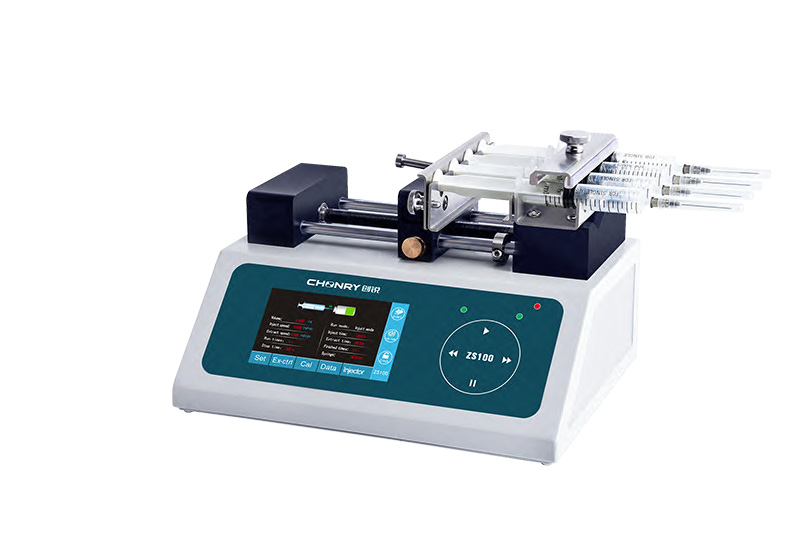

- Recommend the laboratory syringe pump ZS100. 2/4/6/8/10 channels for optional. High precision. Applicable syringe 10ul-60ml
- The hose adopts an imported pharmaceutical-grade hose, which has better anti-adsorption capacity and ultra-low spillage, which is more suitable for similar experimental applications.
Advantages:
- High precision pump

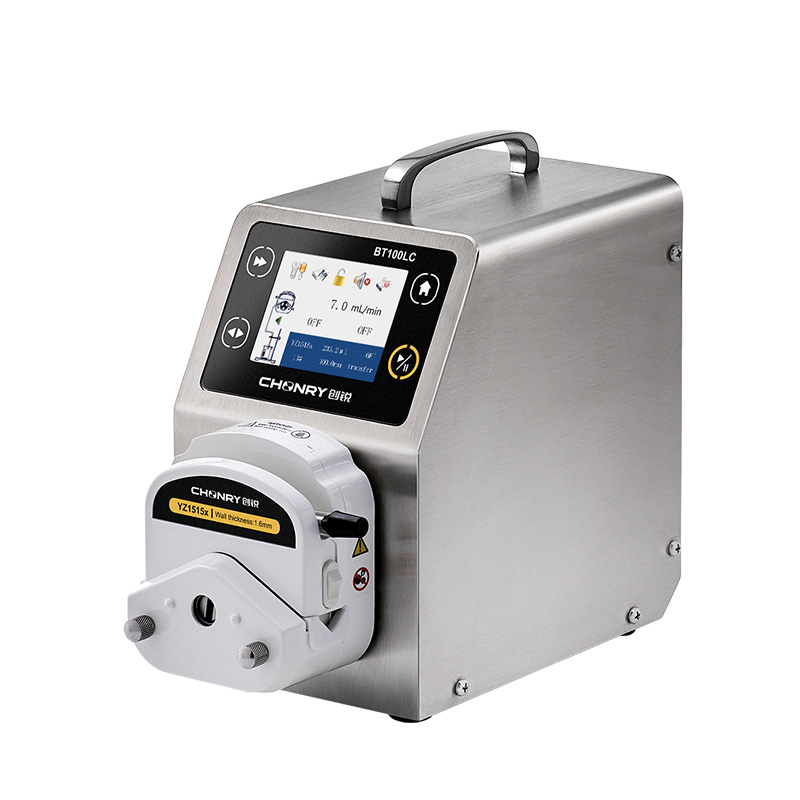

peristaltic pump BT100LC peristaltic dosing pump, quantitative accuracy ≤ 2%. While Laboratory syringe pump stroke control error ≤0.5%.
The calibration function can ensure the filling accuracy for each dose . The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
- No cross-contamination
It can avoid the cross-contamination of the fluid during the transmission process. When the peristaltic pump and the laboratory syringe pump are used to transport the fluid, the fluid is only in contact with the hose or the syringe. The hose and the syringe are easy to be cleaned and disinfected to meet the hygienic standard requirements.
- External control
External control full control products, both products are equipped with RS485 or analog (0-5V, 0-10V, 4-20mA) control, such as the user needs to use external control to control our products, only need to be in the pump Set it yourself, no need to return the product to change the program.
-Easy to maintenance
Replaceable tubes allow you to switch from one liquid to another in the shortest amount of time. No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing.
- No Pollution
Peristaltic pump are non-pollution: the fluid only contacts the pump tube and does not touch the pump body.
- Peristaltic pumps are easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
- Good sealing
It has good self-priming ability and can be idling to prevent backflow.
- Peristaltic pump with Low shear: ideal for conveying shear-sensitive, aggressive fluids.
