Description:

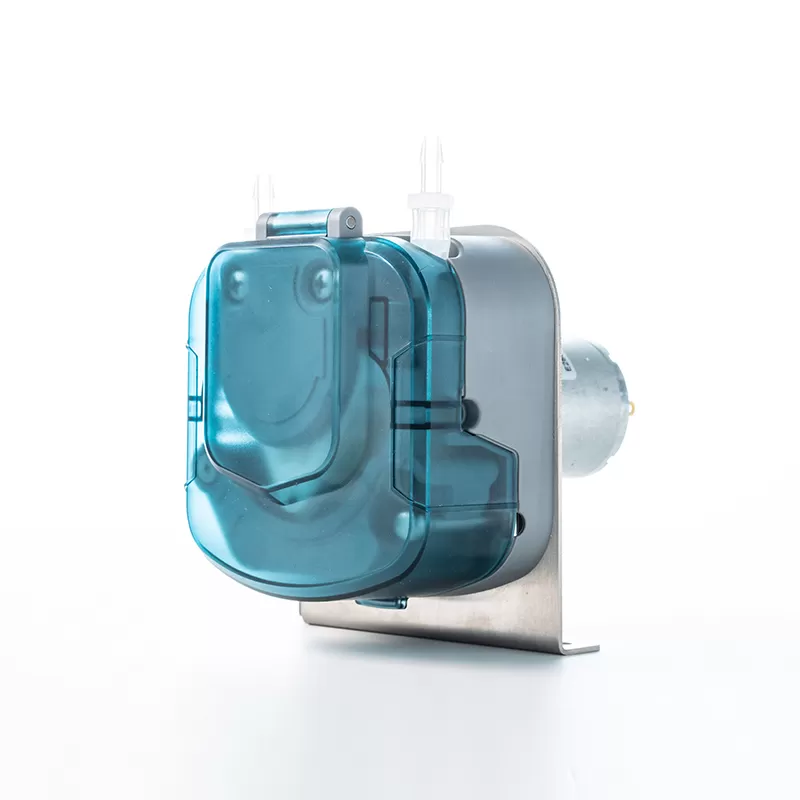

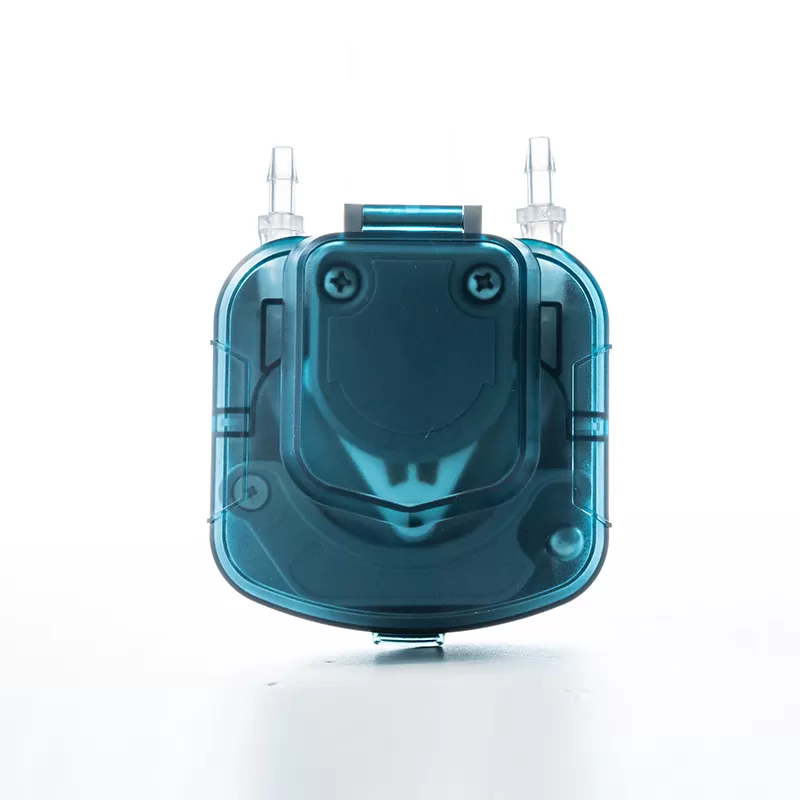

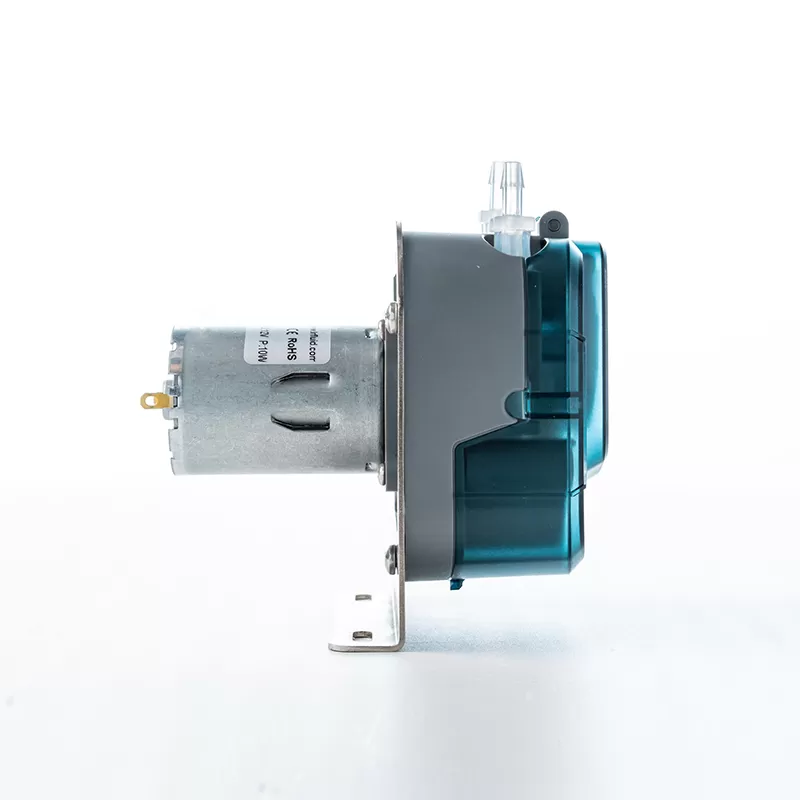

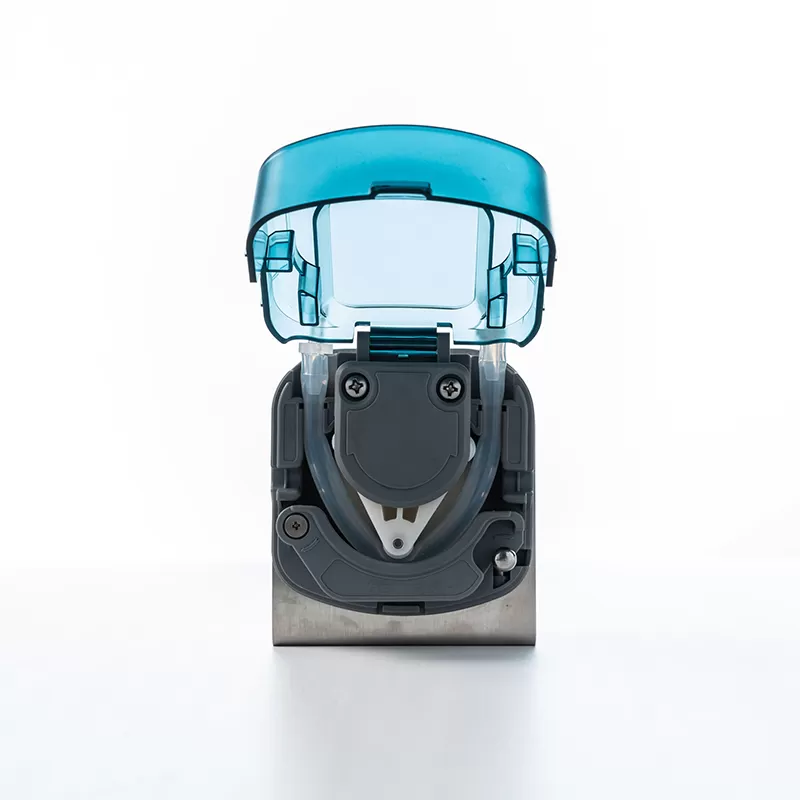

BP600 small peristaltic pump is a type of OEM product. It adopts the stepper motor, a more stable fluid. The flow rate of the BP600 peristaltic metering pump is up to 700ml/min. It is widely used for laboratories, medical equipment, and water treatment industries. Compact size and high quality reach the precision fluid transfer. As the peristaltic pump manufacturer, Chonry provides you with the best price for a peristaltic pump.

Features:

- The spring compensation structure can prolong the service life of the pump pipe, prevent the liquid backflow and the negative pressure is stable

- Gear transmission, long life low noise

- Double bearing transmission, long life, maintenance-free

- Strengthening engineering plastics, high strength, stable performance

- Transparent shell, visible work, beautiful and generous

-The direction of the pump pipe can be switched at will

- Imported pump pipe, good chemical resistance

Parameter

Product Model	BP600
Motor	Stepper motor
Voltage	12V/24V
Flow rate	0-700ml/min
Pressure	Low Pressure
Material	PC+PA66
Noise	<65dB
Pump tube material	Silicone tube
Customized Support	OEM, ODM, Software reengineering

Performance and Flow Parameter Table of Pump Pipe

Code/Material of Pump Pipe	Performance Characteristics	Pump Tube Life
Norprene Tube	Meeting the FDA certification and is very suitable for food and dairy products. Heat and ozone resistance, acid and alkali resistance, anti-aging, oxidation resistance, and long life.	>1000h
Silicone Tube	Low cost, weak acid and alkali resistance, chemical corrosion resistance worse than the above NP pump pipe, service life is lower than NPpump pipe.	>200h

Flow Parameters

Pump pipe code			S32	S40	S48	N32	N40	N48
ID x OD			3.2 x 6.4	4 x 7.2	4.8 x 8	3.2 x 6.4	4 x 7.2	4.8 x 8
Tube material			Silicone Tube			Norprene Tube
Flow-rateml/min	24V DC	0.3A	320	500	660	320	500	660
Flow-rateml/min	12V DC	0.6A	320	500	660	320	500	660
Ideal working conditions: ambient temperature 0-40℃, relative humidity <80%

Note:

1. Test method: normal temperature(20℃), Pure water test under normal pressure;

2. The above data is for reference only, and the flow rate will have deviation according to different liquid, pressure and pipe length

3. Pump pipe material, flow rate and control mode can be customized according to requirements.
