OEM206/WP300 12V 24V DC Motor Peristaltic Pump Detergent TransferLaundry Machine Dosing 870ml/min

OEM206/WP300 12V 24V DC Motor Peristaltic Pump Detergent Transfer Laundry Machine Dosing Pump

Model	OEM206
Max Flow	870mL/min
Max Speed	300rpm

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

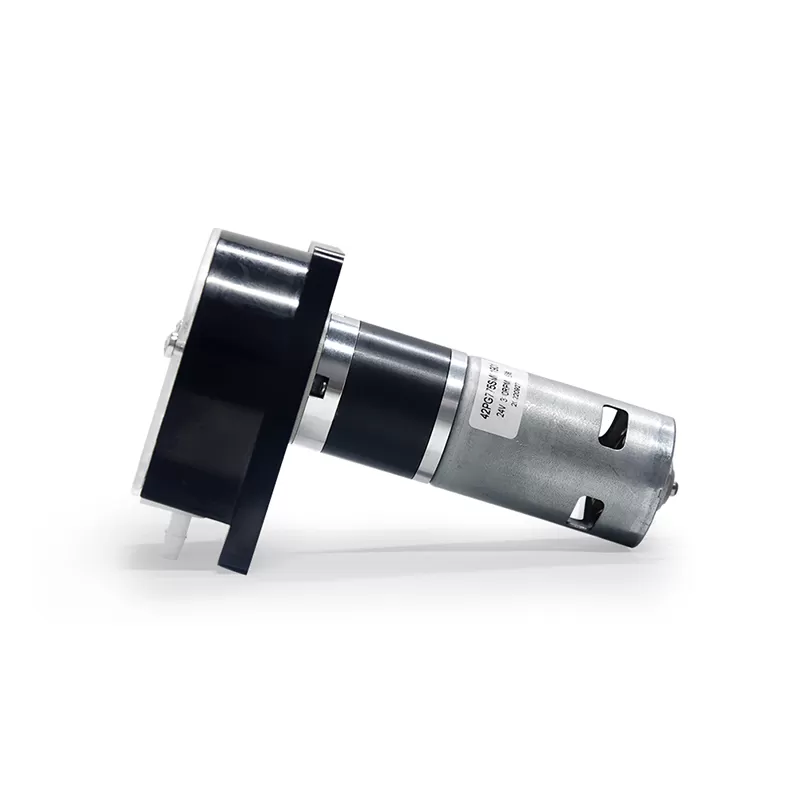

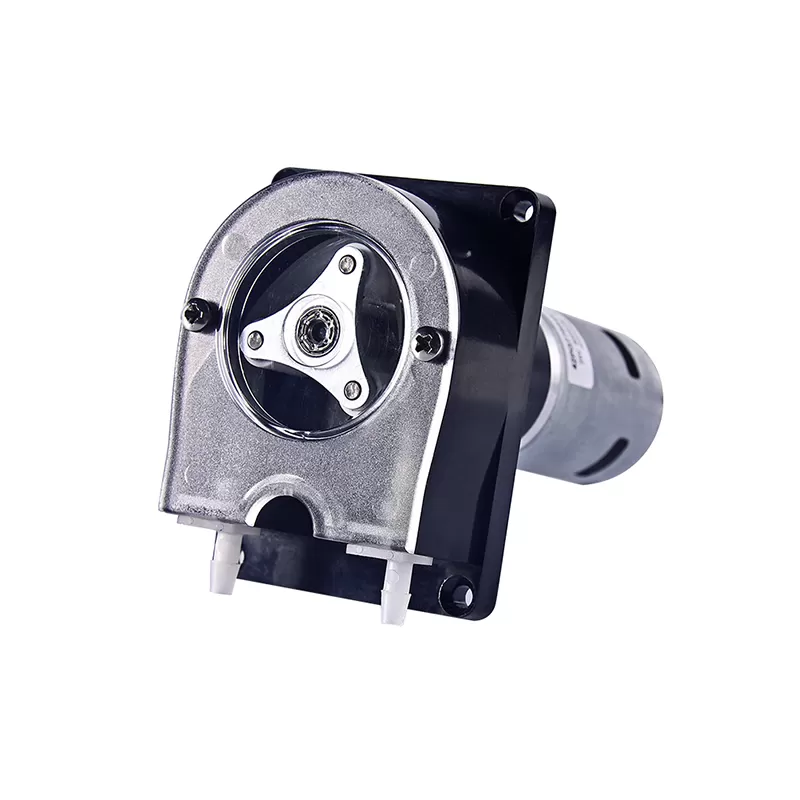

OEM206 peristaltic pump is made of a WP300 pump head and 42 DC deceleration motor. The max flow is 870mL/min. It can be used for environmental protection equipment, fermentation tanks, dishwasher machines, Detergent Transfer for laudary machine and so on. This OEM206 peristaltic pump has a compact size and middle flow rate. Chonry® is a top peristaltic pump manufacturer in China. We offer various flow rates of peristaltic pumps from small flow pumps to high-pressure peristaltic pumps. Also, support the OEM and ODM filling systems.

Features:

Shell corrosion resistance

New special process plastics are used, which have outstanding stability and corrosion resistance. Corrosion resistance shell.

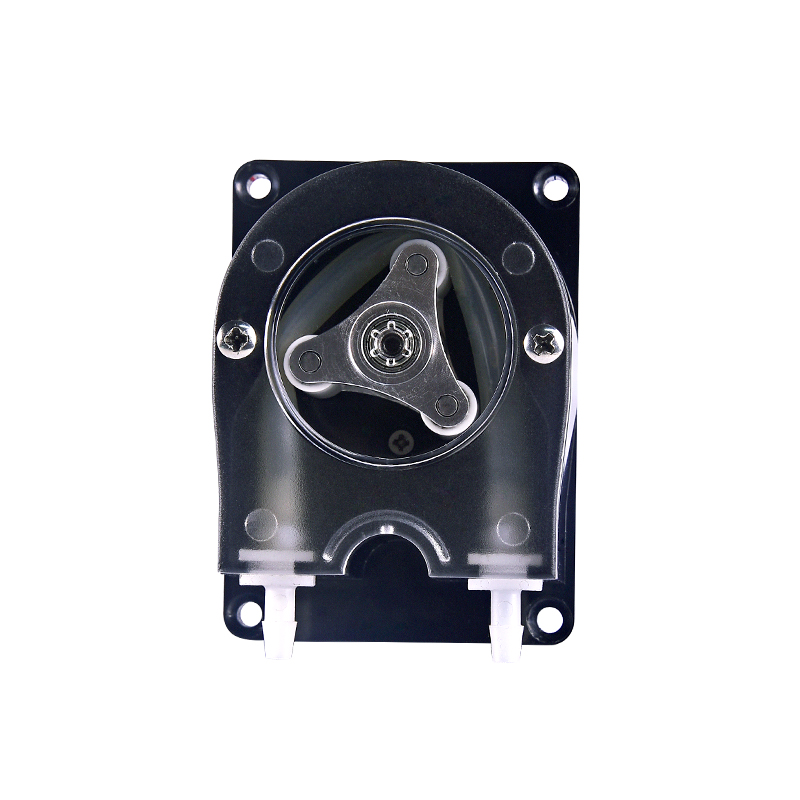

Visualization pump cover

Visualized pump cover design for easy observation of transmission.

Easy tube change

Tube fitting design, easy to change tubes

High performance in fluid transfer

Maximum flow rate up to 870ml/min.

Model	OEM206/WP300 12V 24V DC Motor Peristaltic Pump Detergent Transfer Laudary Machine Dosing Pump
Pump Head	WP300
Motor	42 DC planetary gear motor
Channels	1
Rollers	2
Max Speed(rpm)	300
Max Flow (mL/min)	870mL/min
Tube Specifications	13#,14#,19#16#,25#,17#,18#
Roller Material	PP

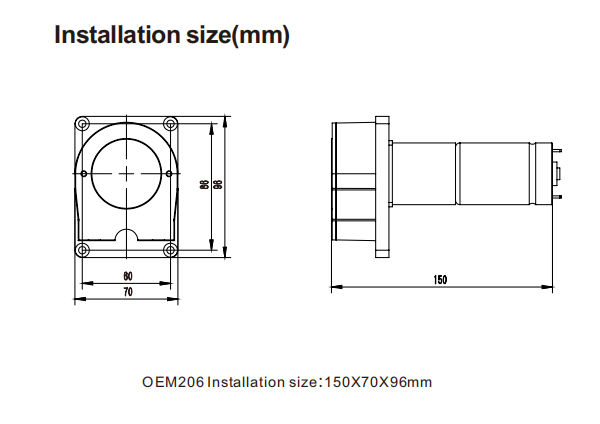

Installation size	150X70X96mm

Pump Head	Hose Specifications(Id*Wall Thickness)mm	Max Flow(mL/min)	Max Speed(rpm)	Remark

WP300	13#/0.8*1.6	18	300	WP300(double roller) equipped with 17# 18# tub only use silicone tube
	14#/1.6*1.6	68
	19#/2.4*1.6	140
	16#/3.2*1.6	230
	25#/4.8*1.6	480
	17#/6.4*1.6	820
	18#/7.9*1.6	1070

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

OEM206/WP300 Small Peristaltic Pump Brochure

None

Baoding Chuangrui Precision Pump Co., Ltd. is located in Hebei of China. Started production of the peristaltic pump in 2010, as the top pump manufacturer in China, we now have 30 series production including peristaltic metering pump, pump head, dispensing filling system, micro gear pumps and industrial peristaltic pumps.
