OEM Peristaltic Pump
Home / Products / OEM Peristaltic Pump / OEM Peristaltic Pump / OEM201/YZ1515x Small Peristaltic Pump DC12V 24V For Coffee Machine Liquid Filling Dosing Pump

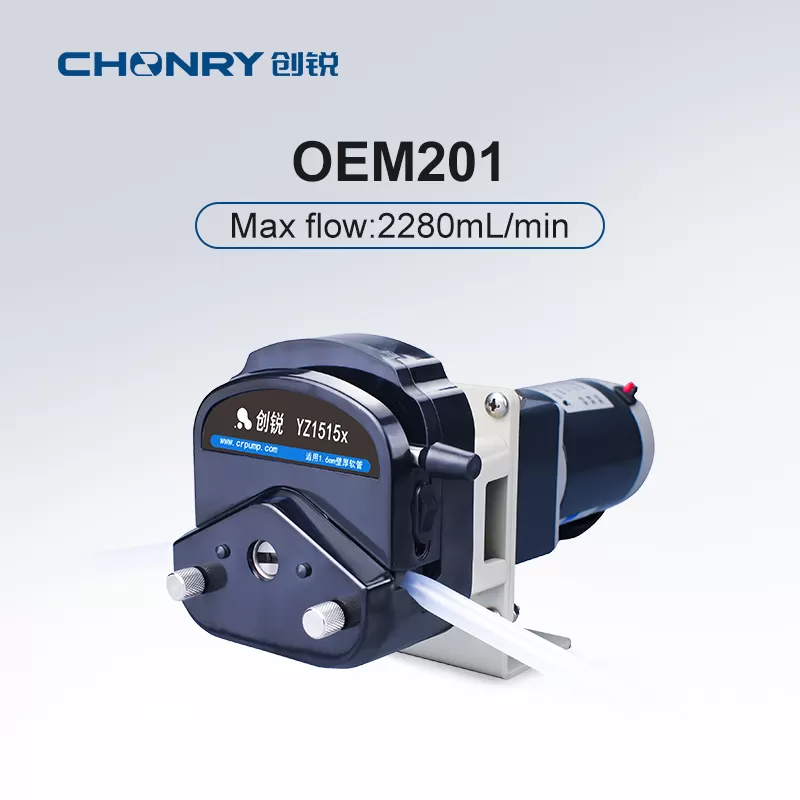

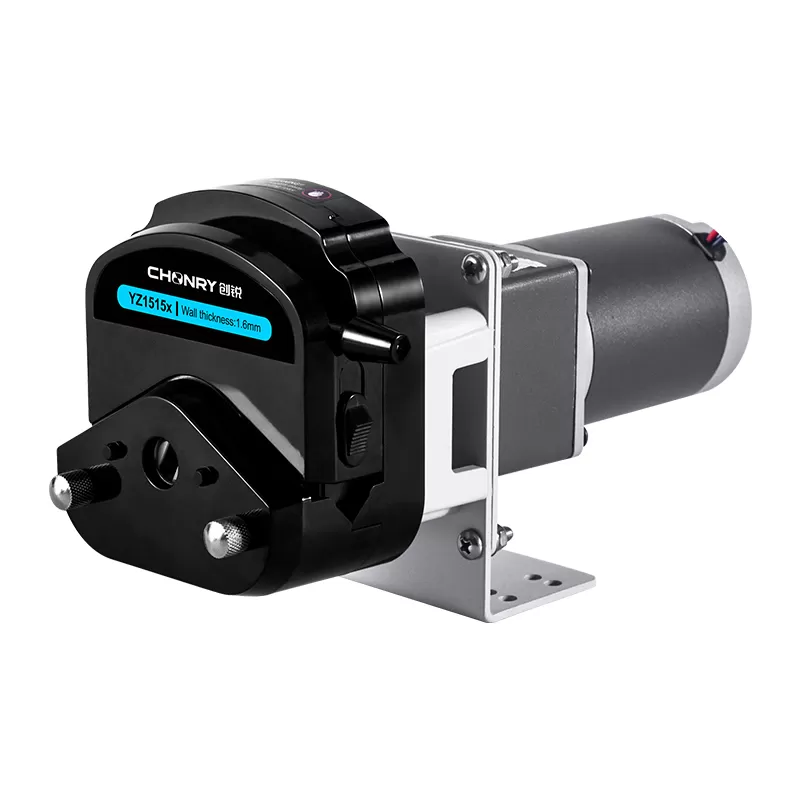

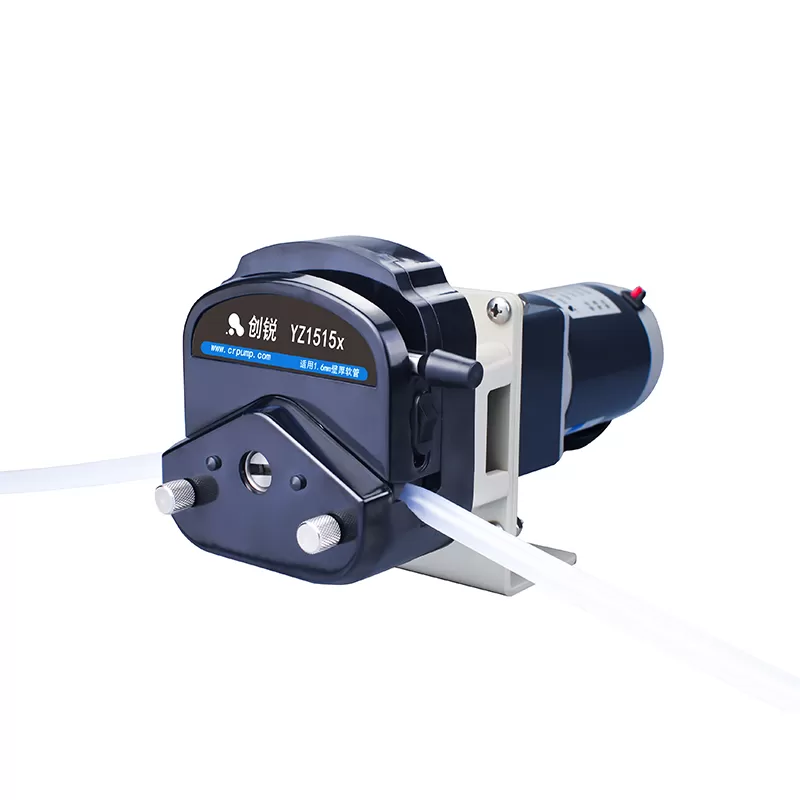

OEM201/YZ1515x Small Peristaltic Pump DC12V-24V Motor

OEM201/YZ1515x Small Peristaltic Pump DC12V 24V For Coffee Machine Liquid Filling Dosing Pump

Max Flow: 2280ml/min

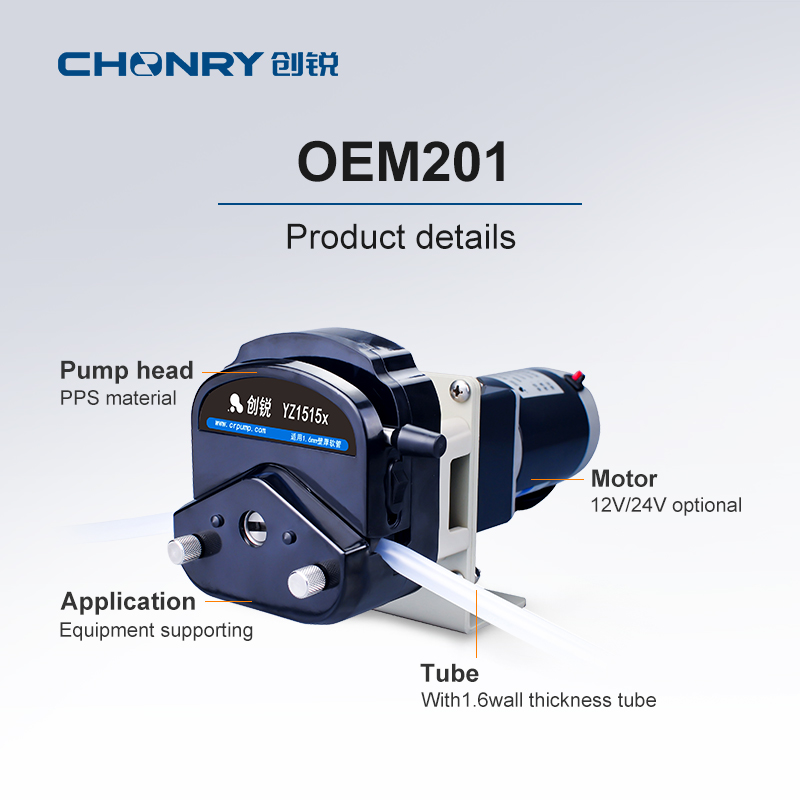

- The OEM201 mini peristaltic pump is loaded with YZ1515x pump heads.

- 12V and 24V motors are optional.

- It is our hottest small peristaltic pump.

- It is used for liquid filling machines supporting pump, milk transfer,  beer transfer, and vending machines. Call us to buy it!

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

Features:

- Suitable for various liquids, as well as handling liquid with small particle

- Supporting various tube materials to transfer different corrosive or non-corrosive liquid

- Easy load pump head

- Quick connect carrier


Application:

- Liquid bottle filling machine supporting pump, milk filling machine, coffee machine,  tomato sauce filling pump, polishing fluid transfer.


Packaging list
1
OEM201/YZ1515x Peristaltic Pump1 setThe max flow rate of 18# 2280ml/min
2Silicone tube 18#2m for each pump
3Connector 18#2 pcs for each pump



OEM201/YZ1515x Small Peristaltic Pump 12V-24V Motor

Drive modeOEM201/YZ1515x Small Peristaltic Pump DC12V 24V For Coffee Machine Liquid Filling Dosing Pump
Tube mode13# 14# 19# 16# 25# 17# 18#
Pump headYZ1515x
Max Flow range(ml min)2280ml/min
Speed range(ml/min)30-600rpm
Number of rollers3 rollers
Matching Motor60 DC Motor
Motor Power15W
Motor VoltageDC24V ,  DC12V
Operating temperature0~40°
Relative humidity＜80%
IPIP31
Series connectionNo
OEM customizedYes
Forward and reverseYes



Pump HeadTube ModelID (mm)Wall Thickness (mm)Max Flow (ml/min)Speed（rpm）
YZ1515x13#0.81.642600
14#1.61.6162600
19#2.41.6306600
16#3.11.6492600
25#4.81.61020600
17#6.41.61740600
18#7.91.62280600



Brouchure OEM201 Peristaltic Pump
Brouchure OEM201 Peristaltic Pump

oem201 Small peristaltic pump liquid dosing pump 2280ml/min

None

Tags:

Small Peristaltic Pump, 12V-24V Peristaltic pump, OEM peristaltic pump
