OEM Peristaltic Pump
Home / Products / OEM Peristaltic Pump / OEM Peristaltic Pump / OEM202 Small Peristaltic Pump 1740ml/min Liquid Dosing

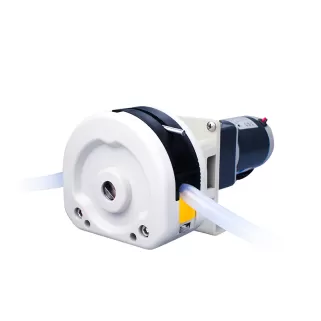

OEM202 Small Peristaltic Pump 1740ml/min Liquid Dosing

OEM202 Small Peristaltic Pump 1740ml/min Liquid Dosing

Max Flow: 1740ml/min

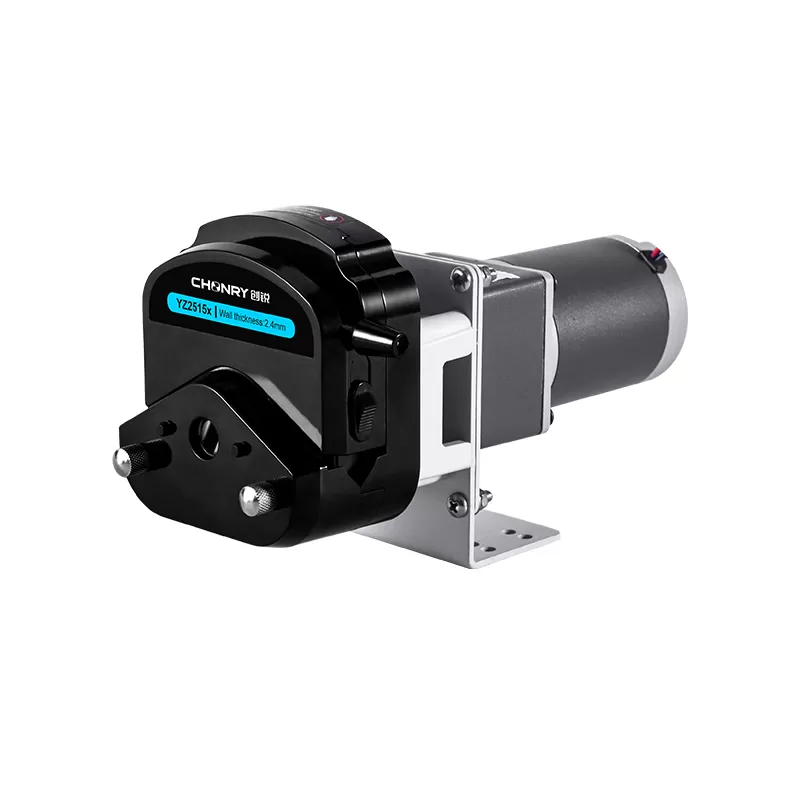

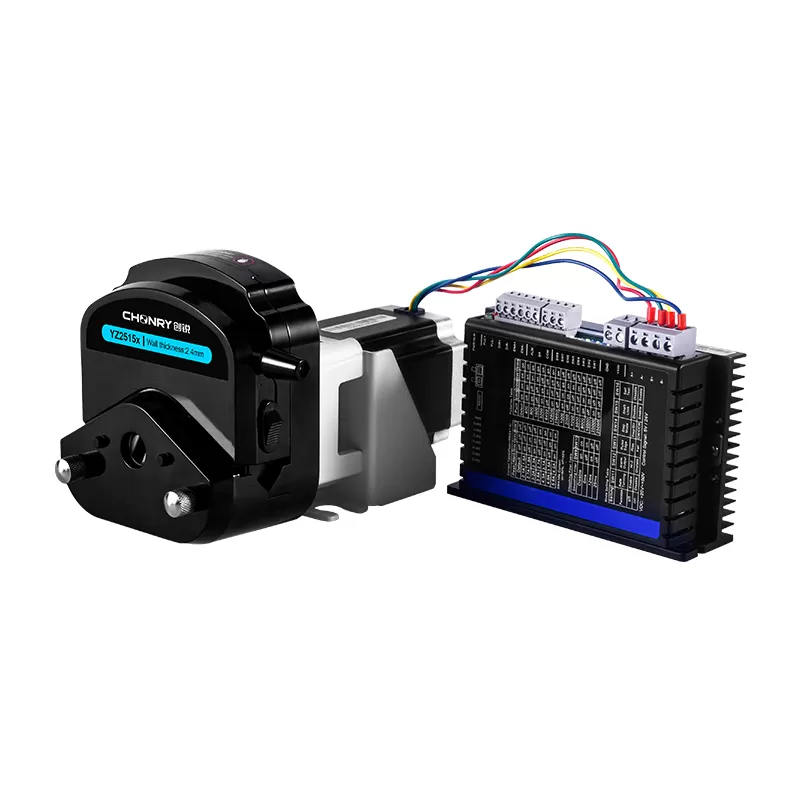

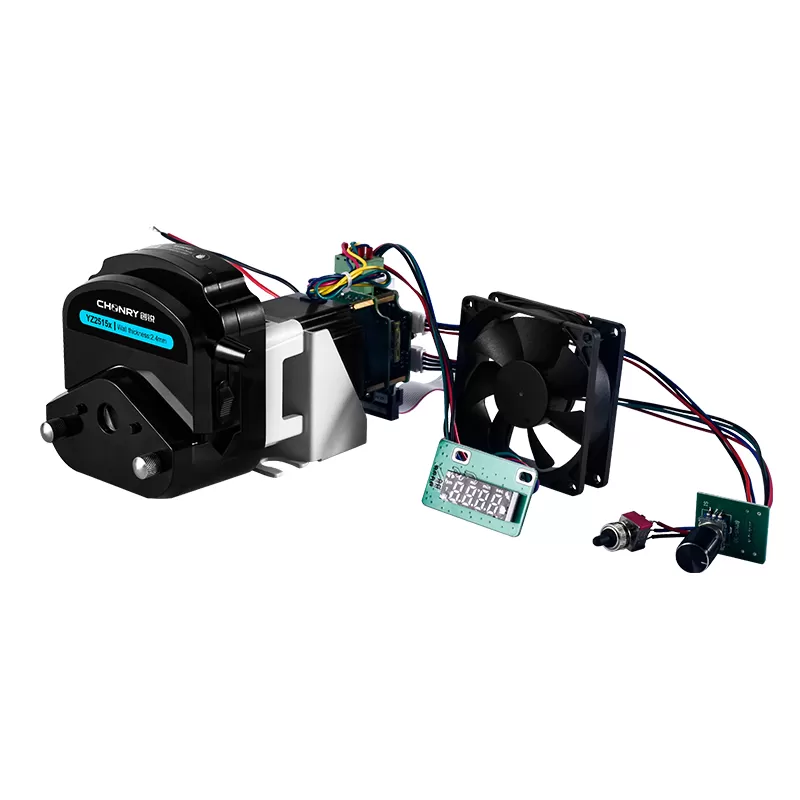

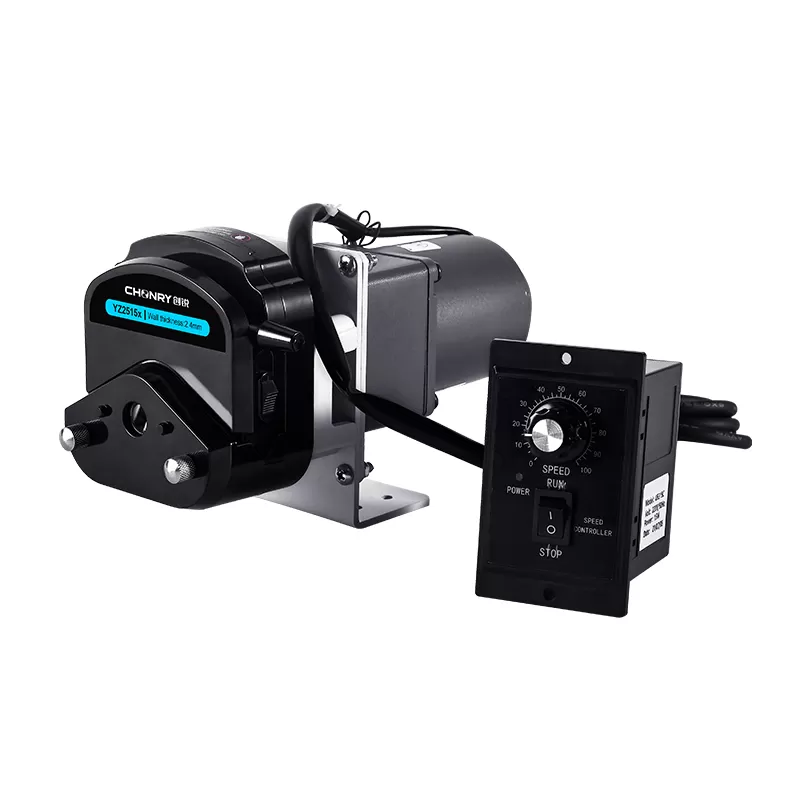

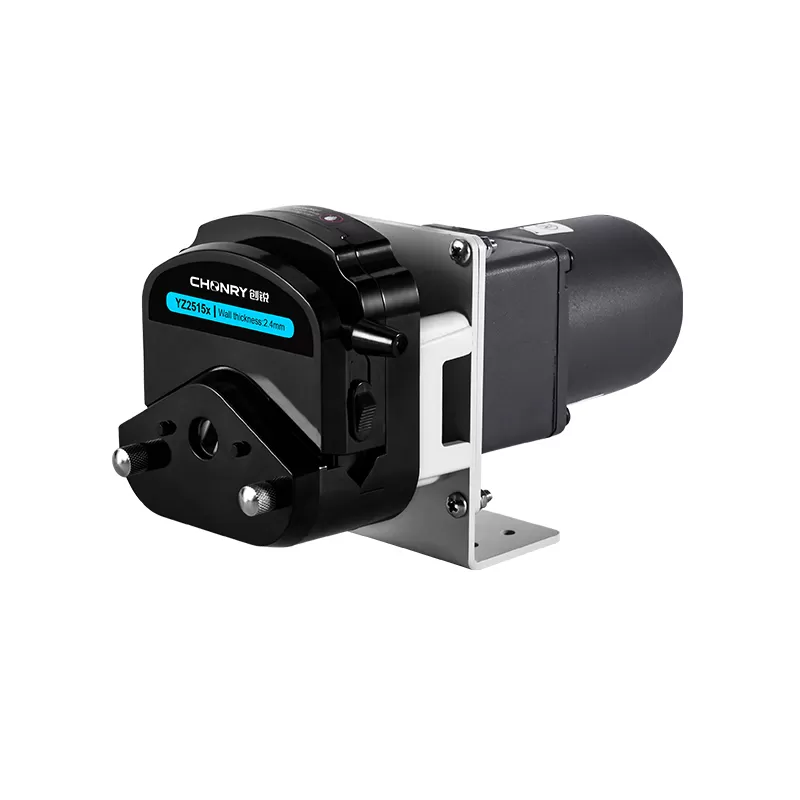

Matching Motor: Stepper motor, AC motor / Synchronous motor, DC motor


Adopting the YZ1515X pump head, the max flow rate is up to 1740ml/min and the speed is 600rpm. Ideal for machine builders seeking dependable dosing functionality as an integral part of their products.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

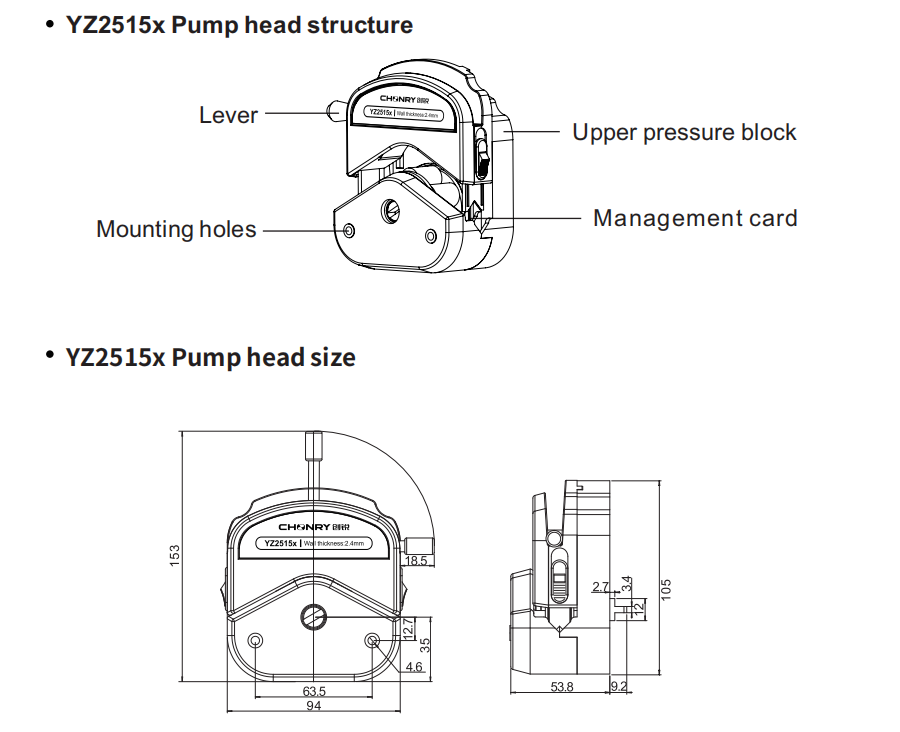

OEM202 small peristaltic pump is equipped with the YZ2515x pump head, which is simple to operate and easy to load and unload the hose. The small peristaltic pumps are compact design, easily integrated into machines, instruments or cabinets. Ideal for the liquid transfer and dispensing. The tubing can be easily installed through the lever. The roller is made of stainless steel, which is wear-resistant, corrosion-resistant and has a long life. It can be equipped with DC motor, AC motor and stepper motor to meet different working needs.


Applications:

OEM202 small peristaltic pump can be integrated into instruments and machines for various industrial applications including the food manufacturing, Biotechnology, liquid filling, vending machine and industrial processes.


Parameter

Pump headYZ2515x
Channels1
Rollers3
Applicable tube15#、24#
Matching motorstepper motorAC motor / Synchronous motorDC motor
Max flow1740mL/min1305mL/min1740mL/min
Max speed600rpm450rpm600rpm


OEM202 Small Peristaltic Pump 1740ml/min Liquid Dosing


Hose Selection and Flow Reference:


Matching motorPump headTubeID*wall thickness(mmMax flow(mL/min)Max speed(rpm)
Stepper motorYZ2515x15#4.8*2.41020600
YZ2515x24#6.4*2.41740600
AC motor / Synchronous motoYZ2515x15#4.8*2.4765450
YZ2515x24#6.4*2.41305450
DC motorYZ2515x15#4.8*2.41020600
YZ2515x24#6.4*2.41740600



None

Brouchure - OEM202 Peristaltic Pump
Brouchure - OEM202 Peristaltic Pump

None

None

Tags:

OEM Peristaltic Pump, Small Peristaltic Pump
