OEM Peristaltic Pump
Home / Products / OEM Peristaltic Pump / OEM Peristaltic Pump / OEM212 Multi -channel Small Peristaltic Pump 12v 24v Peristaltic Dosing Pump
Multi -channel Lab Peristaltic Pump

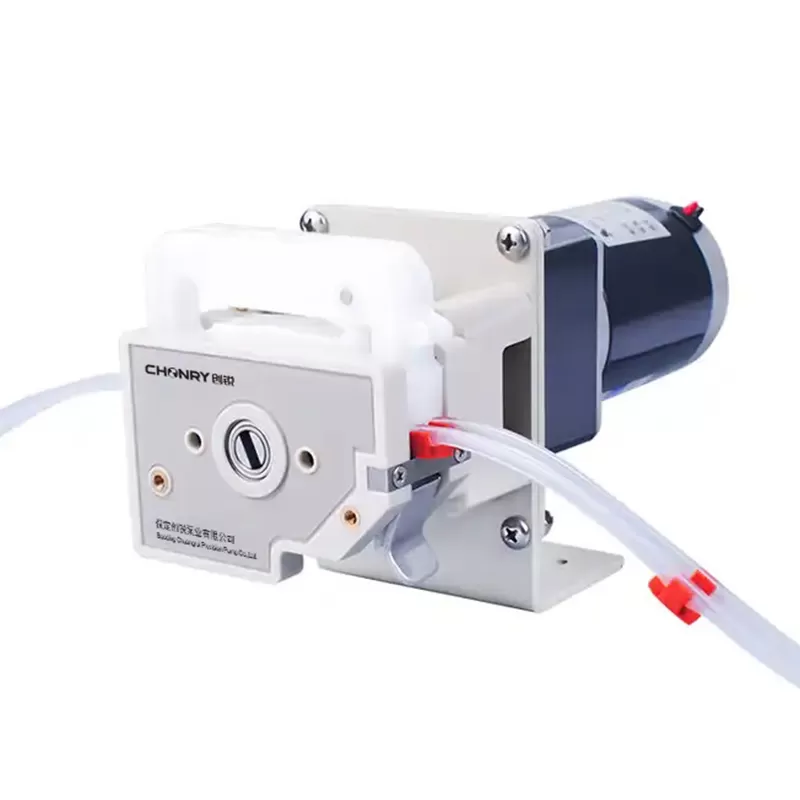

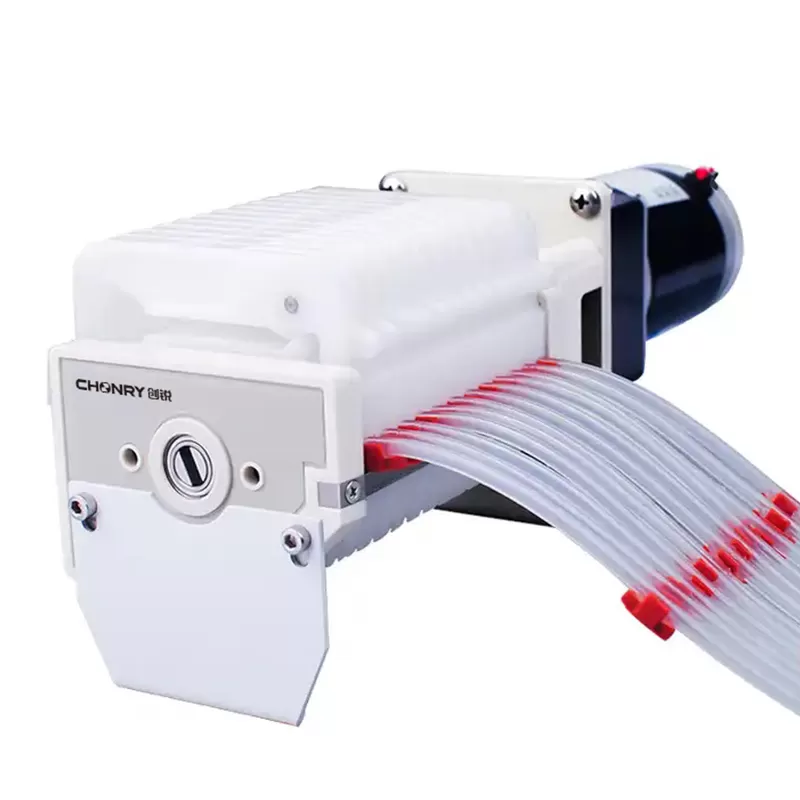

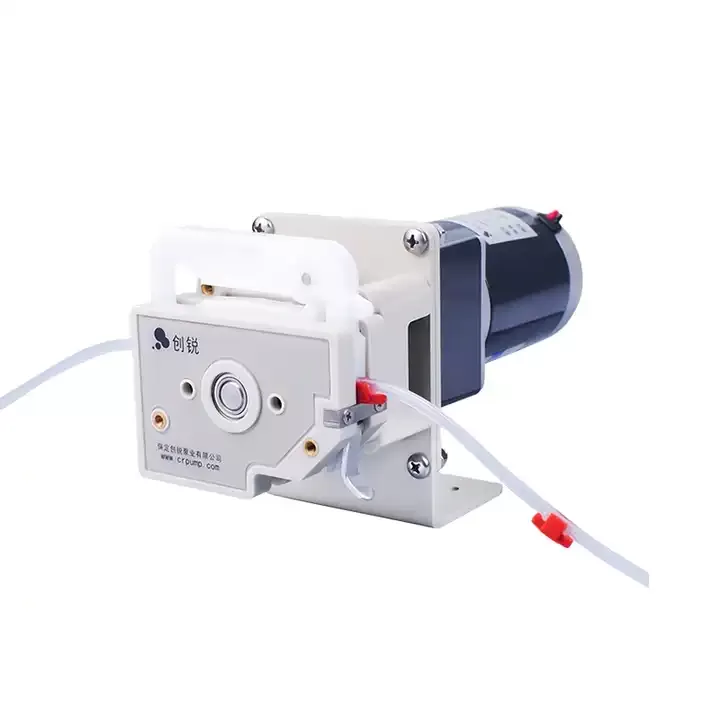

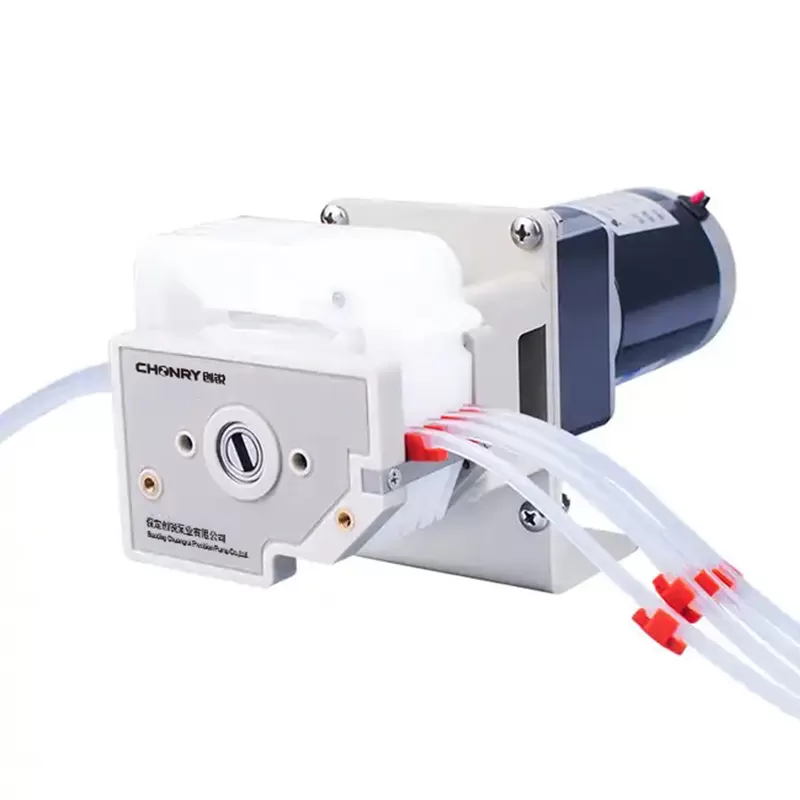

OEM212 Multi -channel Small Peristaltic Pump 12v 24v Peristaltic Dosing Pump

Flow Rate: 36ml/min

Max Channel: 12 channels

OEM212 multi-channel peristaltic pump flow rate 36ml/min/channel. Max channel 12 channel. 12v 24v peristaltic pump. Small size. Used for liquid delivery lab chemical transfer. Inquiry peristaltic pump now!

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

This multi-channel peristaltic pump can generate an adjustable flow range from 0.0015ml/min to 36ml/min. The high-output torque can drive up to 12 channels.


Features:

- Multi-channel peristaltic pump

- Easy to replace tubing

- Stable flow

- Max flow rate: 36ml/min


Applications:

- Liquid handling and delivery

- Cell culture

- Perfusion system

- Bio-lab applications, microfluidics

- Suitable for laboratory and industrial applications


ModelTubeID*wall thickness(mm)Max Speed(rpm)Max Flow(mL/min)
DG(6)0.5*0.80.5*0.81002
1*11*11006
2*12*110019
2.4*0.82.4*0.810024
3*13*110036
DG(10)0.5*0.80.5*0.81001.5
1*11*11004
2*12*110013
2.4*0.82.4*0.810017
3*13*110027



None

None

None

None
