OEM Peristaltic Pump
Home / Products / OEM Peristaltic Pump / OEM Peristaltic Pump / OEM213 Peristaltic Pump Low Flow Laboratory Analytic
OEM213 Peristaltic Pump Low Flow Laboratory Analytic

OEM213 Peristaltic Pump Low Flow Laboratory Analytic

Low flow OEM Peristaltic Pump 12v 24v for microfluid transferring

- 115ml/min

- Variable speed 150rpm.

- Support multichannel

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

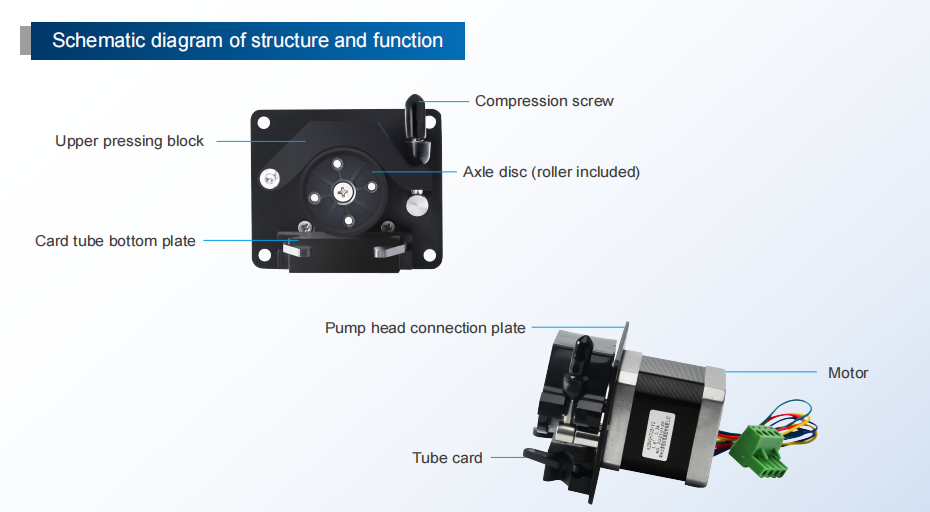

OEM213 peristaltic pump adopts WP120 series pump heads and DC motor. It has excellent microfluid transferring performance. This is a type of low flow rate small peristaltic pump 115ml/min. 12v 24v DC Motor peristaltic pump. The shell is injection-molded with special engineering plastics. Solid structure and high strength. Durable. The card-type fixing screw makes it easier to assemble and disassemble the pump tube. Small pulsation and high stability.


Advantages:

- excellent liquid transferring performance. Solid shell and high strength.

- Dial-type fixing screw, easy load peristaltic pump tubing.

- Small fluid pulsation and during operation, stable flow rate.

- Support match different types motors, 12v 24v DC motors, stepper motor.


Applications:
These small peristaltic pumps are used for low flow rate liquid transmission, such as laboratory sample treatment, medical machinery matching, COD water treatment, environmental sampling, ect.

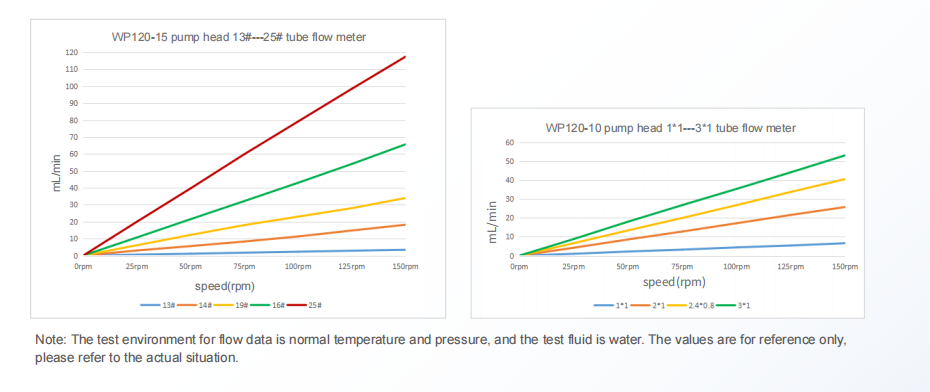

Pump HeadChannelsRollersMax SpeedTube specification(ID*Wall Thickness)mmMax Flow(ml/min)
WP120-151415013#/0.8x1.6115
14#/1.6x1.6
19#/2.4x1.6
16#/3.2x1.6
25#/4.8x1.6
WP120-101 or 241501X153
2X1
2.4X0.8
3X1



None

None

None

None
