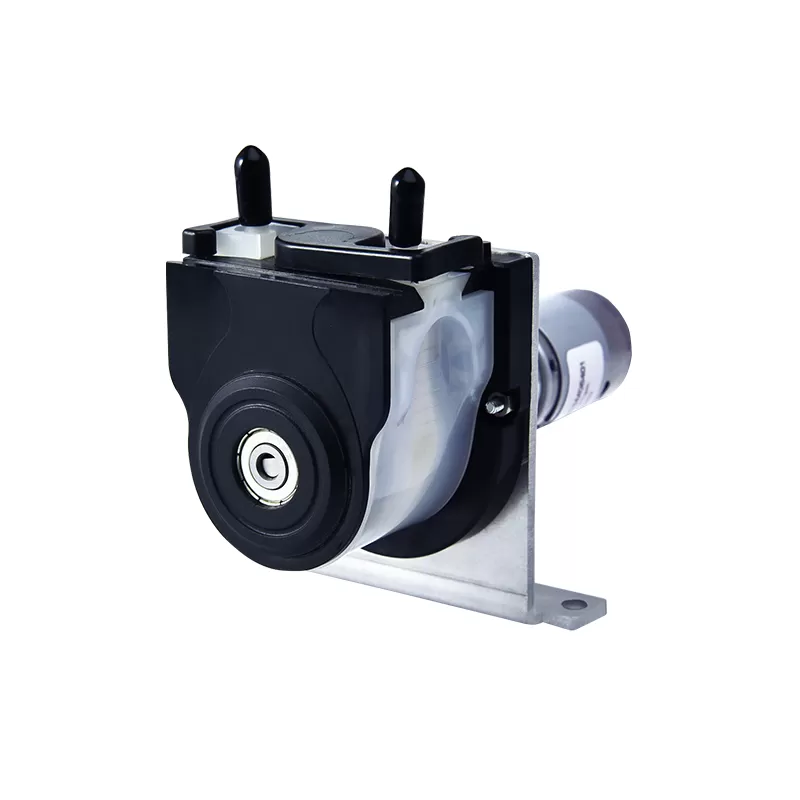

OEM214 Small Peristaltic Pump DC Motor 24v Stepper Motor COD Dosing Pump

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

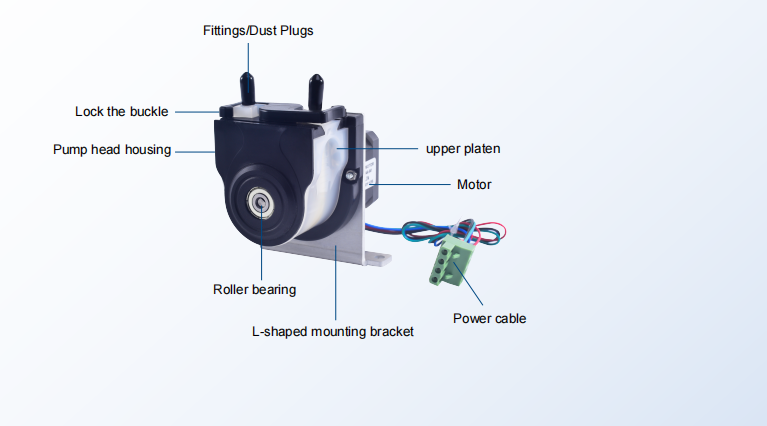

OEM214 small peristaltic pumps adopted WP200 pump head and AC synchronous/DC Geard/Stepper motor options . The flow rates are up to 420mL/min. It is suitable for flow transfers used as the microflow dosing pump. It is suitable for supporting the use of online testing instruments such as COD and CEMS. It employs a flexible pressure tube structure to prolong the service life of the pump tube. This peristaltic pump head offers high precision in liquid transfer.

Features and Benefits:

Adopts special engineering plastic injection molding for the shell, strong and corrosion resistant.

The flexible pressure tubing structure, prolong the service life of the hose

Support the use of online testing instruments such as COD and CEMS

Multi-power configuration, meet different flow requirements

Application:

The typical application of OEM214 peristaltic pump:

- Online monitoring, a waste liquid discharge

- Vending machine

- Self-service laundry room

- COD and CEMS Instrument supporting

OEM214 DC 24v Peristaltic Pump

Pump Head	Channels	Rollers	Rotating Speed (rpm)	Hose Specifications(Id*Wall Thickness)mm	Max Flow(mL/min)
WP200	1	2	10、30、80、175	14# / 1.6X1.6 19# / 2.4X1.6 16# / 3.2X1.6 25# / 4.8X1.6	245

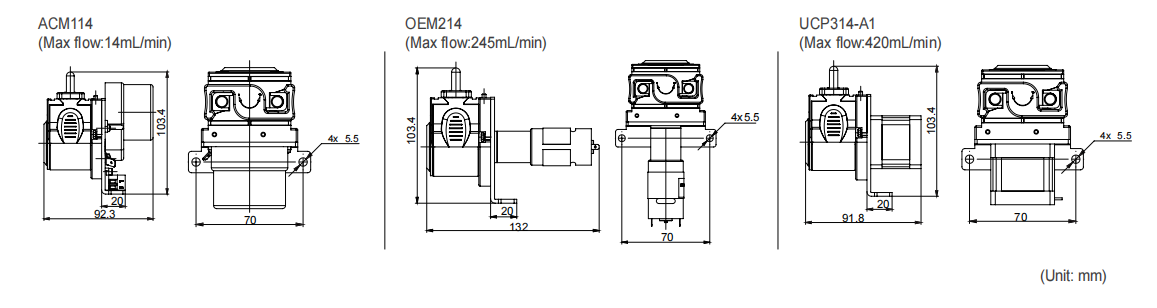

Model	Pump Head	Motor	Voltage	Tube	Max Flow(ml/min)
Model	Pump Head	Motor	Voltage	Tube	1rpm	5rpm	10rpm	30rpm	80rpm	175rpm	0-100rpm(Continuous)	0-300rpm(Continuous)
ACM114	WP200	AC synchronous	220V	14#	0.20	1.0	2.0
				19#	0.40	2.0	4.0
				16#	0.70	3.5	7.0
				25#	1.40	7.0	14.0
OEM214	WP200	DC Geard	DC24V	14#			2.0	6	14	30
				19#			4.0	12	32	70
				16#			7.0	21	56	122
				25#			14.0	42	112	245
UCP314-A1	WP200	Stepper		14#							20	56
				19#							40	120
				16#							70	210
				25#							140	420

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

OEM214 DC 24v Peristaltic Pump

WP200 Pump Head Brochure - Chonry The shell material of OEM220 series peristaltic pump is made of special engineering plastic injection molding

WP200 Production Selection The shell material is injection-molded with special engineering plastics, with strong corrosion resistance
