Peristaltic Pump Head
Home / Products / Peristaltic Pump / Peristaltic Pump Head / KZ Series Peristaltic Pump Head Large Flow Rate 3/4 Rollers
Peristaltic Pump Head Large Flow Rate

KZ Series Peristaltic Pump Head Large Flow Rate 3/4 Rollers

KZ series peristaltic pump heads - Large flow rate

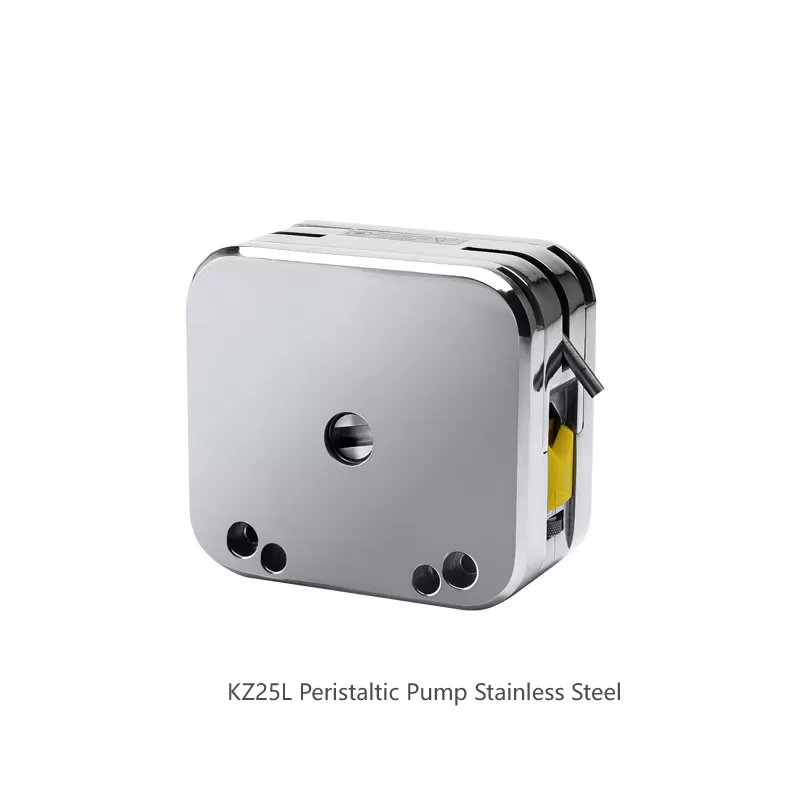

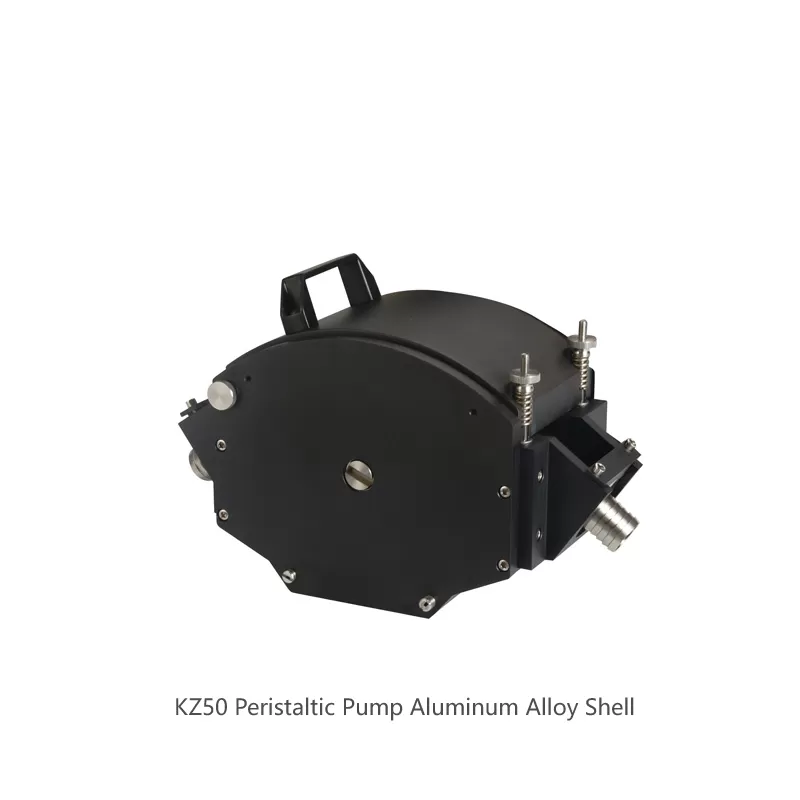

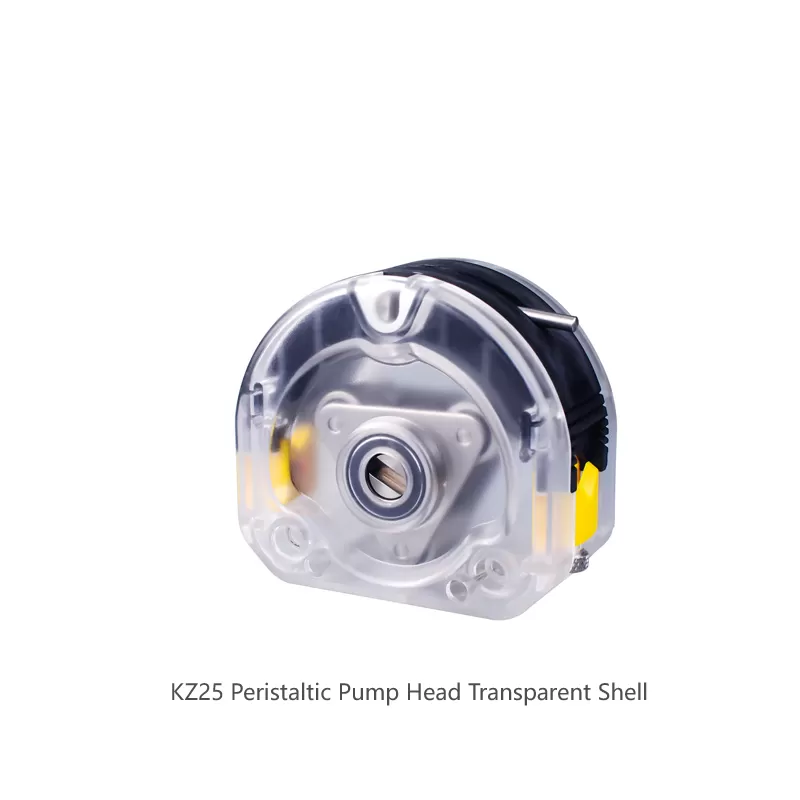

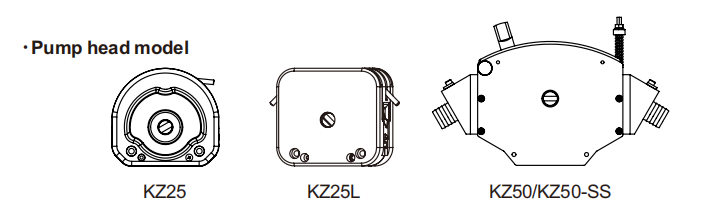

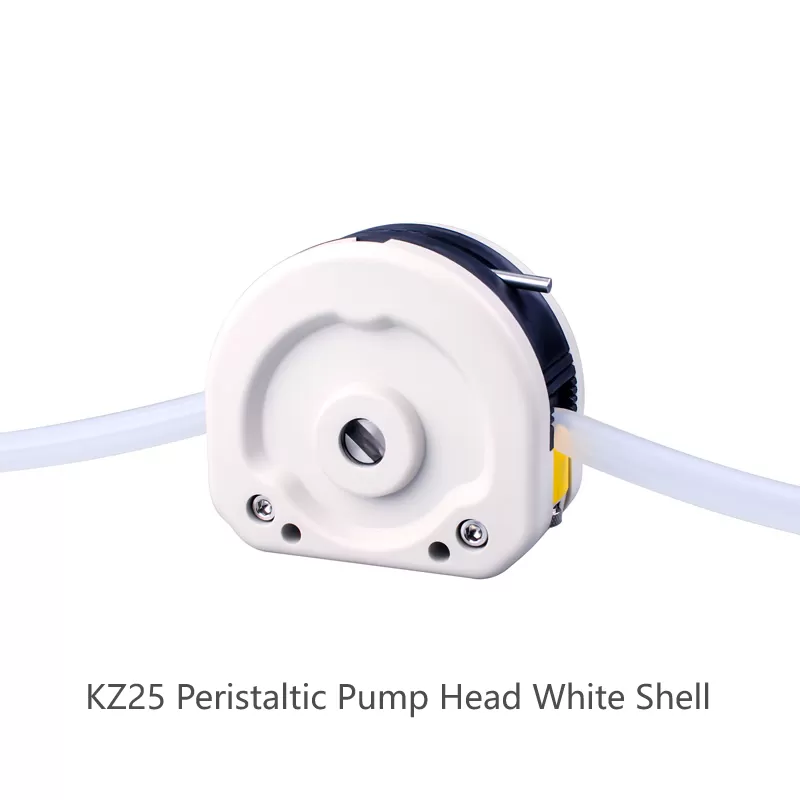

Four pump models: KZ25, KZ25L, KZ50, KZ50-SS

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

KZ series peristaltic pump heads are high volume 33l/min widely used in industrial. It can 4 models: KZ25, KZ25L, KZ50 and KZ50-SS. The KZ series pump head has good rigidity and stable structure and can carry out large-flow and ultra-large-flow liquid transmission. The upper-pressure block is designed separately from the pump head, which is convenient for the installation and maintenance of hoses. Stainless steel rollers are corrosion-resistant and have a long service life. Support OEM, and ODM customized to meet different production needs.

KZ Series Peristaltic Pump Head Large Flow 3 Rollers

KZ Series Peristaltic Pump Head Large Flow 3 Rollers

KZ Series Peristaltic Pump Head Large Flow 3 Rollers


KZ Series Peristaltic Pump Head Large Flow 3 Rollers



ModelChannelRoller MaterialRollersShaft endShell material
KZ251Stainless Steel3Round shaft/flat shaftABS/PPS-White PC/PPS- Transparent
KZ25L13Round shaft/flat shaftAluminum alloy/Stainless Steel
KZ5014Round shaftAluminum alloy
KZ50-SS14Round shaftStainless Steel


Pump headTubeID*Wall thickness (mm)Max SpeedMax Flow(ml/min)
KZ25KZ25L15#4.8*2.46001800
24#6.4*2.46003000
35#7.9*2.46004200
36#9.6*2.46006000
KZ50/KZ50-SS92#25.4*4.80-350
33000


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.


None

KZ Series Pump Heads Brouchre
KZ Series Pump Heads Brouchre

None

None
