LP25-6-H Large Flow Peristaltic Pump Head Supplier

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

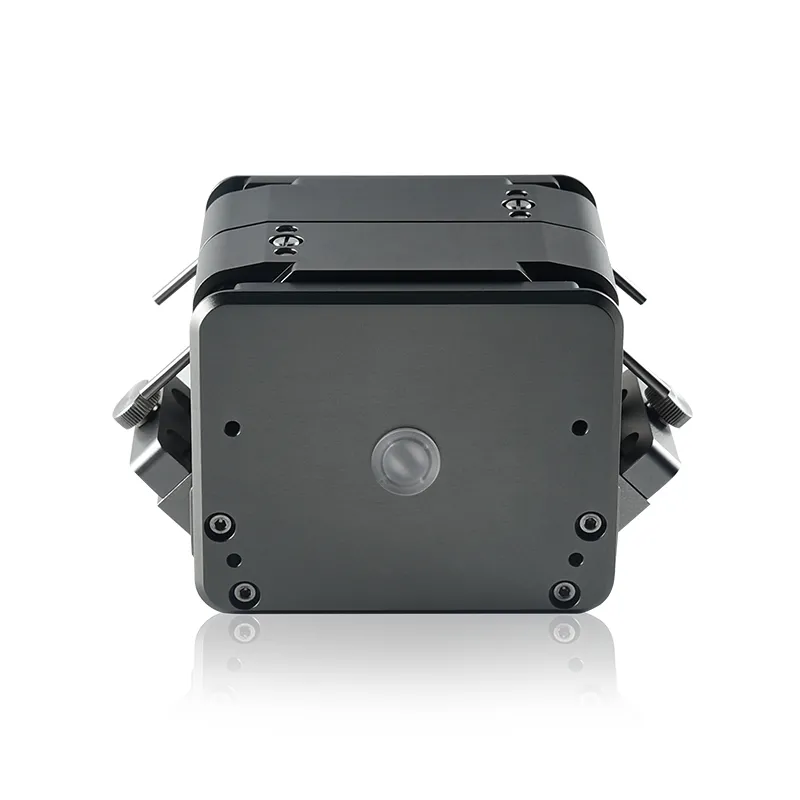

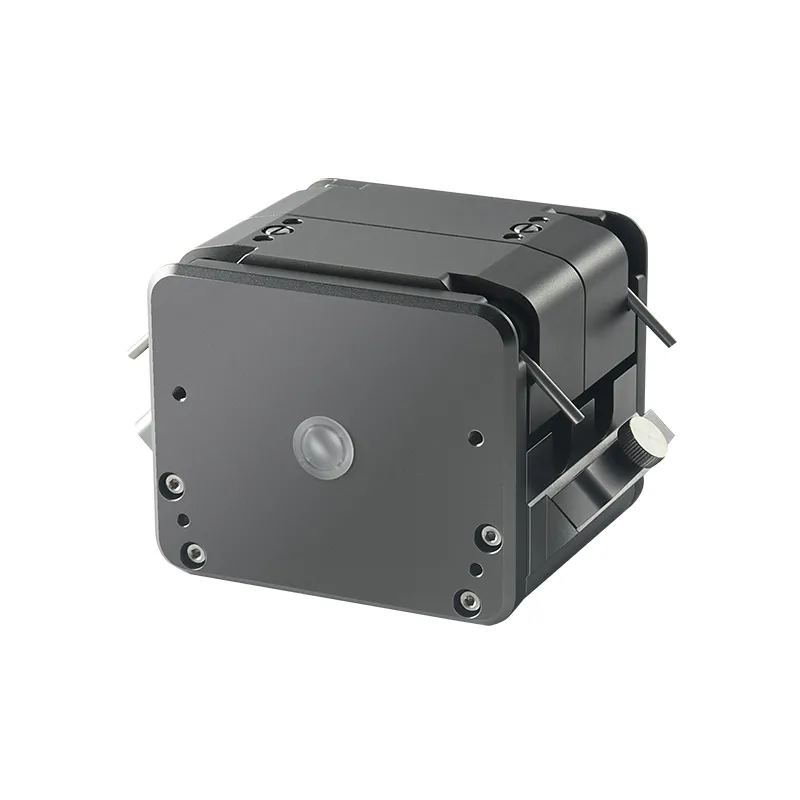

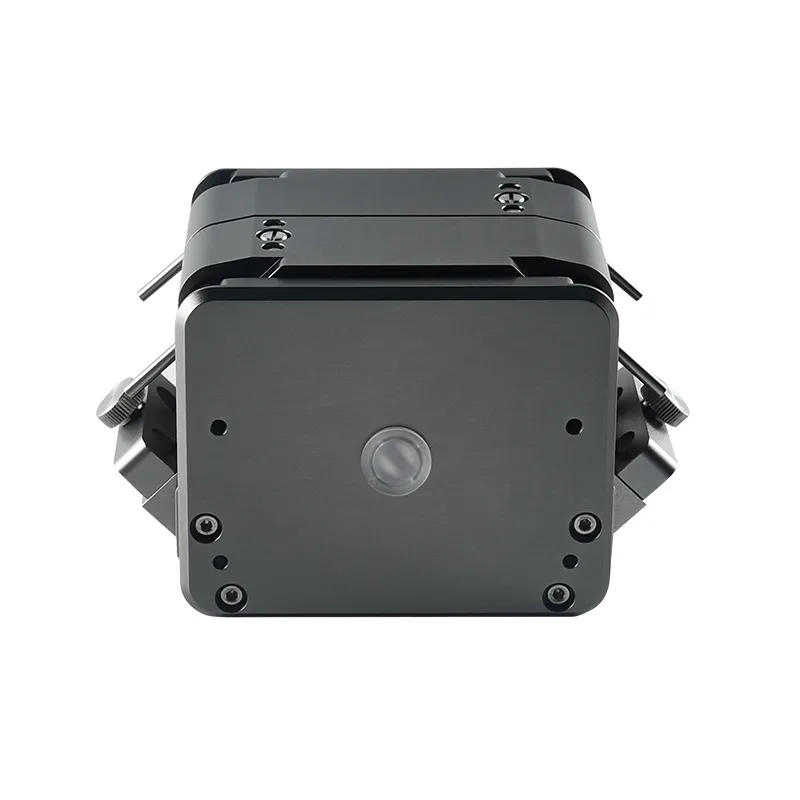

LP25-6-H is a large flow sub-packing pump head. The surface of the shell is anodized for high strength and corrosion resistance. The elastic upper pressure block and self-adaptive pressure tube can effectively reduce the wear of the hose. The dual-channel design has a variety of pressure tube methods. The pump heads can be cascaded to provide a large flow transmission to meet different work requirements.

Features and Benefits:

Solid and durable, stainless steel rollers, high strength and corrosion resistance

Flexible tube loading, dual-channels, reduce the flow pulsation

Detail upgrade, adhesive-backed shock absorption

Y-type hose can be installed reduce fluid pulses,higher flow rate and hose pressure

New technology, the improved upper pressing block processing technology

Suitable for 6 kinds of hoses, and the pump heads can be cascaded

Application:

Liquid transfer or circulation in the laboratory or industrial applications

- Pharmaceutical packaging

- Cell culture

- PH control

- Nutrient transfer

- Biological analysis

- Medical

Pump Head	Channels	Rollers	Roller Material	Shell Material	Tube	Id* Wall Thickness （mm）	Max Speed (rpm)	Max Flow(mL/min)
LP25-6-H	2	6	Stainless Steel	Magnesium aluminum alloy	2.4*2.4	2.4*2.4	350	455
					3.2*2.4	3.2*2.4	350	700
					15#	4.8*2.4	350	1505
					24#	6.4*2.4	350	2345
					35#	7.9*2.4	350	3255
					36#	9.6*2.4	350	4500

Pump Head	Tube	ID (mm)	Wall Thickness (mm)	Max Flow (mL/min)							Adapter Drive
Pump Head	Tube	ID (mm)	Wall Thickness (mm)	50rpm	100rpm	150rpm	200rpm	250rpm	300rpm	350rpm	Adapter Drive
LP25-6-H	2.4*2.4	2.4	2.4	65	130	195	260	325	390	455	BT600FC-S WT600 BG600FC-S SG600FC BG600/FJ-S WG600 UTF02 UTF03 UTF04
	3.2*2.4	3.2	2.4	100	200	300	400	500	600	700
	15#	4.8	2.4	215	430	645	860	1075	1290	1505
	24#	6.4	2.4	335	670	1005	1340	1675	2010	2345
	35#	7.9	2.4	465	930	1395	1860	2325	2790	3255
	36#	9.6	2.4	675	1350	2025	2700	3375	4050	4500

LP25-6-H Peristaltic Pump Head Brochure - Chonry LP25-6-H is a large flow sub-packing pump head. The surface of the shell is anodized for high strength and corrosion resistance.

LP25-6-H Product Selection Used in biological analysis, pharmaceutical packaging, medical and other fields
