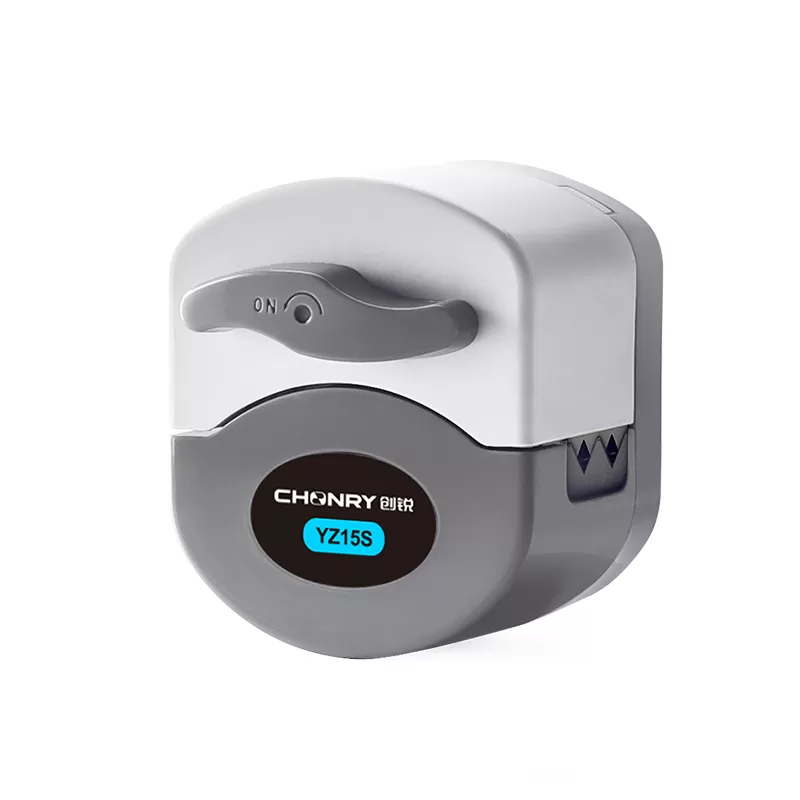

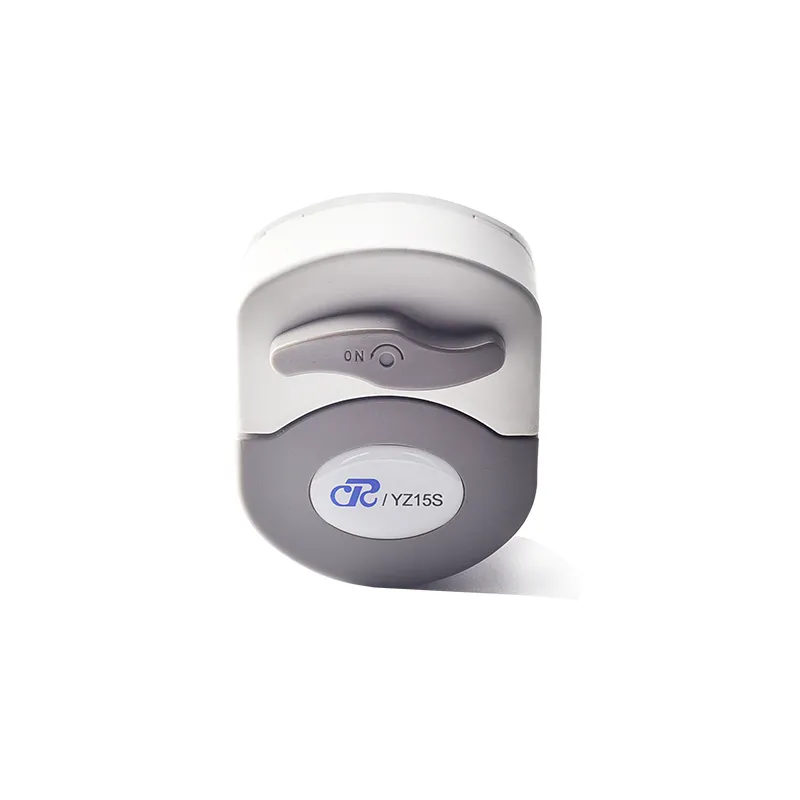

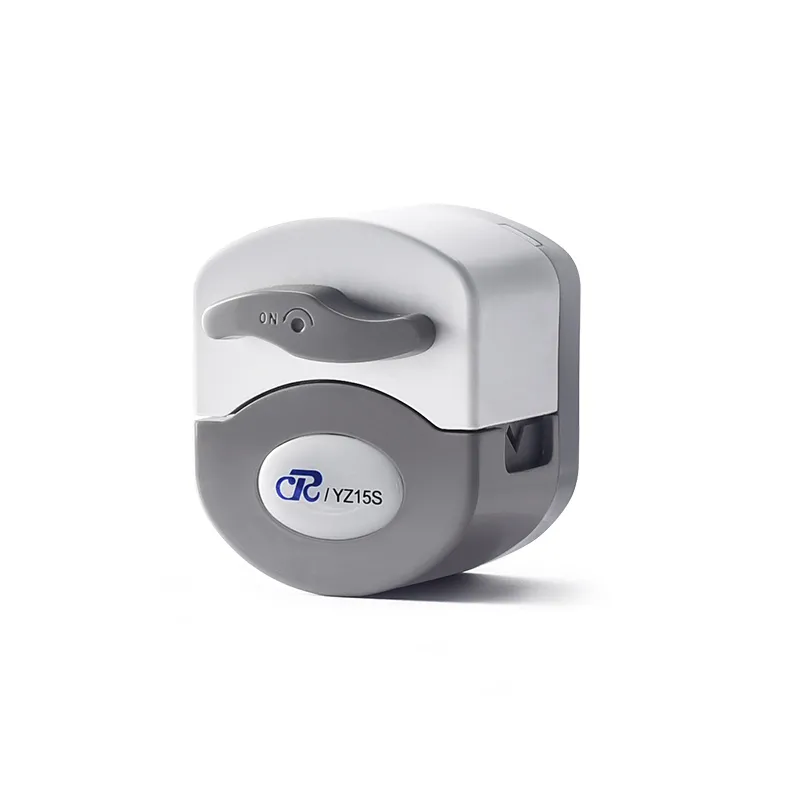

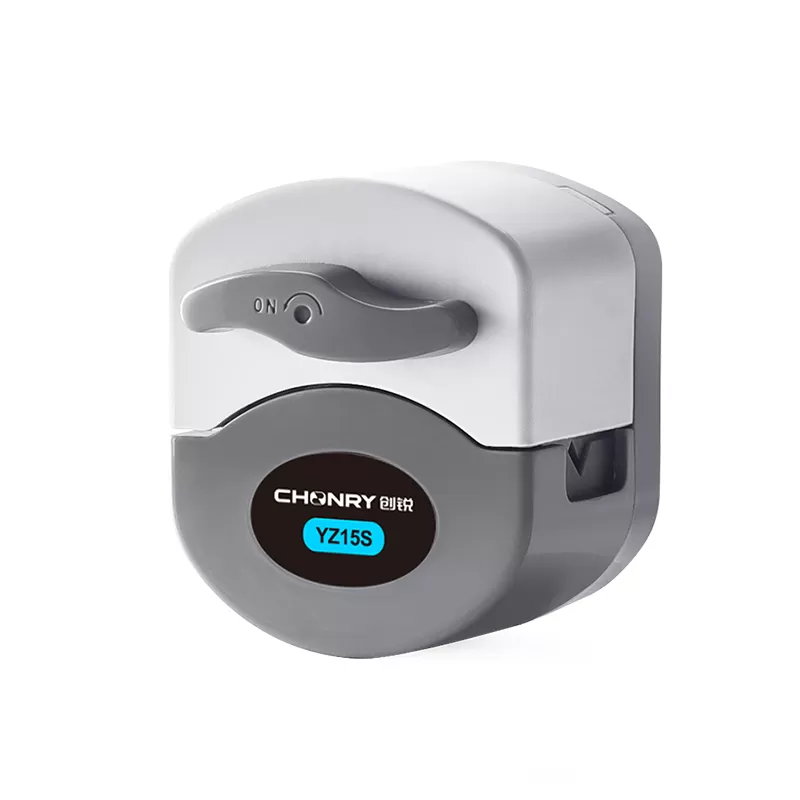

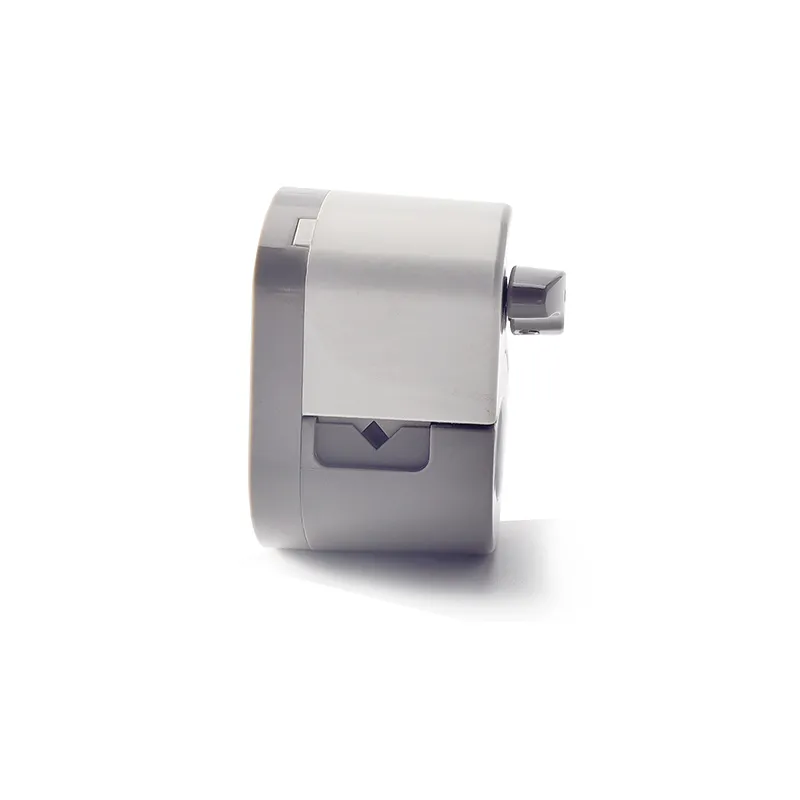

YZ15S series peristaltic heads are designed for liquid dispensing with high precision and small. It is small in size and beautiful in appearance. And the shell is made of special engineering plastics, which improves the service life of the peristaltic pump head. YZ15S series peristaltic head adopts special tubing kits that ensure a stable flow rate and reduce the flow pulsation. Besides, it can be matched with various types of motors and support OEM customization.

Features and Benefits:

Stable and accurate flow, special in small flow

Small size and lightweight, compact structure design

Multi channels for options, single or dual channels are available

Easy hose loading and unloading

Knob switch design, easy to operate

Supporting various types of hoses and motors

Application:

The peristaltic pump is a perfect solution for liquid transfer and has wide applications. YZ15S series peristaltic pump heads can be used in:

- Dental implanters

- Fermenters

- Supporting analytical instruments

- Packaging of diagnostic reagents

YZ15S used for OEM peristaltic pump

OEM Model	Max Flow	Peristaltic Pump Head + Motor
UCP315-A2	380mL/min	YZ15S + 57 Stepper motor
UCP315-A1	380mL/min	YZ15S + 42 Stepper motor
OEM215	380mL/min	YZ15S + DC motor
ACM115	126mL/min	YZ15S + AC motor

YZ15S Series Peristaltic Pump Head

Pump Head	Channels	Rollers	Max Speed (rmp)	Hose Specifications (Id*Wall Thickness) mm	Max Flow (mL/min)
YZ15S-1	1	3	300	13#/0.8X1.6	380
				14#/1.6X1.6
				19#/2.4X1.6
				16#/3.2X1.6
				25#/4.8X1.6
YZ15S-2	2	3	300	13#/0.8X1.6	185/channels
				14#/1.6X1.6
				19#/2.4X1.6
				16#/3.2X1.6

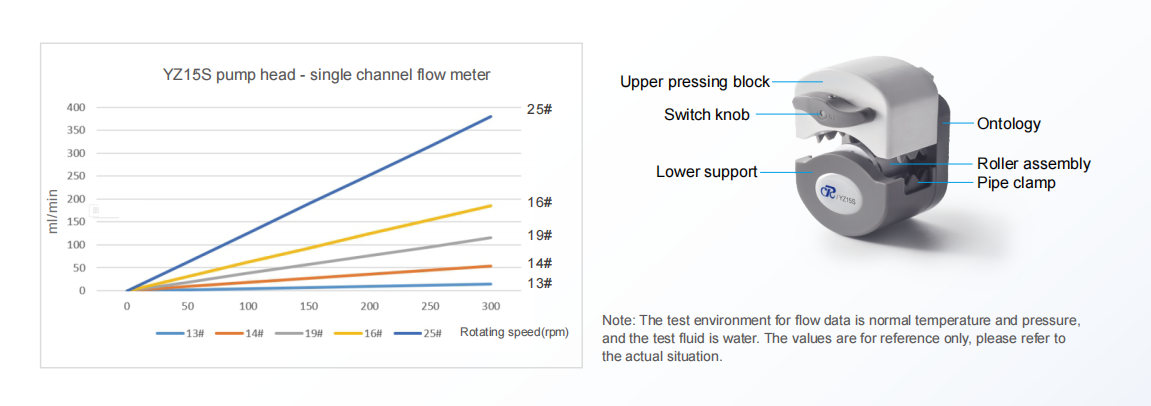

Pump Head	Tube	Specification	Flow rate(mL/min)
Pump Head	Tube	Specification	0-300rpm
YZ15S-1	silicone、PharMedBP	13#/0.8x1.6	0-14.4
		14#/1.6X1.6	0-54
		19#/2.4X1.6	0-116
		16#/3.1X1.6	0-185
		25#/4.8X1.6	0-380
YZ15S-2	silicone、PharMedBP	13#/0.8x1.6	0-14.4
		14#/1.6X1.6	0-54
		19#/2.4X1.6	0-116
		16#/3.1X1.6	0-185

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

YZ15S Production Selection Specializing in small flow, stable flow rate, precise and superior performance

YZ15S Pump Head Brochure - Chonry YZ15S Peristaltic pump head, easy load peristaltic pump tube. Support single and double channels. YZ15S-1: 380mL/min YZ15S-2: 185mL/min/channels. 300rpm. Inquiry now!

None

Baoding Chuangrui Precision Pump Co., Ltd. is located in Hebei of China. Started production of the peristaltic pump in 2010, as the top pump manufacturer in China, we now have 30 series production including peristaltic metering pump, pump head, dispensing filling system, micro gear pumps and industrial peristaltic pumps.

Navigation

Home Products Application Service Support News About Us Contact Us

Phone

+86 15932139831
Email
[email protected]
Add.

2 Floors, East Unit, Building 12, ZOL Innovation Base, Huiyang street, Baoding, Hebei, China.

Model	YZ15S-1, YZ15S-2
Max Flow	YZ15S-1: 380mL/min
Max Flow	YZ15S-2: 185mL/min/channels
Max Speed	300rpm
