UCP Peristaltic Pump
Home / Products / OEM Peristaltic Pump / UCP Peristaltic Pump / UCP301 /YZ1515X- Stepper Motor Peristaltic Pump

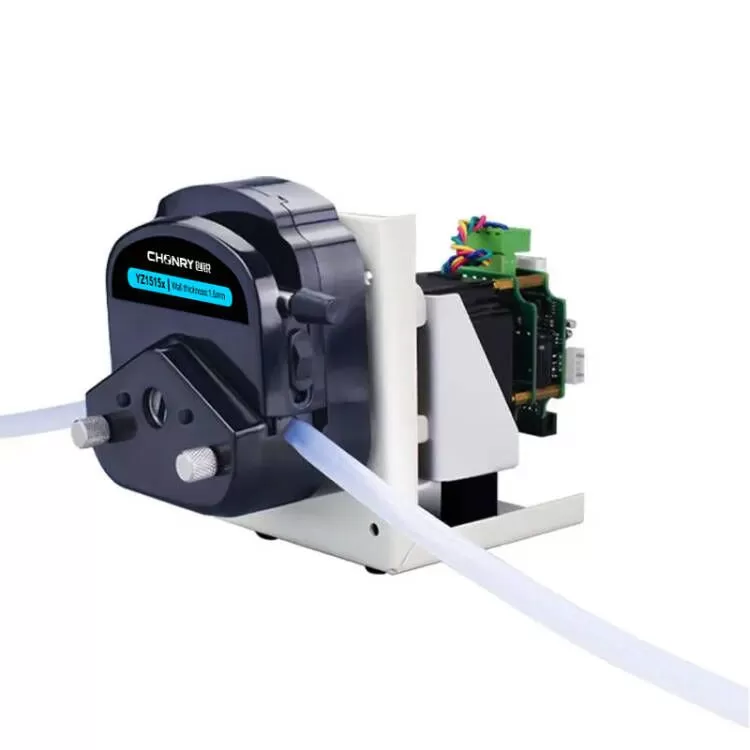

UCP301 /YZ1515X- Stepper Motor Peristaltic Pump

UCP301 /YZ1515X- Stepper Motor Peristaltic Pump

Model

UCP301 /YZ1515X

Max Flow2280mL/min
Max Speed600rpm


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

UCP301 peristaltic pump is designed for customer needs a small size, multi-function, support PLC control of the peristaltic pump, its motor for stepping motor, mainly used in packaging machinery. Support RS485 communication protocol, and (0-5V, 0-10V,4-20mA) start and stop control and direction control. Also supports the RS485 copper whisker protocol.

UCP301 peristaltic pump is divided into stepper motor + pump head + double plate, control the BRAIN end of UCP, its program can be divided into transmission idioms and distribution procedures. Ucp301-B1 has the same transmission program as the MODEL M peristaltic pump, and ucP301-B2 has the same scoring program as model FJ. According to the need to choose the right peristaltic pump.


Applications:


UCP peristaltic pumps are widely used in equipment and instruments such as flue gas analyzers, fermenter feed systems, greenhouse cultivation, hand sanitizer filling, medical equipment, laundry, and vending machines. You can choose different products according to your product flow and demand function.


Model

UCP301

Pump HeadYZ1515
MotorStepper Motor
Max Speed(rpm)600
Max Flow (mL/min)2280mL/min
Control program
Analog control/RS485 communication protocol




Tube ModelWT(mm)ID(mm)Max Flow(ml/min)Speed(rpm)
13#1.60.842600
14#1.61.6162600
19#1.62.4306600
16#1.63.1492600
25#1.64.81020600
17#1.66.41740600
18#1.67.92280600



None

None

None
