UCP Peristaltic Pump
Home / Products / OEM Peristaltic Pump / UCP Peristaltic Pump / UCP316 Small Peristaltic Pump
UCP316 Small Peristaltic Pump

UCP316 Small Peristaltic Pump

ModelUCP316
Max Flow300mL/min
Max Speed1100rpm



Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

UCP316 peristaltic pump adopts a stepper motor. High precision and stable flow. Chonry is the peristaltic pump factory to help you solve the fluid dispensing. Support the OEM.


Features

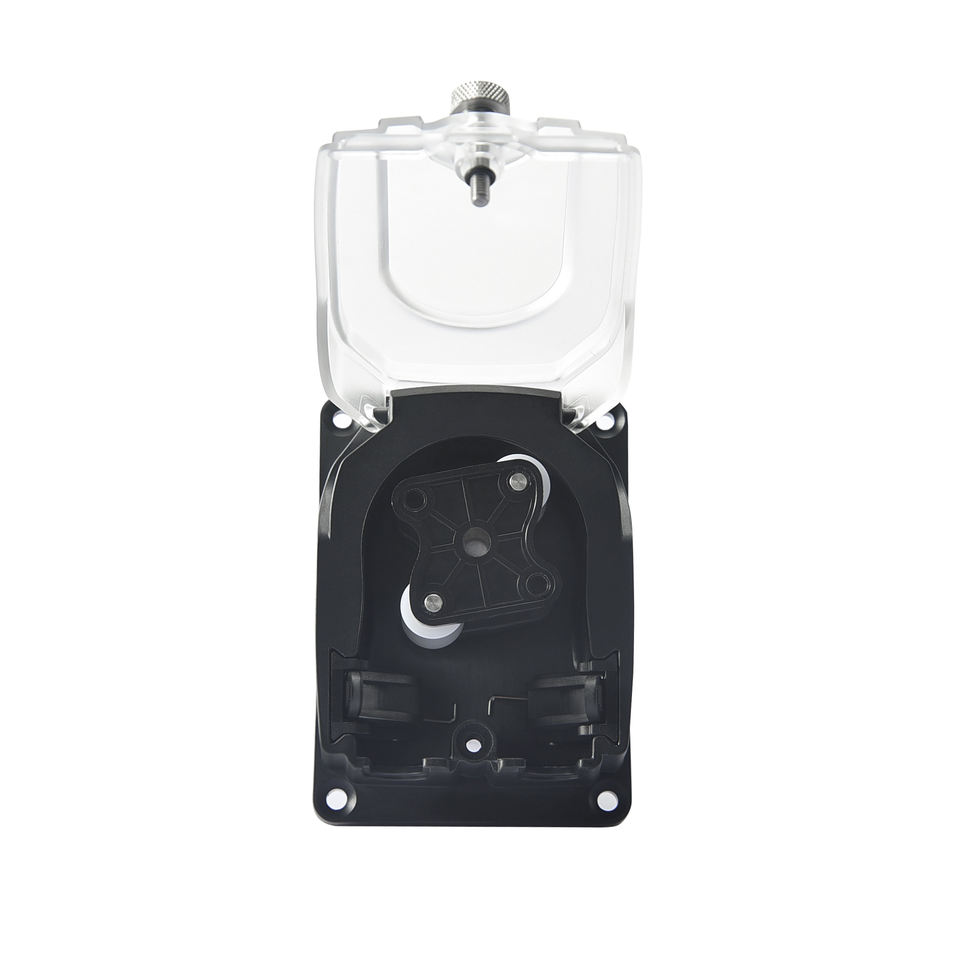

Transparent clamshell design, easy to observe the condition of the hose

The pump head is made of PPS+PC material, corrosion resistant and high strength

Adaptive spring tube card, reduce hose wear and longer life

Small volume and large flow, small size, compact structure

Roller POM material, wear resistance and heat resistance

Suitable for various types of hoses and power configurations

 UCP316 Small Peristaltic Pump

How to install the tube on the peristaltic pump?



1. Open flap

2. The pipe is stuck at one end of the tube

3. Tum the roller clockwise to clamp the hose in

4. Clamp the hose into the pipe clamp at the other end

5. Close the flap and the installation is complete



ModelUCP316
Pump HeadWP310
MotorStepper Motor
Channels1
Rollers2
Max Speed(rpm)300
Max Flow (mL/min)1100mL/min
Tube Specifications13#,14#,19#16#,25#,18#,17#

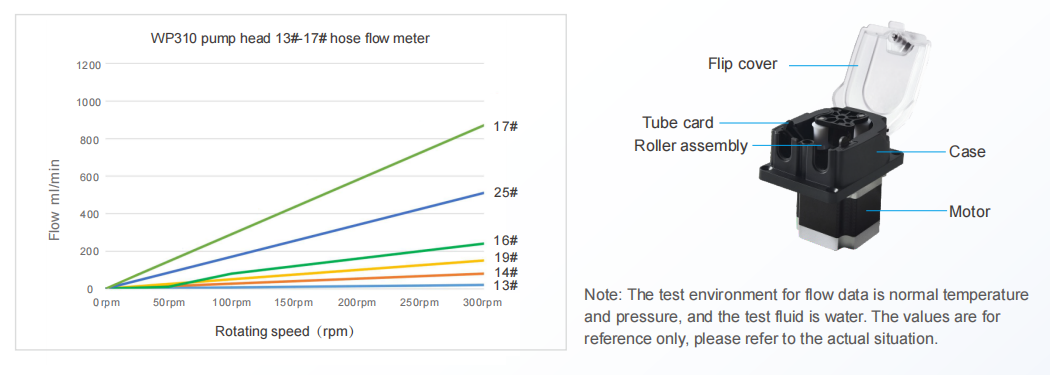

ModelPump HeadMotorMax Speed (rpm)Max Flow (mL/min)
13#14#19#16#25#17#18#
UCP316-A2WP310Stepper Motor30020801502405108701100
UCP316-B1WP310Stepper Motor30020801502405108701100

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water.

The values are for reference only, please refer to the actual situation.



None

None

None
