UCP321 Stepper Motor Small Peristaltic Pump 4.5L/min Factory China

UCP321 Stepper Motor Small Peristaltic Pump 4.5L/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

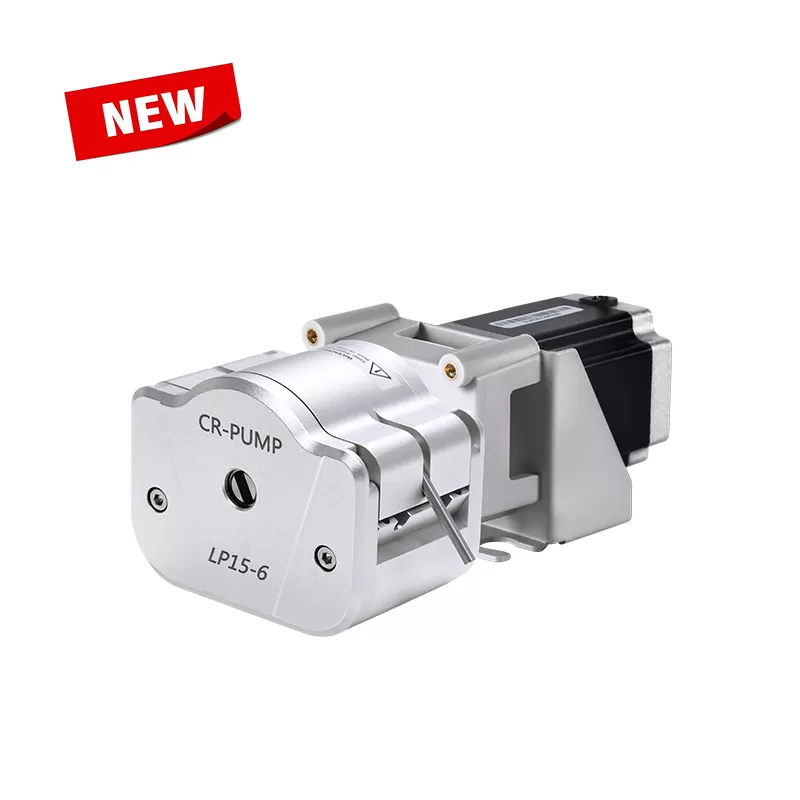

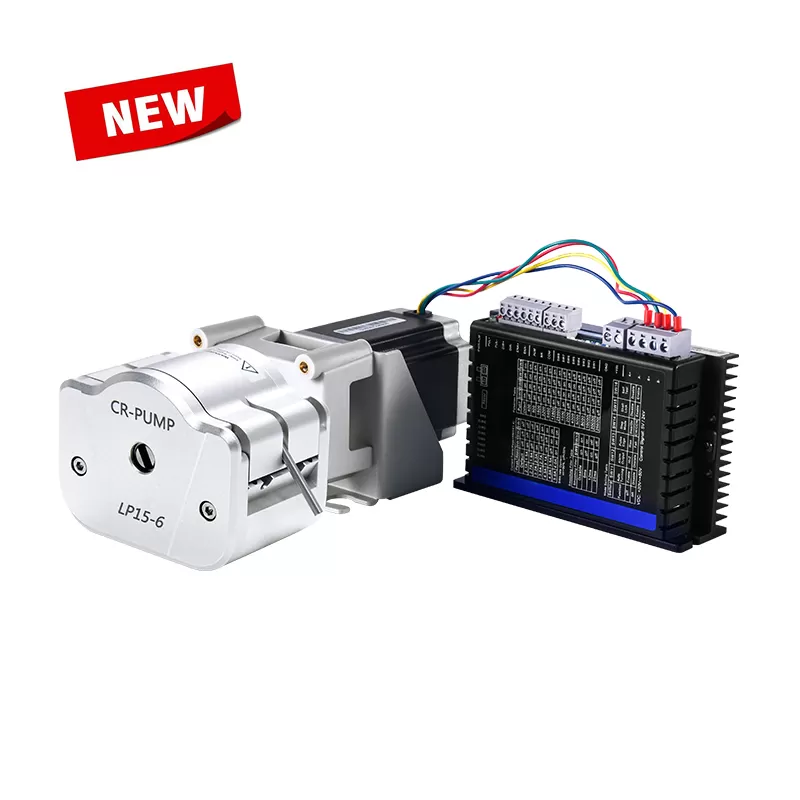

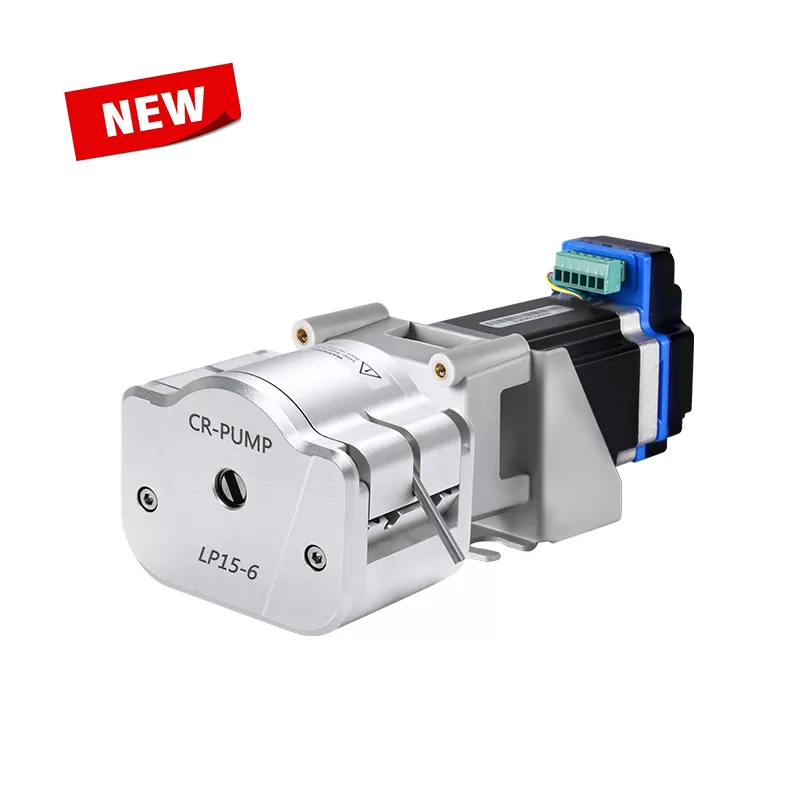

LP15-6 series provides large flow packaging. The shell is made of aluminum alloy, which is high in strength and corrosion-resistant. It adopts a multi-roller design and can be equipped with a "Y" type hose to effectively reduce pulsation, make the transmission more stable, and adapt to hoses of different wall thicknesses. It has a wide flow range and is more practical.

Pump head	LP15-6
Channels	2
Rollers	6
Applicable hose	13#、14#、19#、16#、25#、17#、18#
Max flow	4560mL/min
Max speed	600rpm
Matching motor	57 long stepper motor
Number of phases	2
Step angle(°)	1.8
Rated phase voltage（V）	1.62
Rated phase current（A）	3.0
Phase resistance（Ω）	0.54
Phase inductance（mH）	1.8
Holding torque（kg·cm）	15
Insulation level	B

Pump head	Tube	ID*wall thickness(mm)	Max flow(mL/min)	Max speed(rpm)
LP15-6	13#	0.8*1.6	84	600
	14#	1.6*1.6	324	600
	19#	2.4*1.6	612	600
	16#	3.1*1.6	984	600
	25#	4.8*1.6	2040	600
	17#	6.4*1.6	3480	600
	18#	7.9*1.6	4560	600

Test Conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not greater than 80%, altitude is not greater than 1500 metres above sea level

2. The test is measured using a straight-through pipe with a suction range of 0.5 m, a head of no more than 0.5 m, and a total pipe length of no more than 1.5 m (inlet end + outlet end + test end)

The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water.The data is for reference only, please refer to the actual situation.
