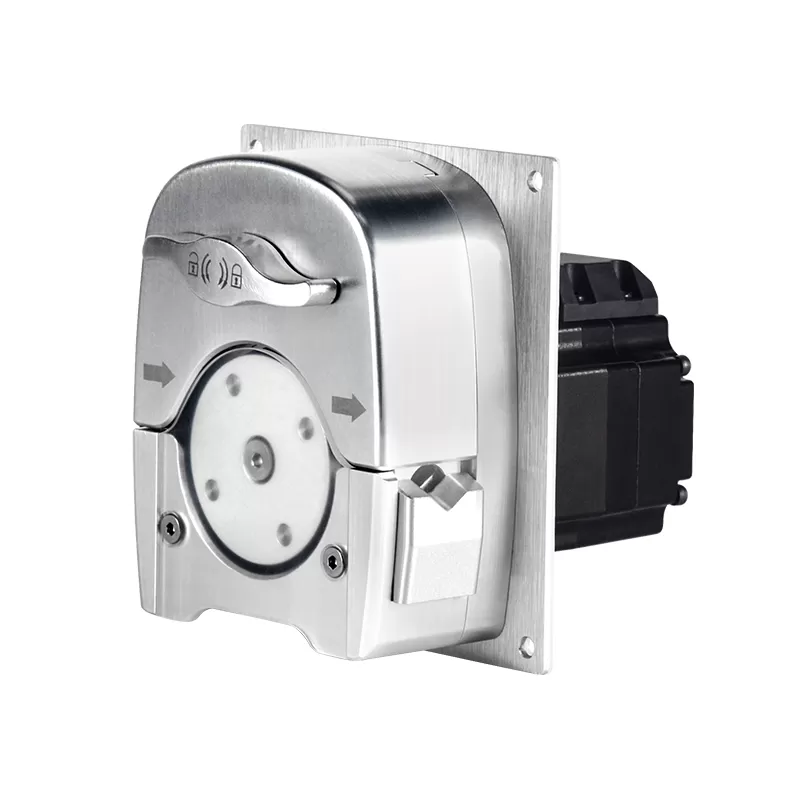

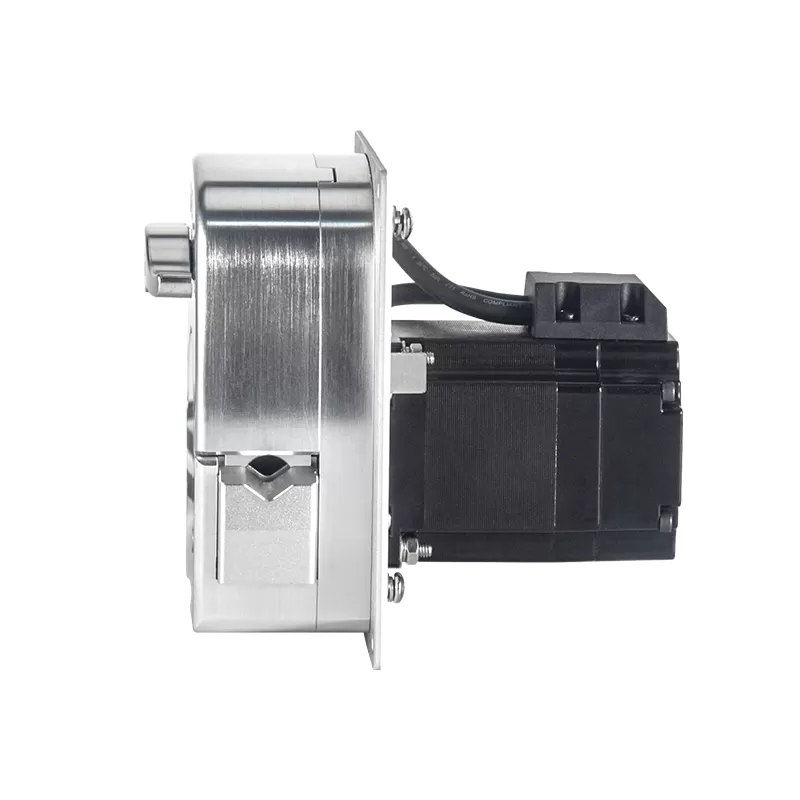

UCP328 Peristaltic Pump OEM RF Ablation System Cooled Pump 6 Bar

- UCP328 peristaltic pump is OEM pump integrated into a radiofrequency (RF) ablation system as a part of a cooled pump. Used in medical devices.

- The flow rate is up to 330ml/min. The max pressure is 6 bar.

- 4 rollers. Stainless steel. Durable and long life.

- High reliability, low wear and simple integration.

Inquire Now

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

UCP328 small peristaltic pump adopts a stepper motor and high-pressure pump head GY1514. The output pressure is up to 6 bar. This OEM peristaltic pump features high reliability, low wear and simple integration. This OEM peristaltic pumps are often integrated into the cardiac ablation system as a cooled pump.The shell of the pump head is made of aluminum alloy and the roller is made of stainless steel. UCP328 stepper motor high-pressure peristaltic pump is wear-resistant and corrosion-resistant. It has a long life, easy to operate and is convenient for loading and unloading tubes. Perfect performance of liquid handling. The max flow rate can reach 330ml/min.

Advantages:

- High reliability, ease of operation and simple integration.

- Low noise levels and precise control.

- Good mechanical compatibility

- Provide continuously liquid flow, high reliability.

- UCP328 peristaltic pump OEM is often used as the irrigation pump sucks the saline solution and conveys it into the catheter.

Model	UCP328 Stepper Motor Peristaltic Pump High Pressure 6 Bar
Pump Head	GY1514
Max Speed	450rpm
Max Flow	330ml/min
Channel	1
Roller	4
Tube	Tygon E3603(14#,16#)
Roller Material	Stainless Steel
Available Motors	57 stepper closed loop motor
Weight	1.54kg

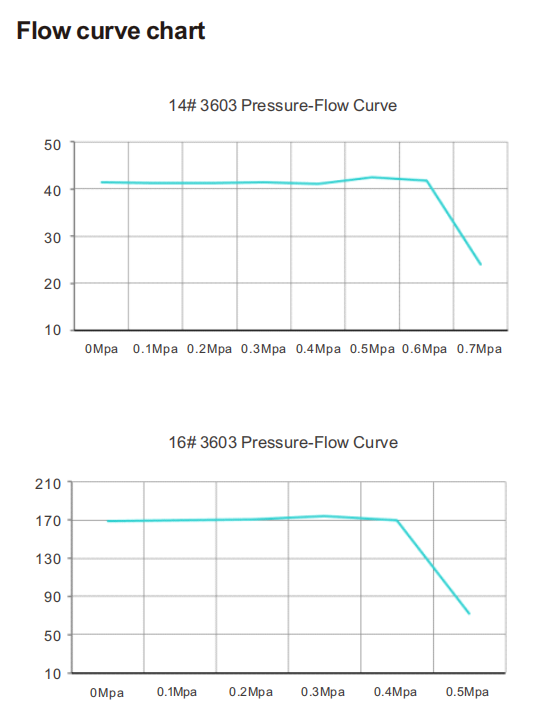

Output Pressure	>6bar (14#), >4bar(16#) [Measured at 200rpm]
Working Environment	Ambient temperature 0-40℃, relative < 80%
Installation Size	98x46x113.5

Pump Head	Tube	ID*Wall thickness (mm)	Max Speed(rpm)	Max Flow(ml/min)	Applicable tubes
GY1514	14#	1.6*4.8	450	90	Tygon E3603
GY1514	16#	3.2*6.4	450	330	Tygon E3603

Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not greater than 80%, altitude is not greater than 1500 meters above sea level.

2. The test is measured using a straight-through pipe with a suction lift of 0.5 m, ahead of no more than 0.5 m, and a total pipe length of no more than 1.5 m (inlet end+outlet end + test end)

The above data test environment for normal temperature and pressure, the test fluid is water, and the data is for reference only, please refer to the actual standard.

Brochure - UCP328 Peristaltic Pump OEM RF Ablation System Cooled Pump
